1985 Kawasaki Ninja® Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

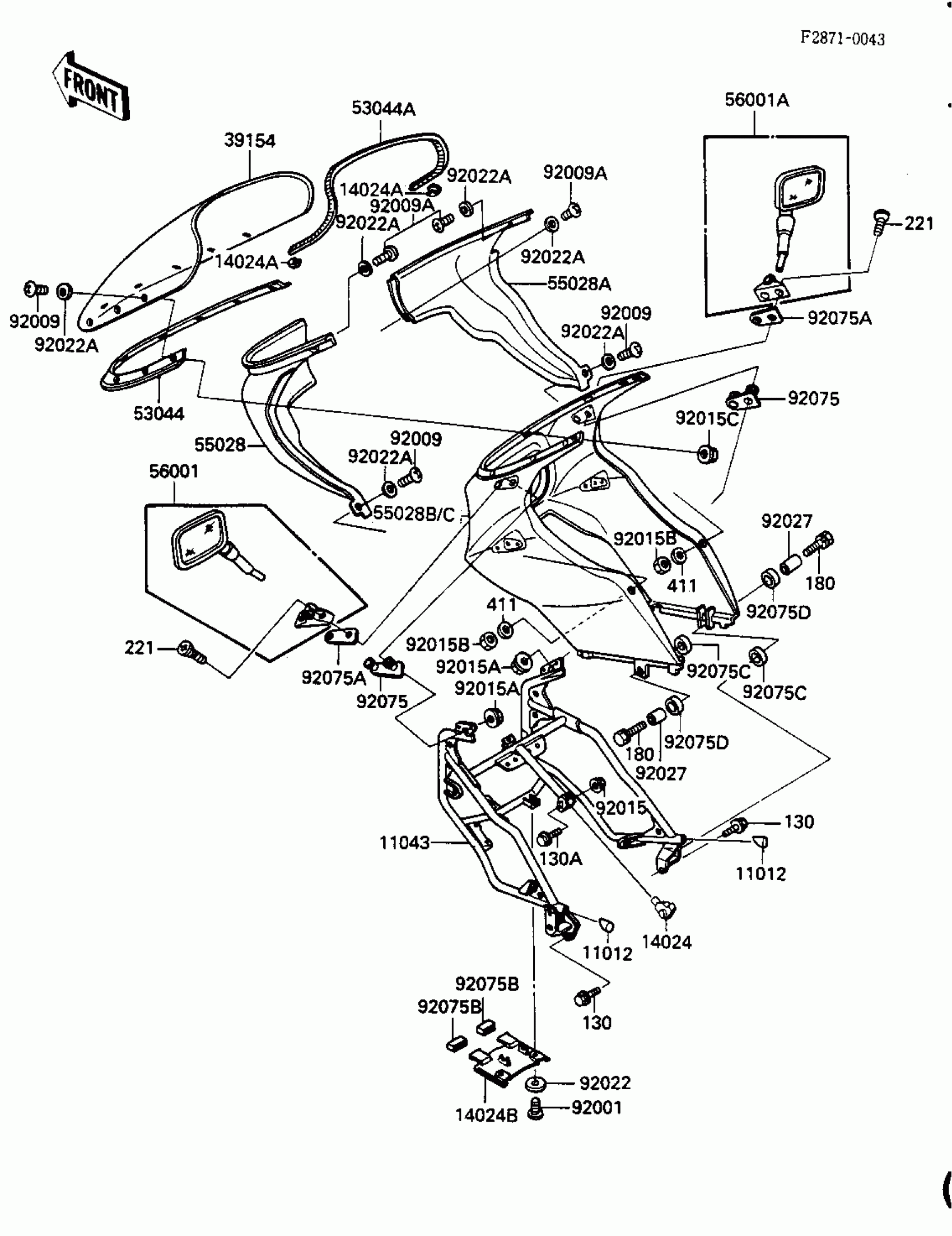

1985 Kawasaki Ninja® Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,COWLING BRACKET

11012-1401

1
Out of stock

11043

BRACKET,COWLING BODY

11043-1452

1
Out of stock

14024

COVER,COWLING BRACKET

14025-1718

1
Out of stock

14024A

COVER,TRIM END

14025-1756

1
Out of stock

14024B

COVER

14025-1823

1
Out of stock

39154

WINDSHIELD

39154-1091

1
Out of stock

53044

TRIM,WINDSHIELD

53044-1119

1
Out of stock

53044A

TRIM,WINDSHIELD

53044-1120

1
Out of stock

55028

COWLING,UPP,INNER,LH

55028-1066

1
Out of stock

55028A

COWLING,UPP,INNER,RH

55028-5068

1
Out of stock

55028B

COWLING,UPP,OUTER,F.R

55028-5049-B1

1
Out of stock

55028C

COWLING,UPP,OUTER,L.P.BLU (Can

55028-5051-M4

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1219

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1220

1
Out of stock

92001

BOLT,6X14

92001-1782

1
Out of stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,5X10

92009-1651

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015B

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015C

NUT,5MM,COWLING

92015-1343

1
Out of stock

92022

WASHER,6.5X16X2

92022-1342

1
Out of stock

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92075

DAMPER,MIRROR

92075-1492

1
Out of stock

92075A

DAMPER,MIRROR

92075-1500

1
Out of stock

92075B

DAMPER,COWLING

92075-1602

1
Out of stock

92075C

RUBBER,FENDER COVER

92075-174

1
Out of stock

92075D

DAMPER,FEMALE

92075-175

1
Out of stock

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

130A

BOLT-FLANGED,8X30

130J0830

1
Out of stock

180

BOLT-UPSET-WS,6X25

180B0625

1
Out of stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock
