1985 Kawasaki Ninja® Battery Case/electro Bracket Diagram

← All diagrams

Find the part on the Battery Case/electro Bracket diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

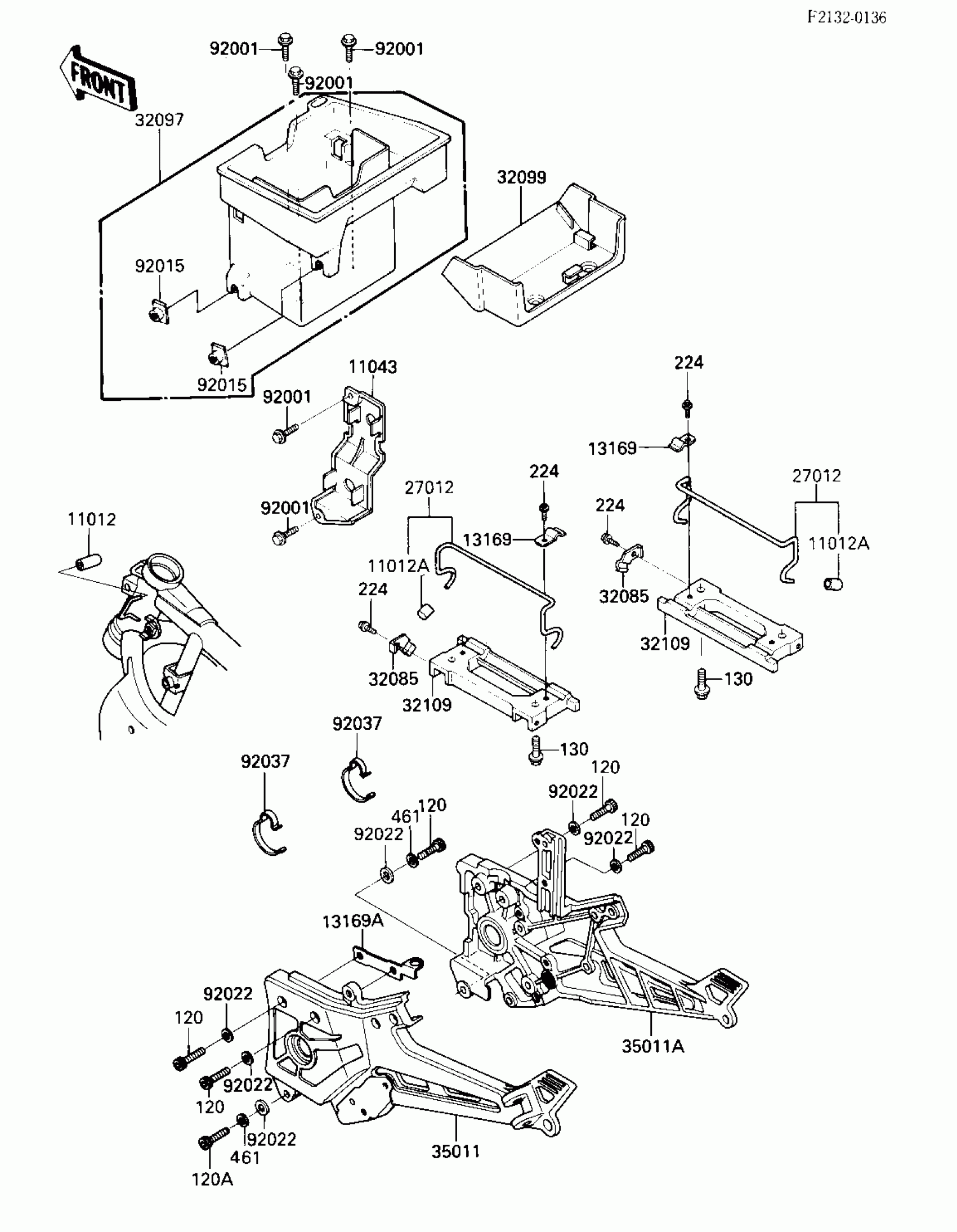

1985 Kawasaki Ninja® Battery Case/electro Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1

$4.39

In stock

11043

BRACKET,ELECTRIC

11043-1419

1
Out of stock

13169

PLATE,GRIP

13169-1760

1

$10.24

In stock

13169A

PLATE,STAY,UPP,LH

13169-1928

1
Out of stock

27012

HOOK,BUNGEE CORD

27012-1311

1
Out of stock

32085

STOPPER,HOOK

32085-1187

1

$11.41

In stock

32097

CASE-BATTERY

32097-1102

1
Out of stock

32099

CASE,SEAT COVER

32099-1064

1

$21.95

In stock

32109

GRIP-FRAME

32109-1108

1

$87.65

In stock

35011

STAY,MUFFLER,LH

35011-1214

1

$457.54

In stock

35011A

STAY,MUFFLER,RH

35011-1215

1

$457.54

In stock

92001

BOLT,6X12

92001-1771

1

$3.53

In stock

92015

NUT,FLANGED,6MM

92015-1303

1
Out of stock

92022

WASHER,8.5X16X2.5

92022-1595

1

$1.98

In stock

92037

CLAMP,HOSE

92037-1552

1

$9.63

In stock

120

BOLT-SOCKET,8X35

120P0835

1
Out of stock

120A

BOLT,ALLEN,8X45

120P0845

1
Out of stock

130

BOLT-FLANGED,8X14

130G0814

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0508

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
