1985 Kawasaki Ninja® Balancer/starter Clutch Diagram

← All diagrams

Find the part on the Balancer/starter Clutch diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

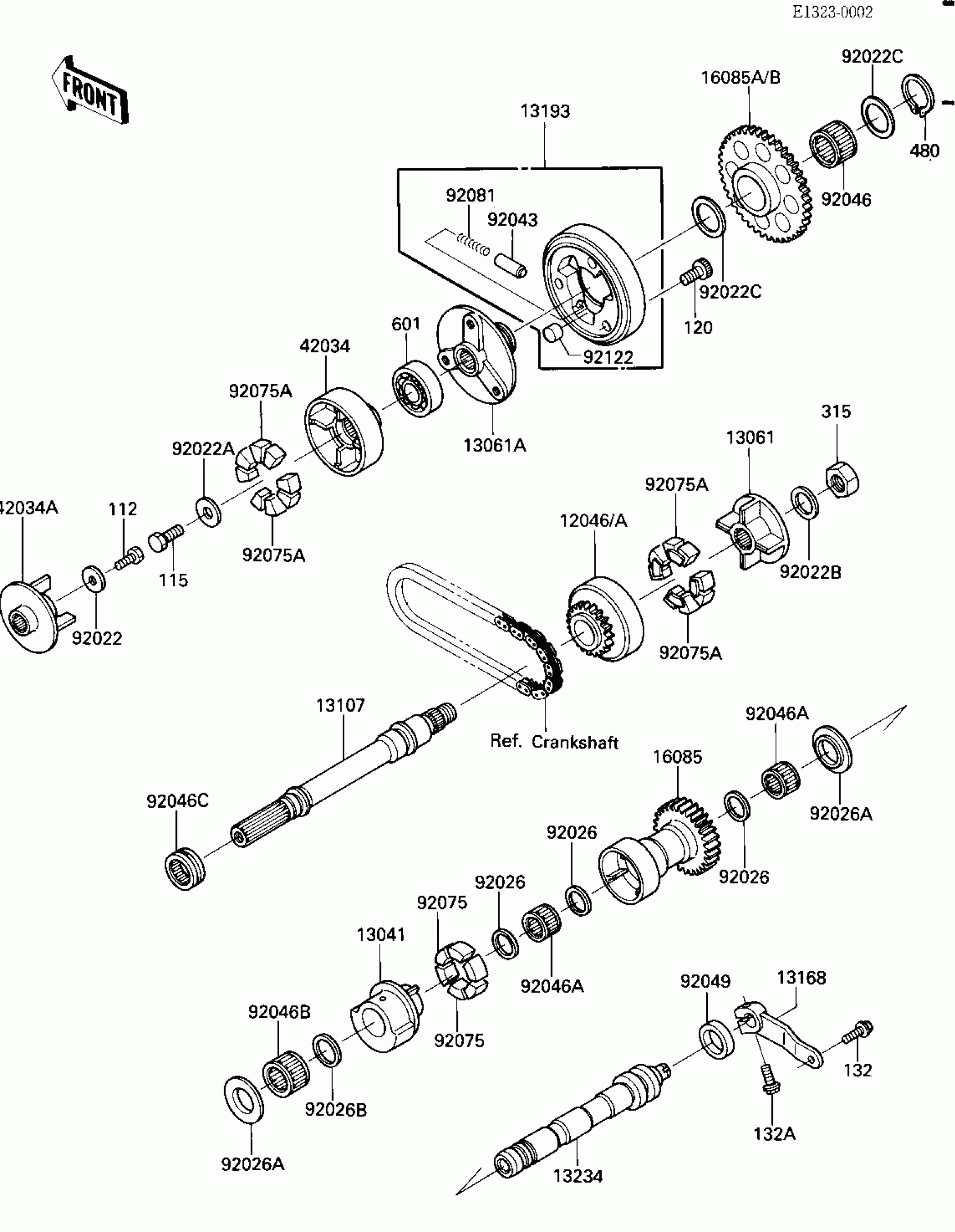

1985 Kawasaki Ninja® Balancer/starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046A

SPROCKET,GENERATOR

12046-1068

1
Out of stock

13041

BALANCER

13041-1054

1
Out of stock

13061

BOSS,SPROCKET

13061-1111

1
Out of stock

13061A

BOSS,COUPLING

13061-1112

1
Out of stock

13107

SHAFT

13107-1108

1

$209.04

In stock

13168

LEVER,BALANCER

13168-1236

1

$33.19

In stock

13193

CLUTCH-ASSY-ONEWAY

13193-1052

1
Out of stock

13234

SHAFT-COMP,BALANCER

13234-1052

1
Out of stock

16085

GEAR,BALANCER

16085-1242

1

$179.01

In stock

16085B

GEAR,ONEWAY CLUTCH

16085-1118

1
Out of stock

42034

COUPLING

42034-1055

1

$84.97

In stock

42034A

COUPLING

42034-1056

1

$77.21

In stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92022A

WASHER,8X22X3

92022-1518

1

$3.95

In stock

92022B

WASHER,16X26X2

92022-1519

1

$4.90

In stock

92022C

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92026

1

$5.61

In stock

92026A

SPACER,T=1.5

92026-1214

1

$41.65

In stock

92026B

SPACER,21.3X26X1

92026-1223

1

$7.47

In stock

92043

PIN

92043-087

1

$10.11

In stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92046A

1

$20.42

In stock

92046B

1

$17.63

In stock

92046C

BEARING-NEEDLE,RNA4903

92046-1109

1
Out of stock

92049

SEAL-OIL,S192705

92049-1174

1
Out of stock

92075

DAMPER,BALANCER

92075-1590

1

$5.37

In stock

92075A

DAMPER,COUPLING

92075-1790

1

$9.29

In stock

92081

SPRING

92081-110

1

$3.78

In stock

92122

ROLLER,15X13

92122-004

1

$8.77

In stock

112

BOLT-UPSET,6X16

112G0616

1
Out of stock

115

BOLT,8X20

115G0820

1
Out of stock

120

BOLT-SOCKET,8X12

120P0812

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

315

NUT-HEX-FINE

315G1600

1
Out of stock

480

1

$1.71

In stock

601

1

$11.12

In stock
