2021 Kawasaki Ninja® 400 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

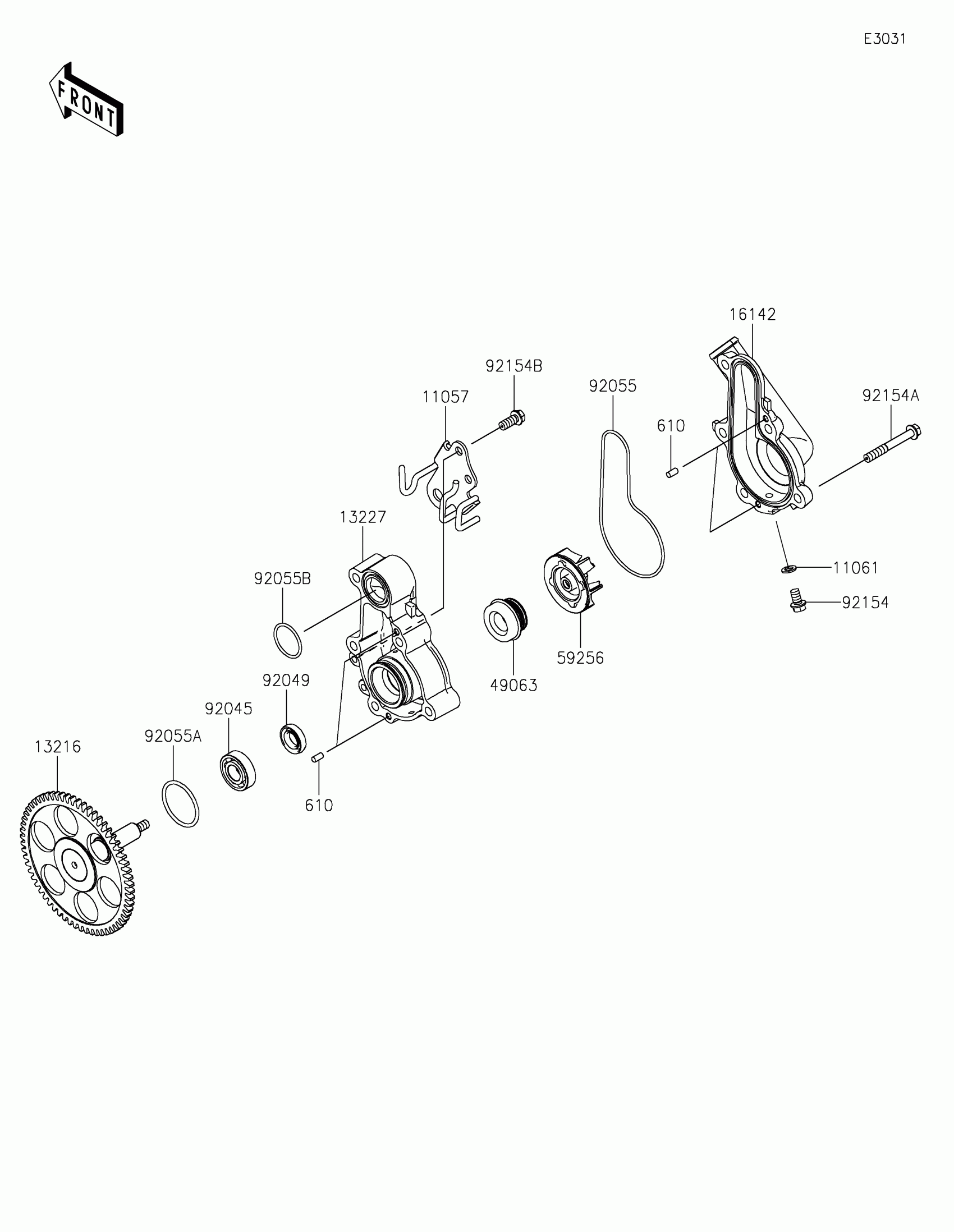

2021 Kawasaki Ninja® 400 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1257

1
Out of stock

11061

GASKET,DRAIN

11061-0875

1

$4.44

In stock

13216

1

$239.68

In stock

13227

HOUSING

13227-0040

1

$79.04

In stock

16142

COVER-PUMP,WATER

16142-0757

1

$66.67

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0554

1

$22.05

In stock

92045

BEARING-BALL

92045-0067

1
Out of stock

92049

SEAL-OIL,12X22X5

92049-0783

1
Out of stock

92055

RING-O

92055-0889

1

$10.83

In stock

92055A

RING-O,31.20X2.4

92055-0896

1

$1.47

In stock

92055B

RING-O,23.3X1.9

92055-1555

1

$2.27

In stock

92154

BOLT,FLANGED,6X10

92154-2344

1

$0.88

In stock

92154A

BOLT,FLANGED,6X45

92154-2789

1

$1.47

In stock

92154B

BOLT,FLANGED,6X14

92154-2838

1

$0.88

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
