2021 Kawasaki Ninja® 400 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

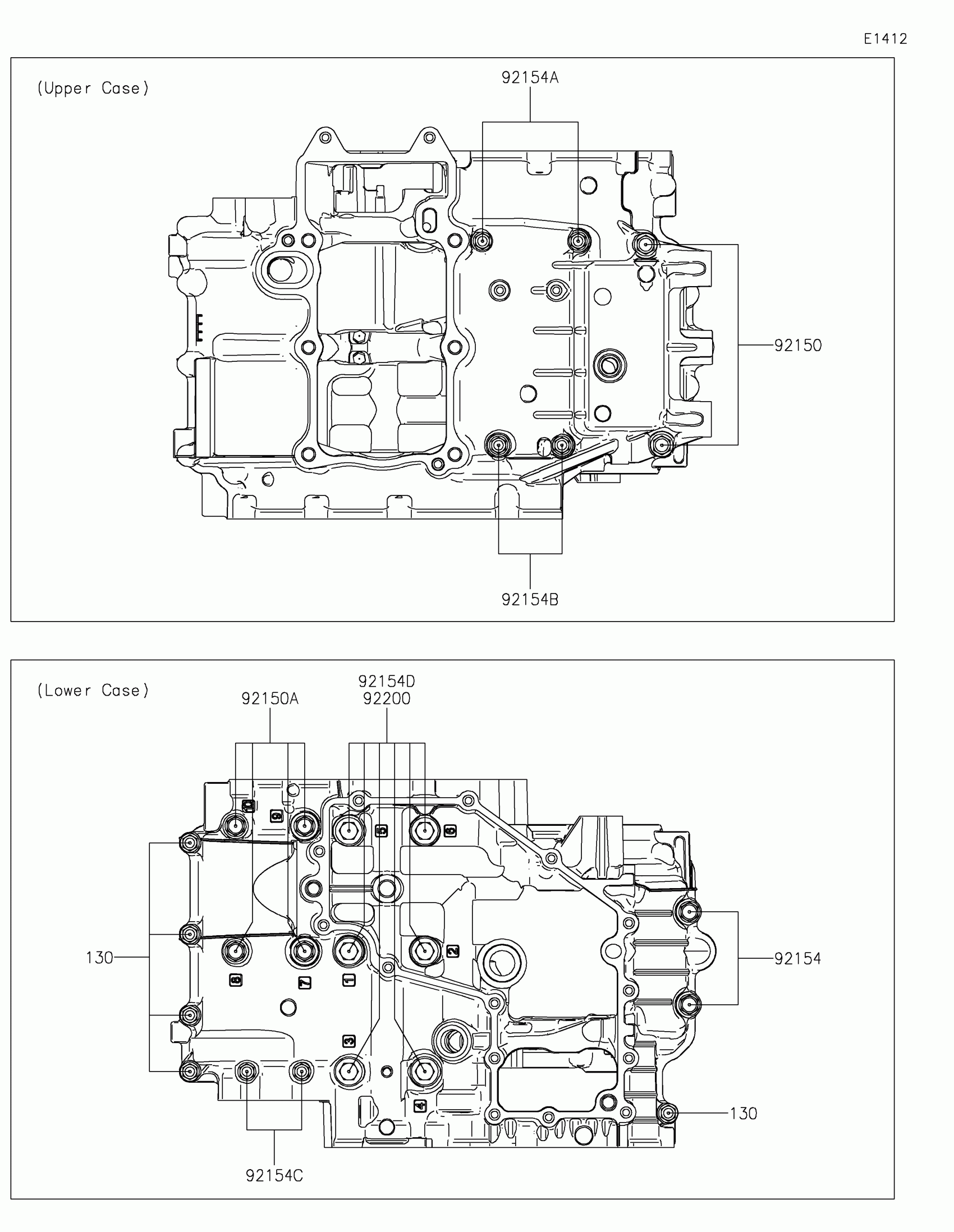

2021 Kawasaki Ninja® 400 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,8X80

92150-1162

1

$5.75

In stock

92150A

BOLT,8X70

92150-1483

1

$7.36

In stock

92154

BOLT,FLANGED,8X40

92154-0992

1

$2.44

In stock

92154A

BOLT,FLANGED,6X72

92154-2679

1

$1.27

In stock

92154B

BOLT,FLANGED,6X52

92154-2680

1

$1.27

In stock

92154C

BOLT,FLANGED,6X76

92154-2681

1

$1.47

In stock

92154D

BOLT,FLANGED,9X105

92154-2986

1

$7.14

In stock

92200

WASHER,9.2X19X2.3

92200-0115

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock
