2021 Kawasaki Ninja® 400 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

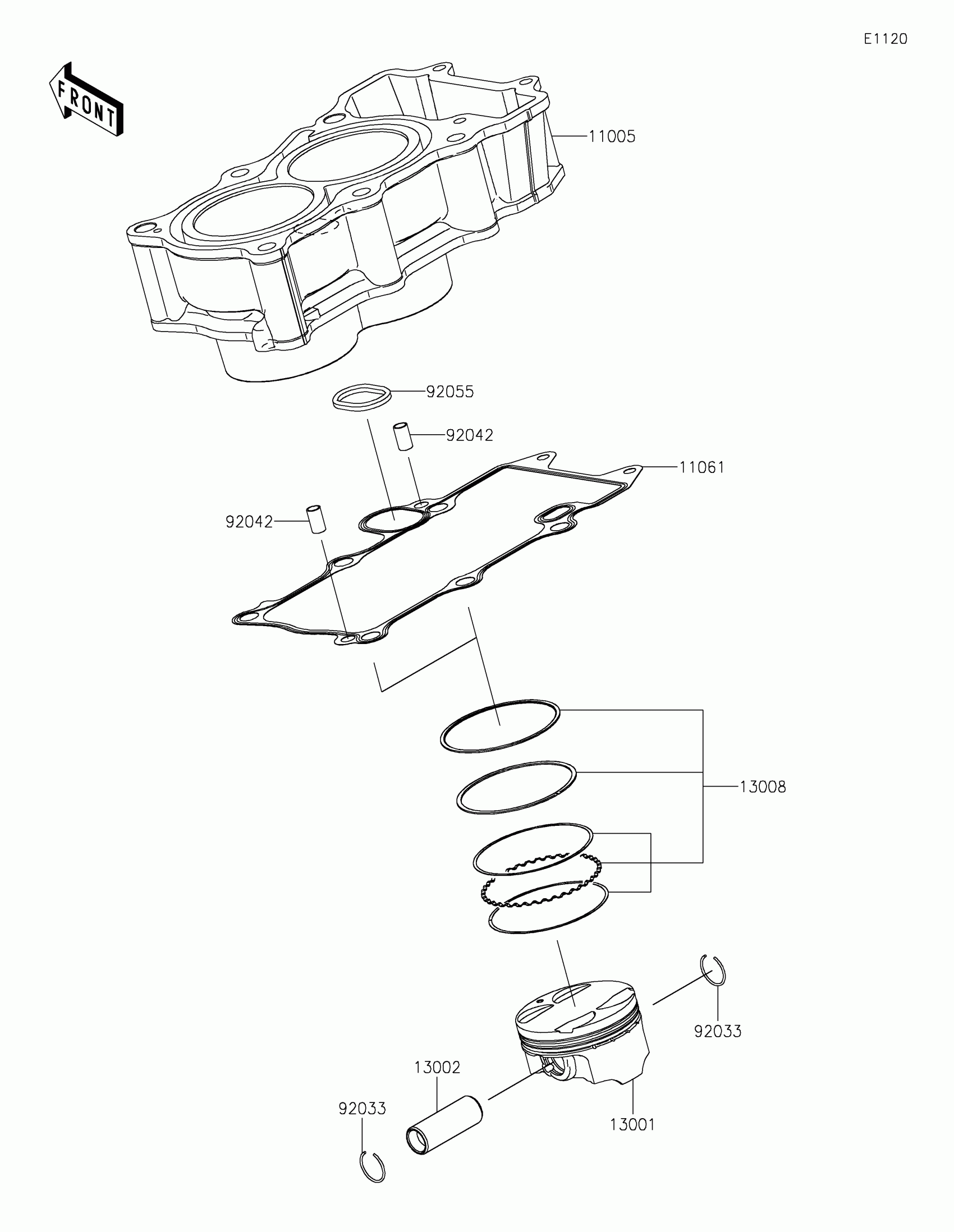

2021 Kawasaki Ninja® 400 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0668

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1247

1
Out of stock

13001

PISTON-ENGINE

13001-0790

1

$114.49

In stock

13002

PIN-PISTON

13002-0050

1

$25.12

In stock

13008

RING-SET-PISTON

13008-0576

1

$62.68

In stock

92033

RING-SNAP

92033-1054

1

$2.03

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O

92055-0888

1

$4.16

In stock
