2021 Kawasaki Ninja® 400 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

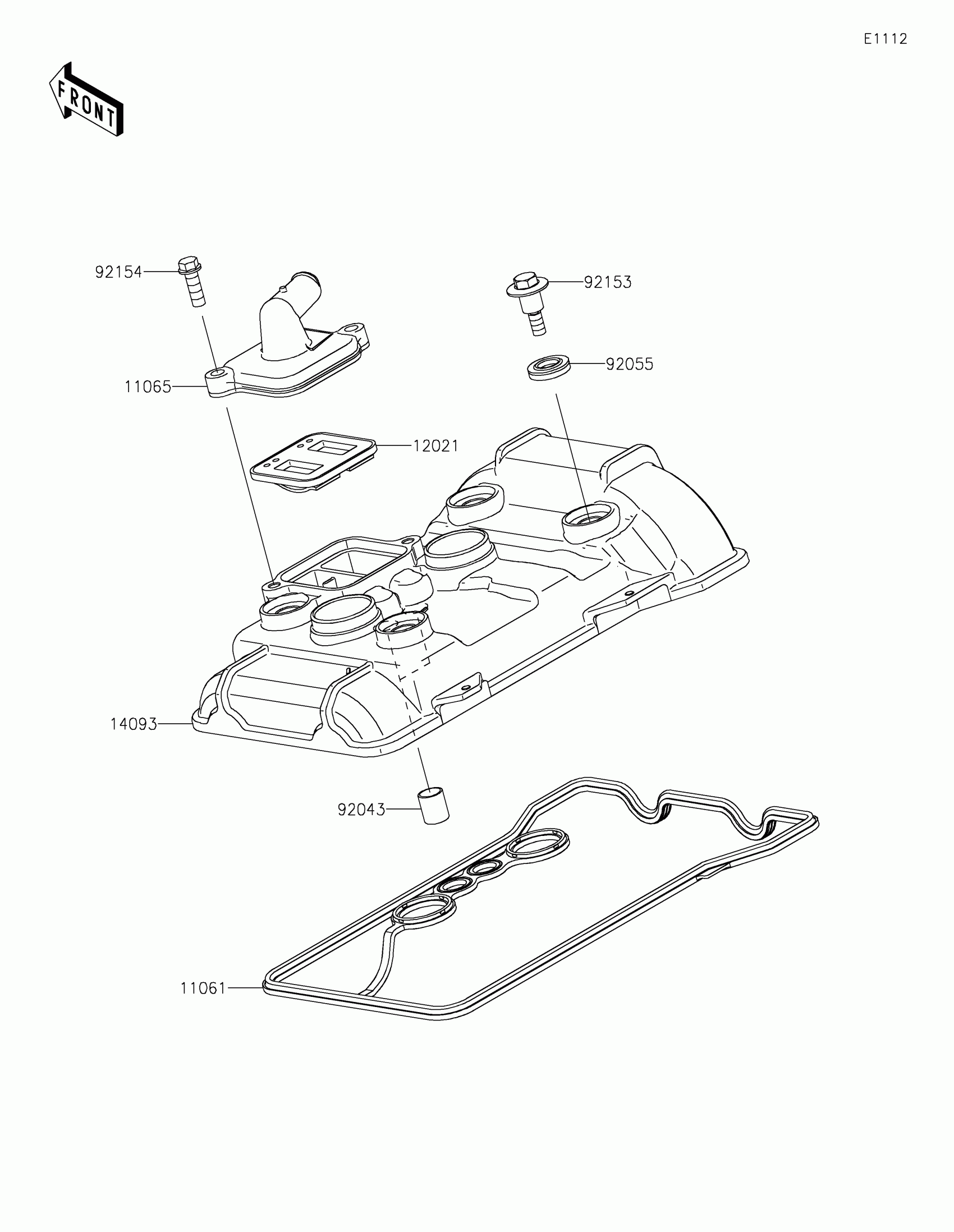

2021 Kawasaki Ninja® 400 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CYLINDER HEAD COVER

11061-1337

1
Out of stock

11065

CAP,HEAD

11065-1311

1
Out of stock

12021

VALVE-ASSY-REED

12021-0708

1
Out of stock

14093

COVER,CYLINDER HEAD

14093-0818

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O

92055-0143

1
Out of stock

92153

BOLT,HEAD COVER

92153-0793

1
Out of stock

92154

BOLT,FLANGED,6X18

92154-1775

1
Out of stock
