2021 Kawasaki Ninja® 400 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

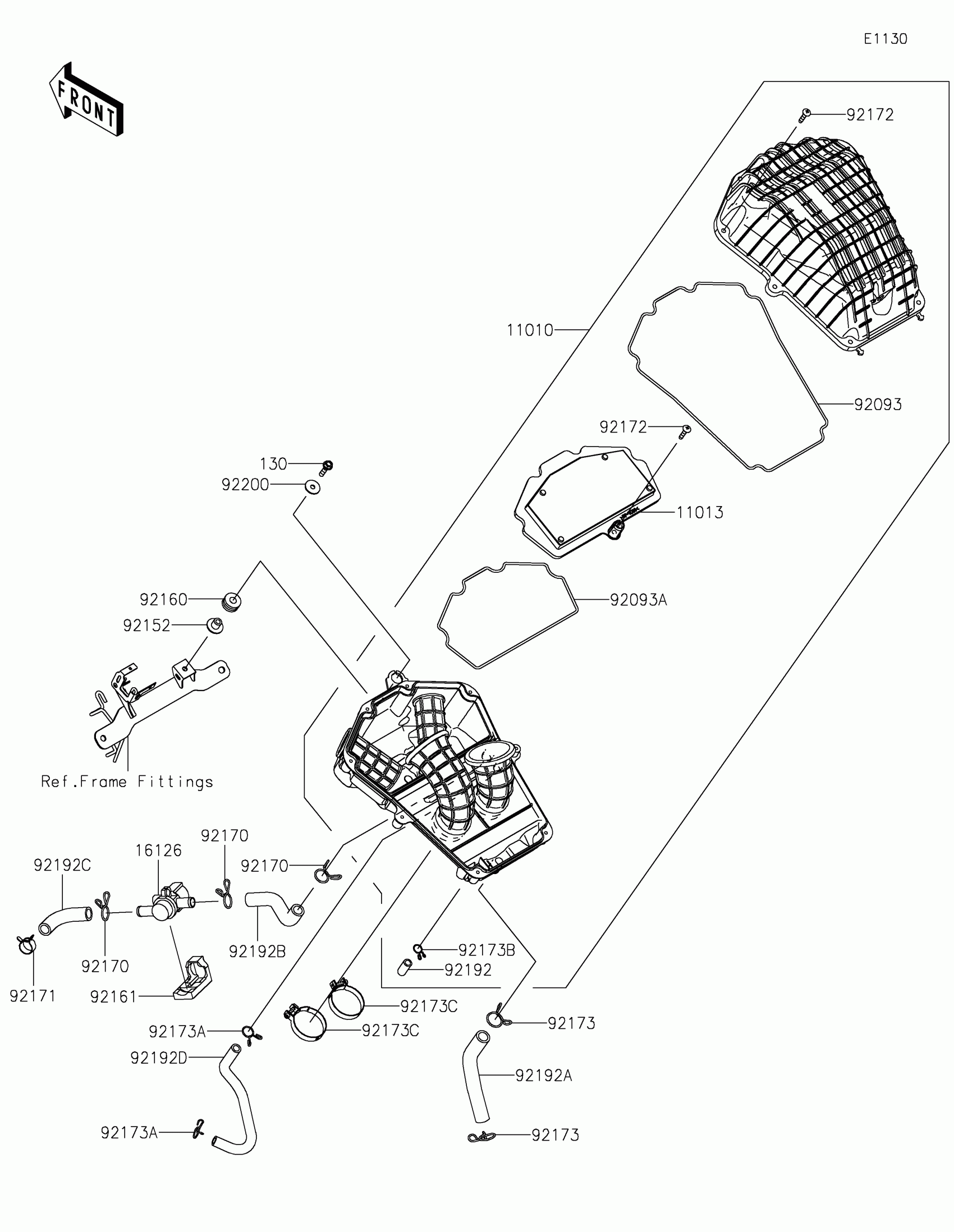

2021 Kawasaki Ninja® 400 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0867

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0767

1
Out of stock

16126

VALVE,AIR CUT

16126-0744

1

$82.49

In stock

92093

SEAL,CASE

92093-0706

1

$4.86

In stock

92093A

SEAL,ELEMENT

92093-0707

1

$4.07

In stock

92152

1

$4.47

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92161

DAMPER

92161-1933

1

$13.81

In stock

92170

CLAMP

92170-1017

1

$3.72

In stock

92171

CLAMP,18.8MM

92171-2056

1

$1.27

In stock

92172

SCREW,5X25

92172-0891

1

$1.66

In stock

92173

CLAMP,20MM

92173-0190

1

$4.68

In stock

92173A

CLAMP,14MM

92173-0192

1

$3.29

In stock

92173B

CLAMP

92173-1714

1

$7.15

In stock

92173C

CLAMP

92173-1749

1

$4.08

In stock

92192

TUBE,DRAIN CLEAN

92192-1744

1
Out of stock

92192A

TUBE,BREATHER

92192-1810

1

$7.27

In stock

92192B

1

$7.47

In stock

92192C

1

$5.10

In stock

92192D

1

$8.90

In stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
