2021 Kawasaki Ninja® 400 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

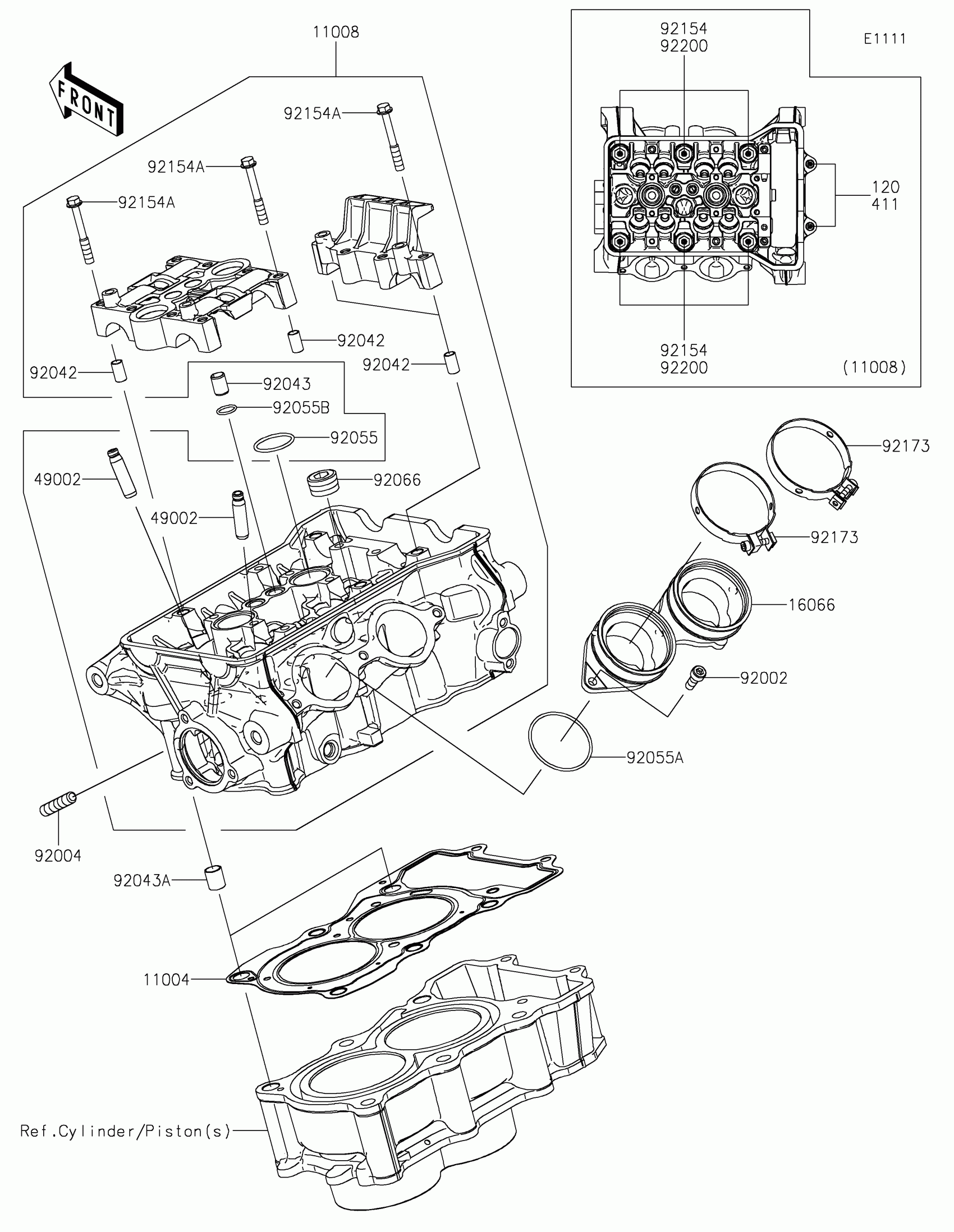

2021 Kawasaki Ninja® 400 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0774

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0967

1

$1,450.50

In stock

16066

1

$73.44

In stock

49002

GUIDE-VALVE

49002-0009

1

$31.33

In stock

92002

BOLT,6X16

92002-1143

1

$3.12

In stock

92004

STUD,8X25

92004-0731

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92043A

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,25.5X2

92055-0074

1
Out of stock

92055A

RING-O,44.5X1.9

92055-0890

1
Out of stock

92055B

RING-O,13.5X1.5

92055-0944

1

$3.59

In stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92154

BOLT,FLANGED,9X138

92154-2732

1

$11.56

In stock

92154A

BOLT,FLANGED,6X45

92154-3737

1

$1.27

In stock

92173

CLAMP,58MM

92173-0927

1

$13.63

In stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock

120

BOLT-SOCKET,6X90

120CC0690

1

$2.64

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
