2021 Kawasaki Ninja® 400 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

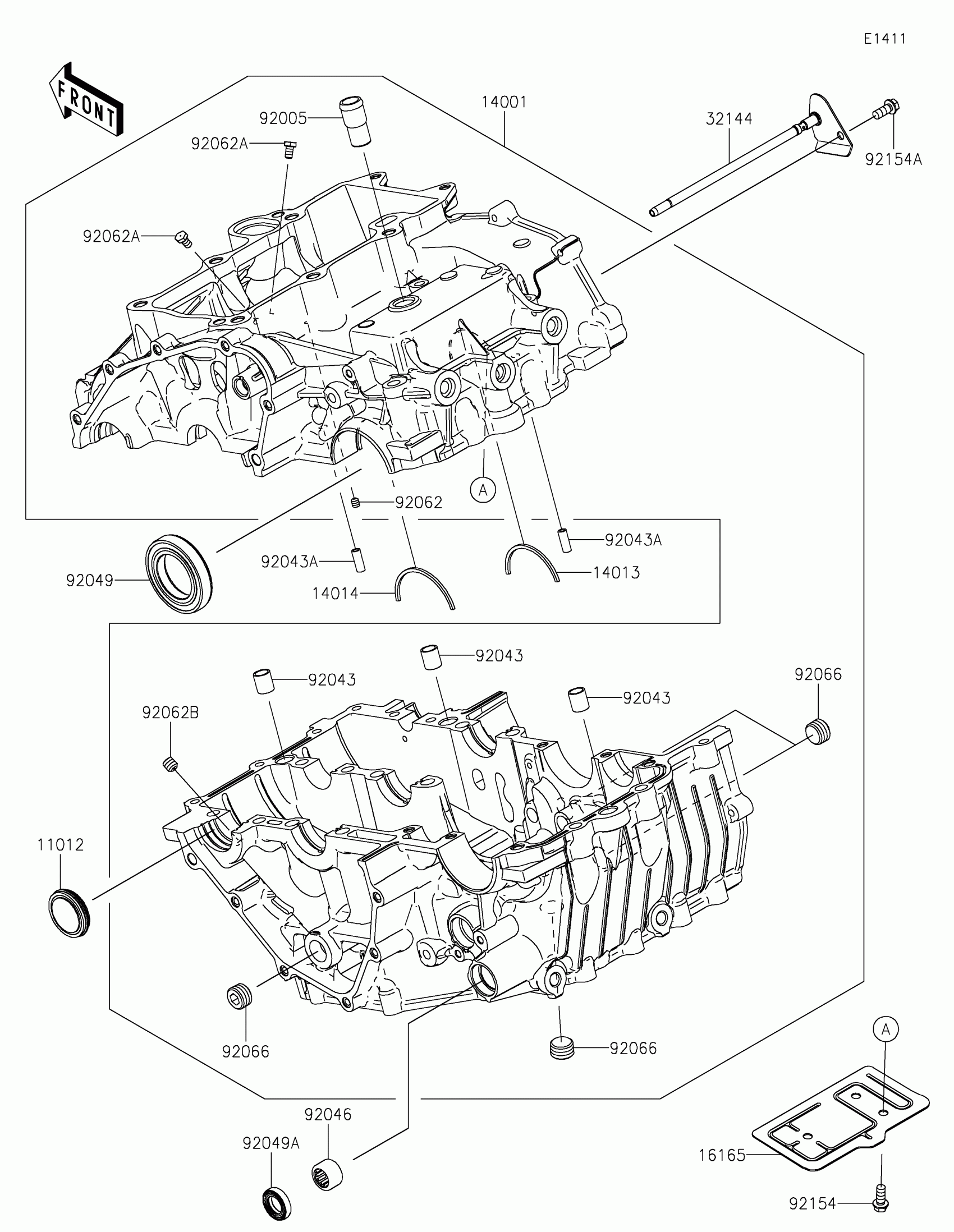

2021 Kawasaki Ninja® 400 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,LH

11012-1770

1

$12.49

In stock

14001

SET-CRANKCASE

14001-0717

1

$1,097.09

In stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-0576

1

$1.27

In stock

16165

SEPARATOR

16165-0016

1

$4.68

In stock

32144

PIPE-ASSY

32144-0008

1

$45.75

In stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92043

PIN,12X14

92043-0963

1

$5.21

In stock

92043A

PIN,3.5X6X16

92043-1309

1

$4.37

In stock

92046

1

$13.53

In stock

92049

SEAL-OIL

92049-0799

1

$12.02

In stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92062

NOZZLE

92062-0004

1

$4.00

In stock

92062A

NOZZLE

92062-0047

1

$14.34

In stock

92062B

NOZZLE

92062-0048

1

$4.93

In stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92154

BOLT,FLANGED,6X14

92154-1426

1

$1.69

In stock

92154A

BOLT,FLANGED,6X14

92154-2907

1

$0.69

In stock
