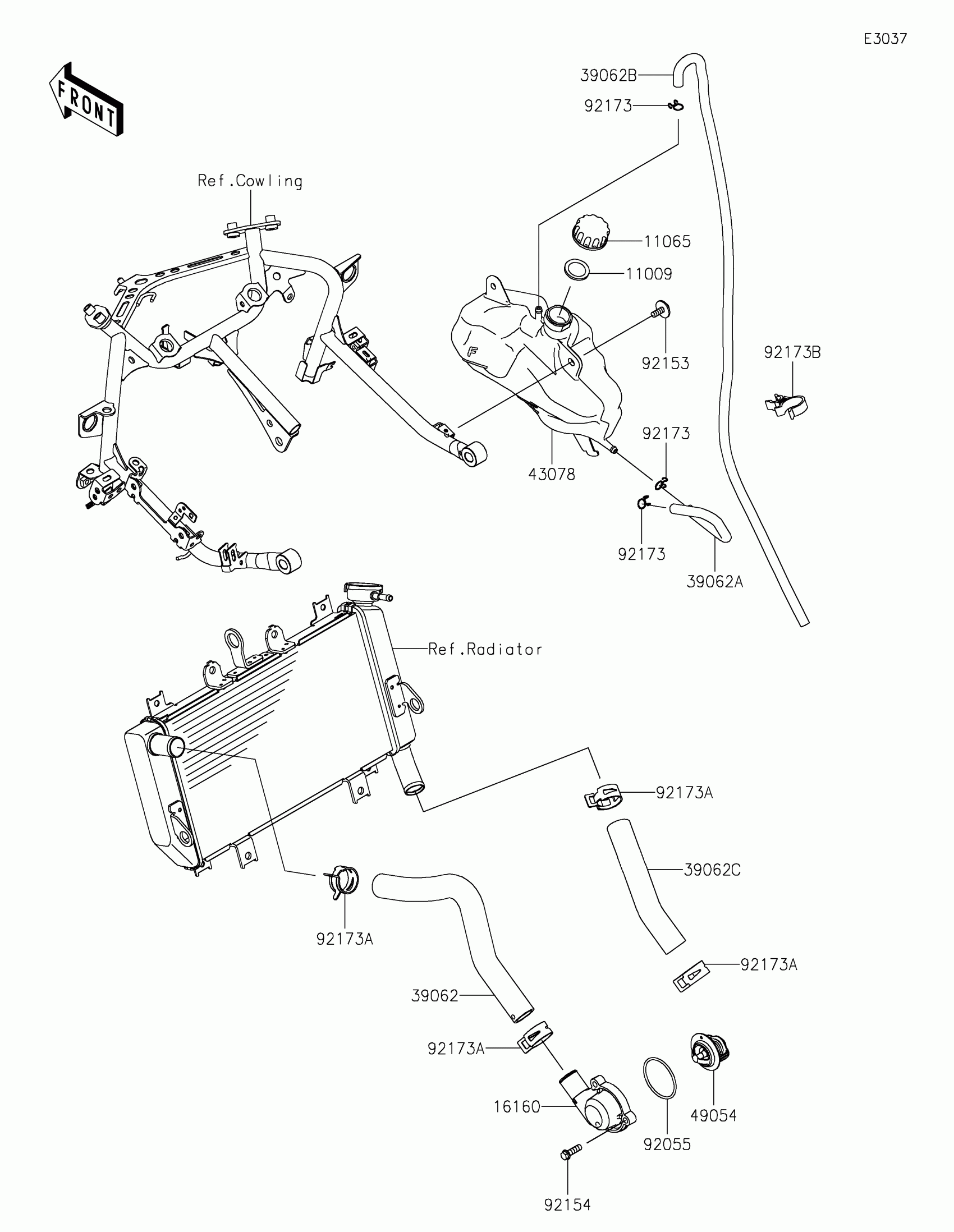

2021 Kawasaki Ninja® 400 Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Ninja® 400 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

16160

BODY,THERMOSTAT

16160-0830

1

$47.83

In stock

39062

1

$13.29

In stock

39062A

1

$5.71

In stock

39062B

1

$11.68

In stock

39062C

1

$8.06

In stock

43078

RESERVOIR

43078-0600

1

$43.55

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92055

RING-O,46.7X2.4

92055-0992

1

$5.00

In stock

92153

1

$1.53

In stock

92154

BOLT,FLANGED,6X20

92154-1778

1

$1.88

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92173A

CLAMP

92173-1688

1

$3.07

In stock

92173B

CLAMP

92173-1691

1

$2.59

In stock
← Valve Water Pump →
