1973 Yamaha MX360 (MX360) OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

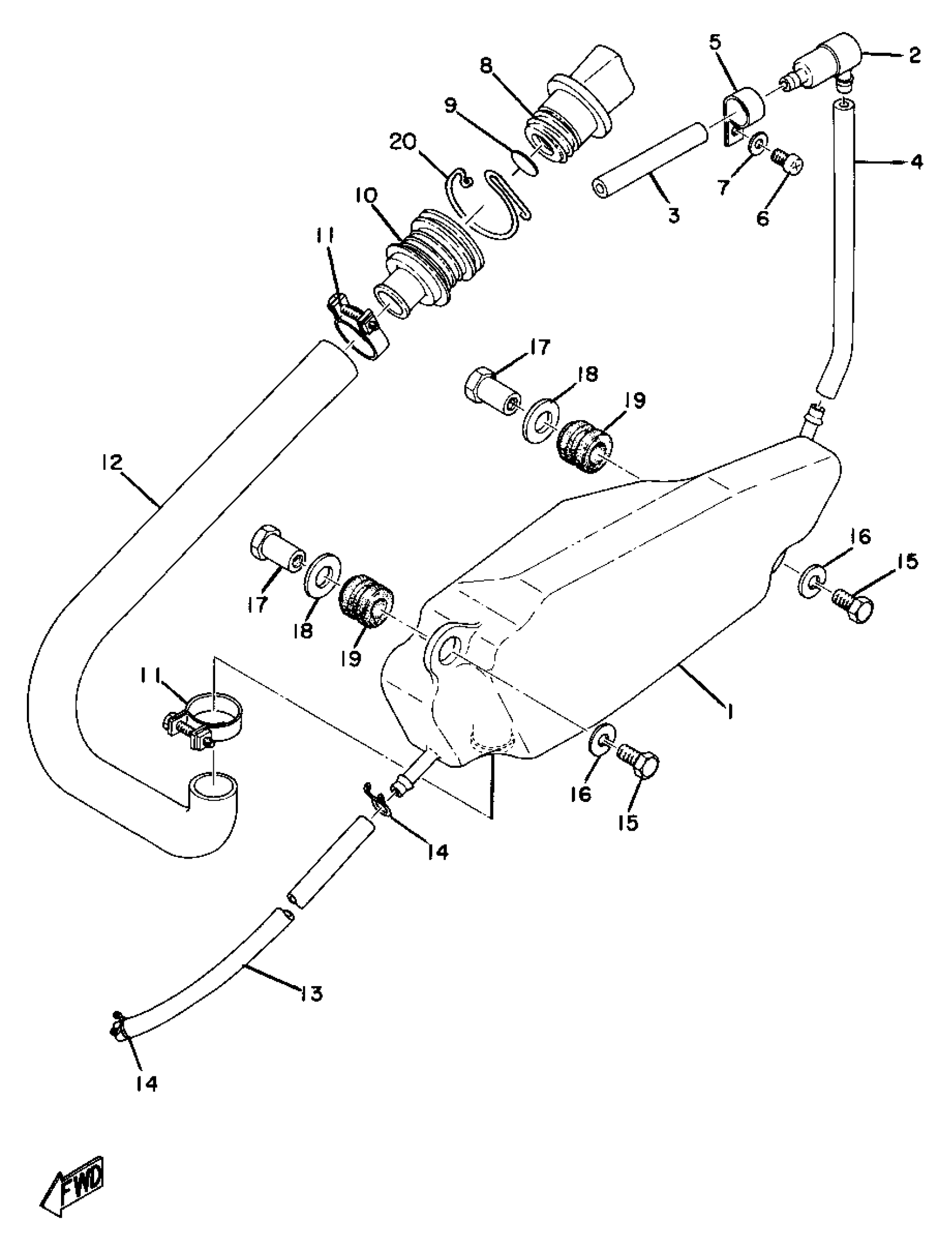

1973 Yamaha MX360 (MX360) OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

(363-21751-01-00)

1
Out of stock

2

BREATHER

(363-21744-00-00)

1
Out of stock

3

HOSE

(90445-09060-00)

1
Out of stock

4

PIPE, OIL TNK BRTHR

(363-21745-00-00)

1
Out of stock

4

PIPE, OIL TNK BRTHR

(363-21745-00-00)

1
Out of stock

5

CLAMP

(90461-08008-00)

1
Out of stock

6

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

7

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

8

BODY, CAP

363-21771-01-00

1
Out of stock

9

DISC, CAP

(363-21765-00-00)

1
Out of stock

10

TUBE, FILLER 1

(363-21752-00-00)

1
Out of stock

11

NO LONGER AVAILABLE (363-21729-00)

90460-24006-00

1
Out of stock

12

BOSS, CONNECTOR

(363-21753-01-00)

1
Out of stock

13

HOSE (L1500)

90445-090F6-00

1

$26.35

In stock

14

CLIP

90467-100A1-00

1
Out of stock

15

BOLT(62E)

97013-08012-00

—

$2.48

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, SPEC''L SHAPE

(90179-06136-00)

1
Out of stock

18

—

$3.00

In stock

19

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

20

LOCK ASSEMBLY

(363-21780-00-00)

1
Out of stock
