1973 Yamaha MX360 (MX360) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

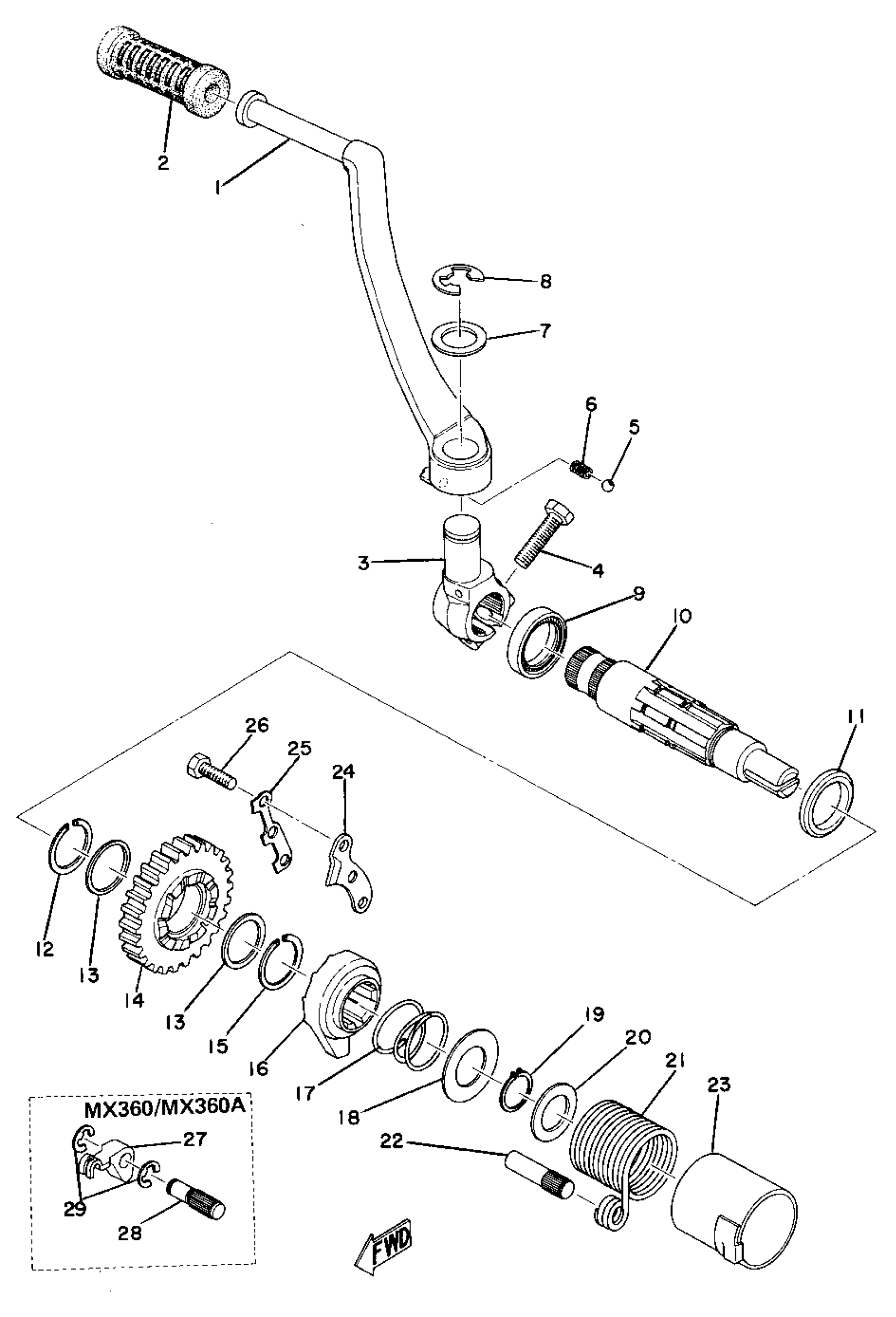

1973 Yamaha MX360 (MX360) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

1M1-18111-01-00

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

5

BALL (12R)

93507-32031-00

1
Out of stock

6

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

7

WASHER

90201-17256-00

1
Out of stock

8

CIRCLIP (E-12)

93430-12022-00

1
Out of stock

9

OIL SEAL (25X35X7-256)

93102-25064-00

1
Out of stock

10

LEVER, SHIFT 1

363-18121-00-00

1
Out of stock

10

LEVER, CHANGE 1

434-18121-00-00

1
Out of stock

11

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

11

SPACER, KICK AXLE

90560-25045-00

1
Out of stock

12

CIRCLIP

93440-25020-00

1
Out of stock

12

1 CIRCLIP, OUTER

93440-25027-00

1
Out of stock

13

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

14

CIRCLIP

99006-10600-00

—

$6.91

In stock

15

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

16

WHEEL, RACHET

583-15671-00-00

—
Out of stock

16

WASHER

90215-08015-00

1
Out of stock

17

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

18

COVER, SPRING

363-15676-00-00

—
Out of stock

19

CIRCLIP(1EY)

99009-19400-00

—

$6.17

In stock

20

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

21

SPRING, KICK

90508-32060-00

1
Out of stock

22

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock

22

STOPPER

(364-15668-00-00)

1
Out of stock

23

GUIDE, SPRING

(498-15664-00-00)

1
Out of stock

24

GUIDE, RATCHET WHEEL

(363-15674-00-00)

1
Out of stock

25

WASHER, LOCK

363-15686-00-00

—
Out of stock

26

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

27

LINK

363-15656-00-00

1
Out of stock

28

SHAFT

363-15659-00-00

1
Out of stock

29

CIRCLIP

99080-07600-00

1

$2.89

In stock
