1973 Yamaha MX360 (MX360) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

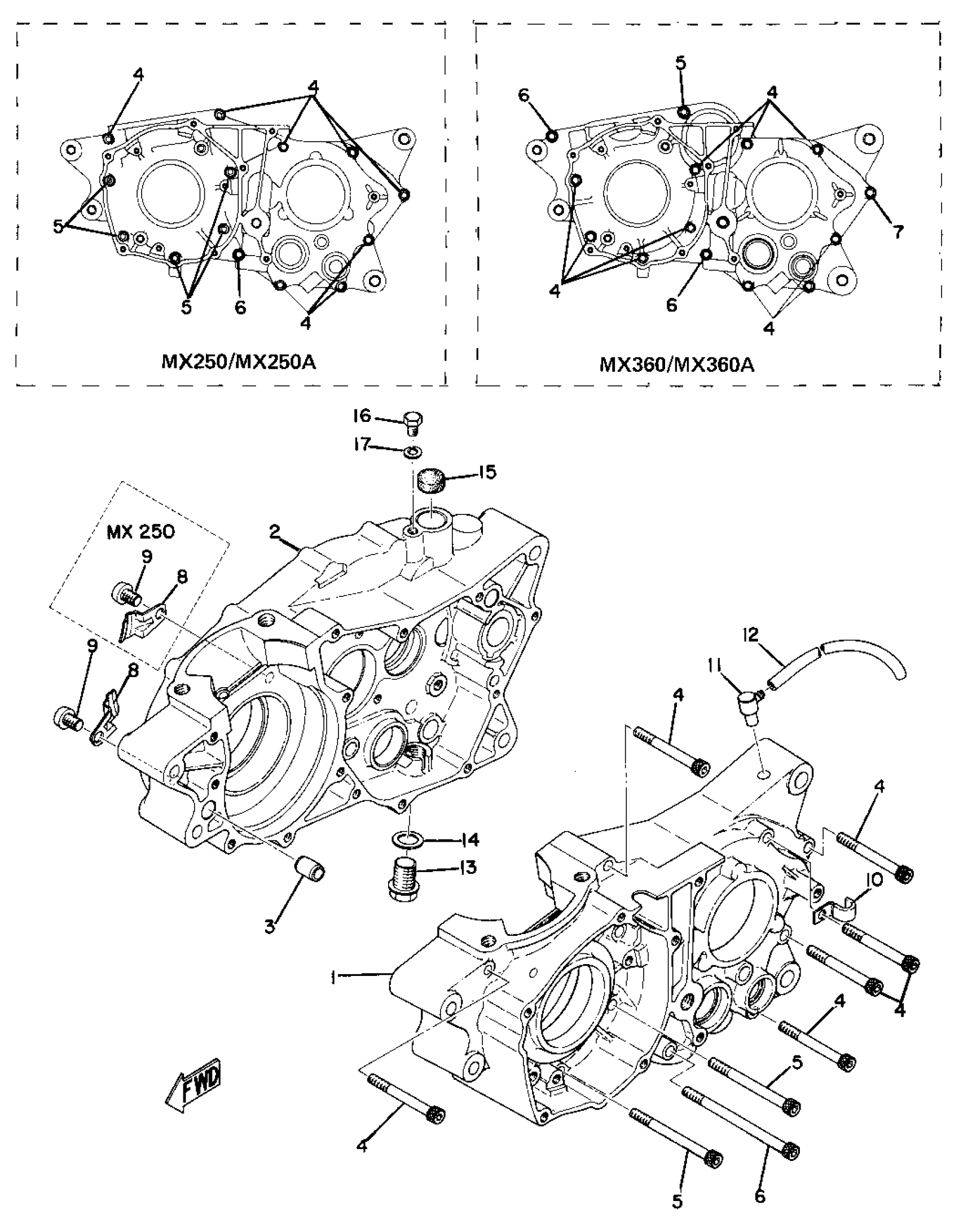

1973 Yamaha MX360 (MX360) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(364-15111-02-00)

1
Out of stock

1

CRANKCASE 1

(364-15111-09-00)

1
Out of stock

1

CRANKCASE 1

(365-15111-09-00)

1
Out of stock

2

CRANKCASE 2

(364-15121-02-00)

1
Out of stock

2

CRANKCASE 2

(365-15121-00-00)

1
Out of stock

2

CRANKCASE 2

(365-15121-02-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

5

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

5

BOLT, SOCKET

91317-06075-00

1
Out of stock

6

BOLT, SOCKET

91317-06085-00

—

$4.11

In stock

6

BOLT

91316-06100-00

1
Out of stock

7

BOLT,SOCKET

91317-06045-00

1
Out of stock

8

HOLDER

(363-15118-00-00)

1
Out of stock

8

HOLDER

434-15118-00-00

1
Out of stock

9

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

10

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

11

BREATHER

583-15371-00-00

—
Out of stock

12

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

13

BOLT

90109-14385-00

—

$13.66

In stock

14

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

15

PLUG 363174810000

90338-20023-00

—

$5.14

In stock

16

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
