1973 Yamaha MX360 (MX360) Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

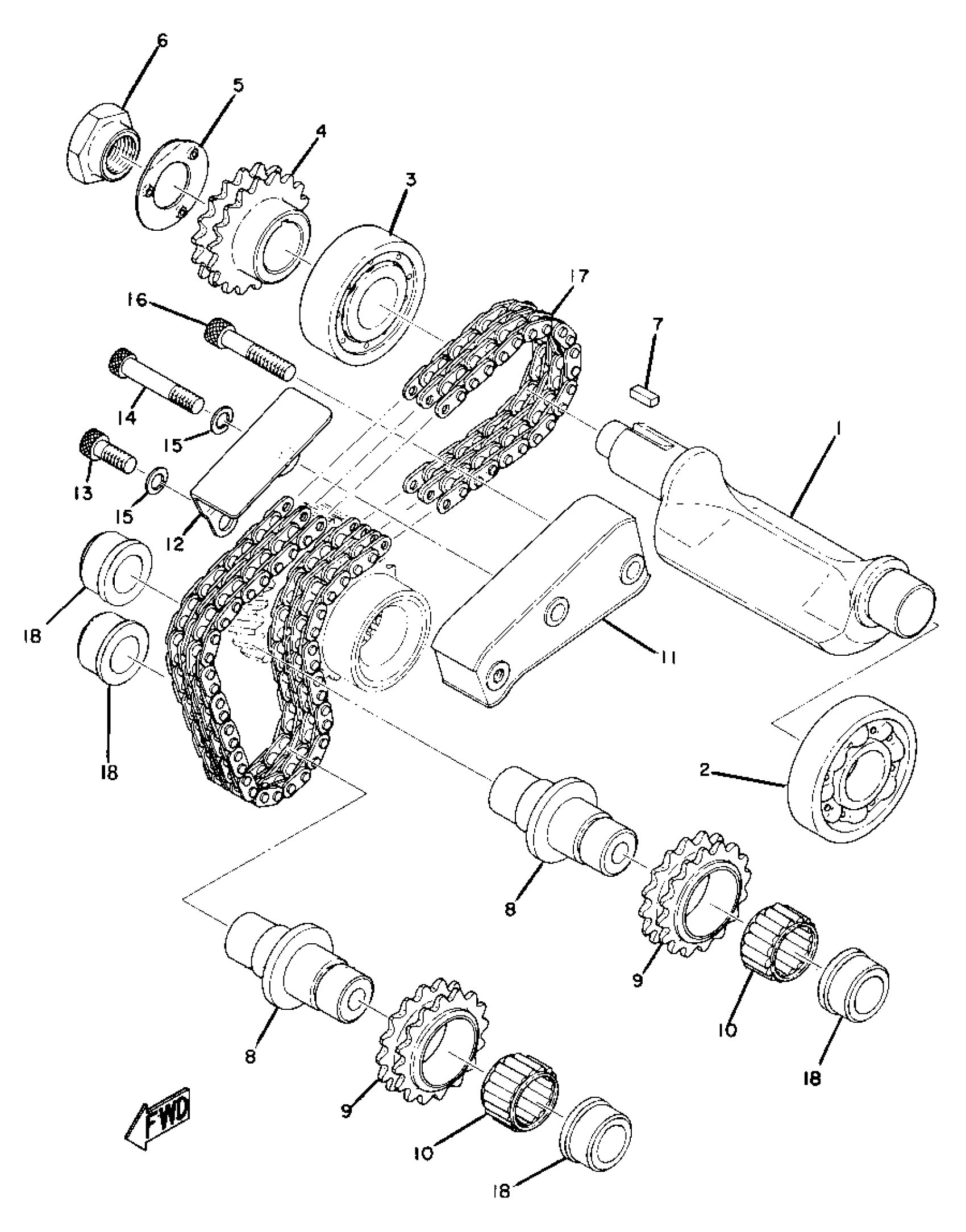

1973 Yamaha MX360 (MX360) Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WEIGHT 1

(363-11454-01-00)

1
Out of stock

2

BEARING

(93306-20410-00)

1
Out of stock

3

BEARING, CYLINDER. #90

(93390-00008-00)

1
Out of stock

4

SPROCKET, WHEEL

(363-11458-01-00)

1
Out of stock

5

WASHER, LOCK

(363-11449-00-00)

1
Out of stock

6

NUT, SPECIAL

(363-11459-00-00)

1
Out of stock

7

KEY, STRAIGHT

(90282-04004-00)

1
Out of stock

8

SHAFT 1

(363-11455-01-00)

1
Out of stock

9

NO LONGER AVAILABLE

363-11438-00-00

1
Out of stock

10

BEARING, CYLINDER.#10

93310-42071-00

1
Out of stock

11

GUIDE, CHAIN

(363-11457-02-00)

1
Out of stock

12

GUIDE, UPPER

363-11474-00-00

1
Out of stock

13

BOLT, SOCKET

91317-08016-00

1

$6.17

In stock

14

BOLT, SOCKET

91317-08035-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

17

CHAIN

94862-09066-00

1
Out of stock

18

NO LONGER AVAILABLE

363-11466-00-00

1
Out of stock
