1973 Yamaha MX360 (MX360) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

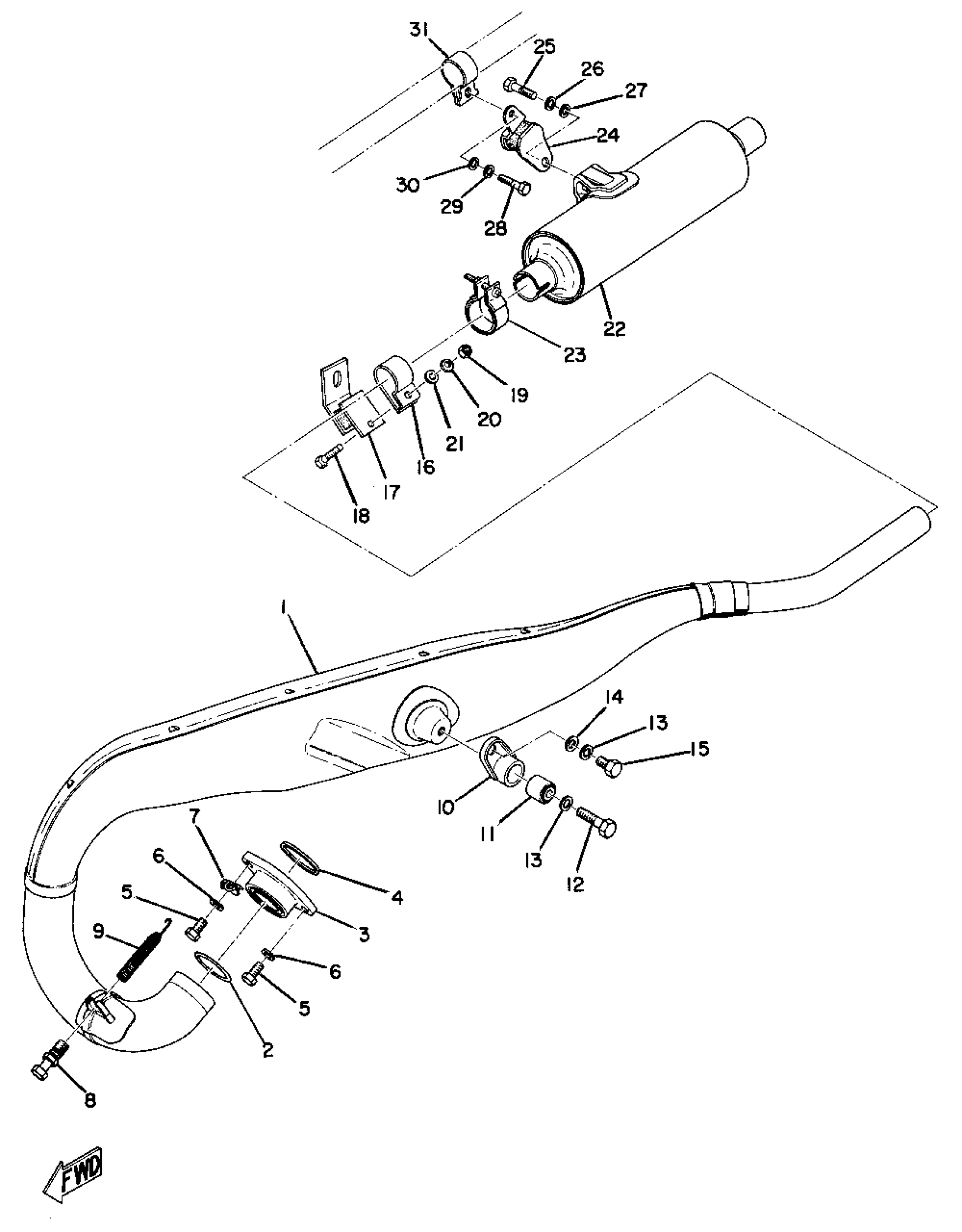

1973 Yamaha MX360 (MX360) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(364-14610-01-00)

1
Out of stock

2

GASKET

248-14623-10-00

1

$6.22

In stock

3

NUT, RING

(214-14612-00-00)

1
Out of stock

4

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

5

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

5

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PLATE

363-14685-00-00

1
Out of stock

8

BOLT (322-14684-10)

90109-08305-00

1
Out of stock

9

SPRING,TENSION

90507-20012-00

1
Out of stock

10

STAY, MUFFLER 1

363-14771-00-00

1
Out of stock

11

BUSHING, REAR CUSHION

164-22216-00-00

1

$12.17

In stock

12

BOLT

97013-08035-00

1

$4.80

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

16

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

17

STAY, MUFFLER

(363-14791-00-00)

1
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

22

SILENCER, EXHAUST

(364-14753-00-00)

1
Out of stock

23

BAND, SILENCER

322-14788-11-00

1
Out of stock

24

STAY 5

363-14782-10-00

1
Out of stock

25

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

STAY, MUFFLER

(322-14792-10-00)

1
Out of stock
