1973 Yamaha MX360 (MX360) OIL Pump Diagram

← All diagrams

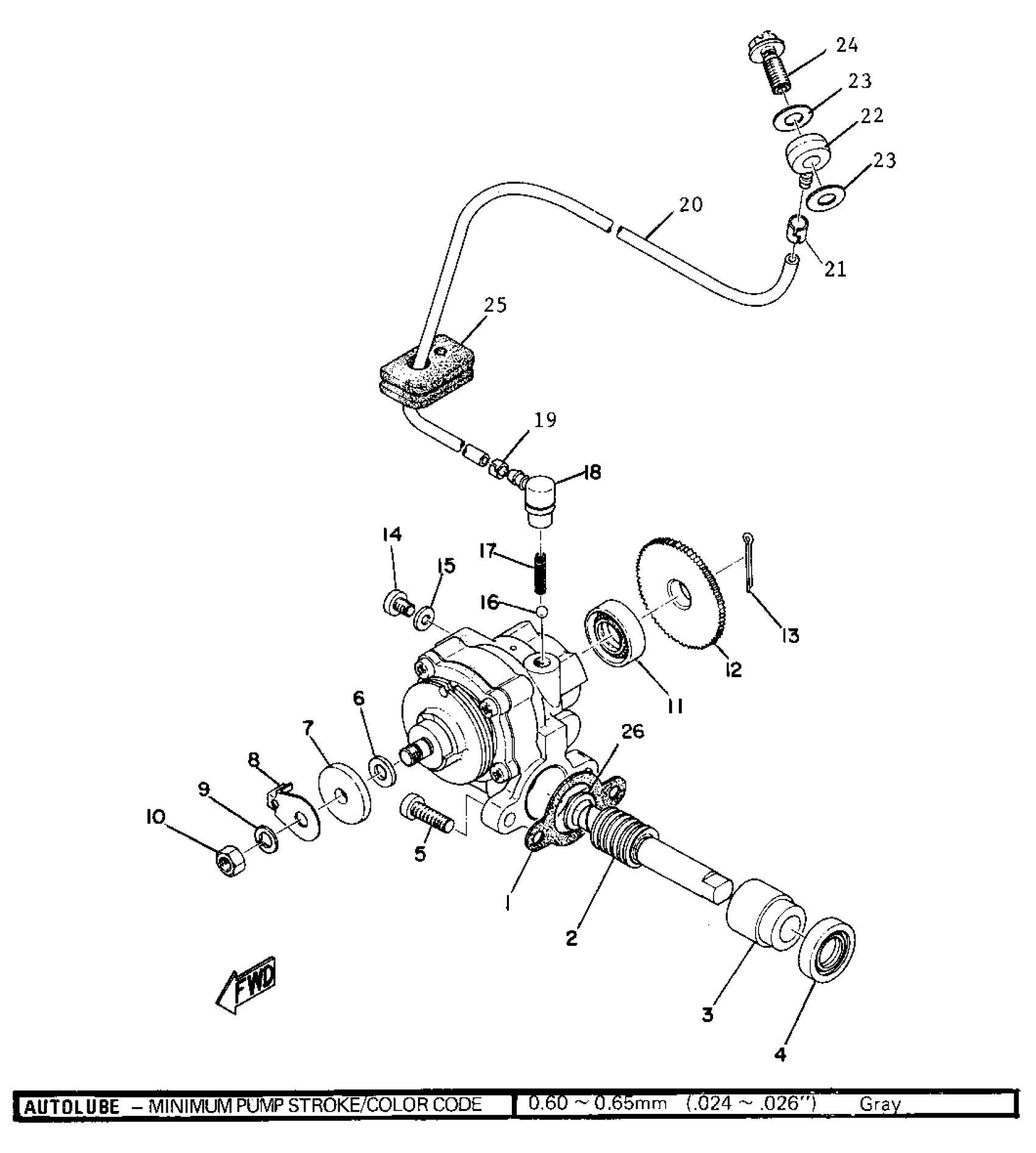

Find the part on the OIL Pump diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha MX360 (MX360) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(363-13101-03-00)

1
Out of stock

1

OIL PUMP ASSEMBLY

(364-13101-00-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

2

SHAFT, WORM

(364-13175-00-00)

1
Out of stock

3

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

4

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

5

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

5

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

6

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

6

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

7

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

8

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

12

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

13

. PIN, COTTER

91401-12018-00

1
Out of stock

14

SCREW, BIND

98980-04008-00

1

$3.26

In stock

15

GASKET 137131870000

90430-04004-00

—
Out of stock

16

BALL

93505-32002-00

—

$2.22

In stock

17

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

18

NOZZLE

353-13552-01-00

—
Out of stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

20

HOSE (L700)

90445-05M07-00

1
Out of stock

21

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

22

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

23

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

24

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

25

. HOLDER, OIL PIPE

(363-13174-00-00)

1
Out of stock

26

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
