1973 Yamaha MX360 (MX360) Cylinder - Reed Valve Diagram

← All diagrams

Find the part on the Cylinder - Reed Valve diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

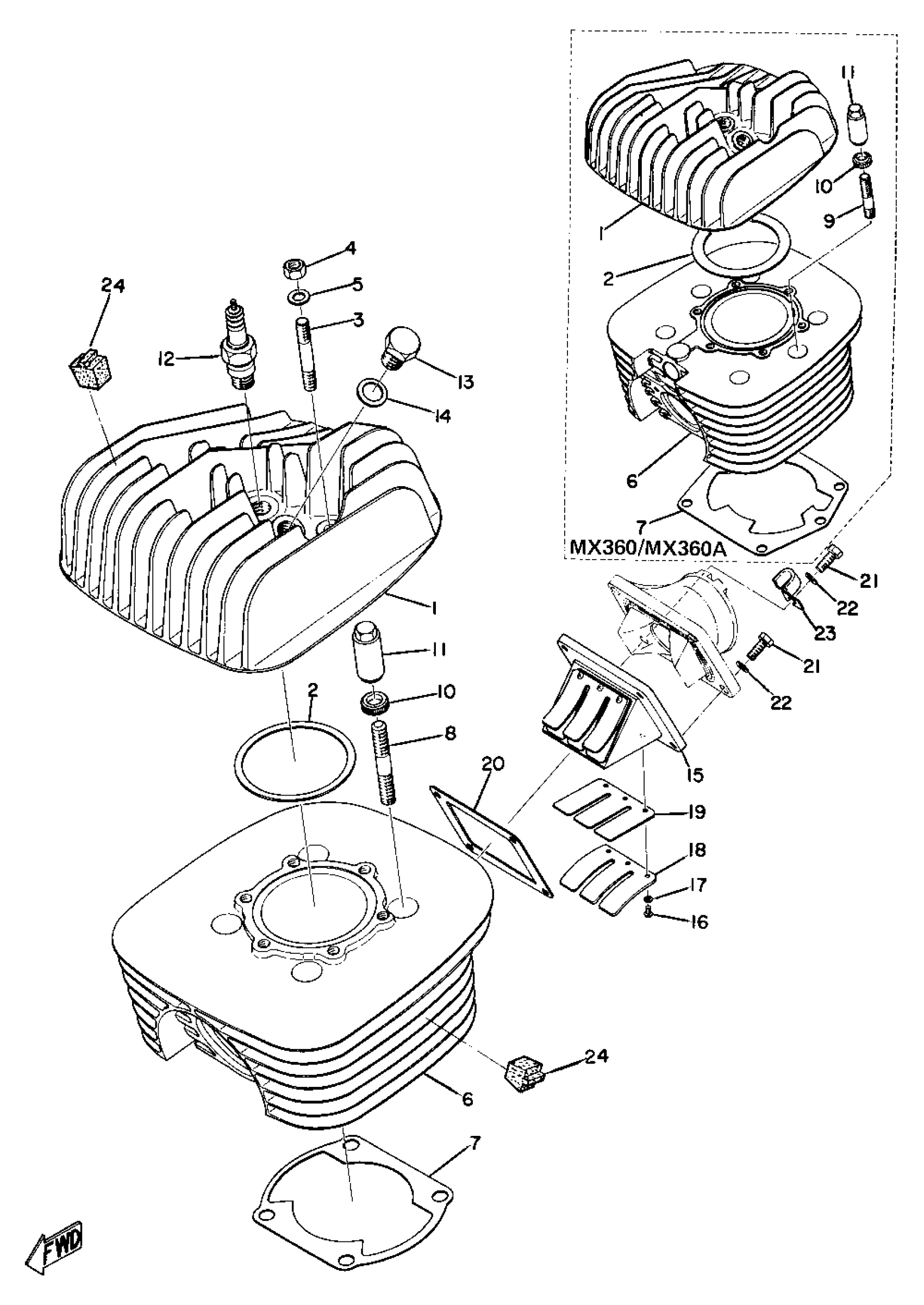

1973 Yamaha MX360 (MX360) Cylinder - Reed Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(364-11111-00-00)

1
Out of stock

1

HEAD, CYLINDER 1

(365-11111-00-00)

1
Out of stock

2

GASKET (364-11181-00)

90430-72063-00

1
Out of stock

2

GASKET (275-11181-00)

90430-83065-00

1
Out of stock

3

BOLT STUD 363111790000

90116-08104-00

1
Out of stock

4

NUT(6L2)

95333-08600-00

1
Out of stock

5

WASHER, PLATE (397)

90201-08100-00

1
Out of stock

6

CYLINDER 1

(364-11311-00-00)

1
Out of stock

6

CYLINDER 1

(364-11311-01-00)

1
Out of stock

6

CYLINDER 1

(365-11311-00-00)

1
Out of stock

7

GASKET, CYLINDER

364-11351-01-00

1
Out of stock

7

GASKET,CYLINDER

365-11351-09-00

1
Out of stock

8

BOLT (363-11361-00)

90116-10087-00

1
Out of stock

9

BOLT, STUD

90116-10088-00

1
Out of stock

10

WASHER, PLATE (363-11175-00)

90201-11155-00

1
Out of stock

10

WASHER, PLATE (363-11175-00)

90201-11155-00

1
Out of stock

11

NUT

90179-10021-00

—
Out of stock

11

NUT

90179-10021-00

—
Out of stock

12

NGK BR8EV 4PK

NGK-BR8EV-00-00

1
Out of stock

13

PLUG, BLIND

90340-14022-00

1
Out of stock

14

GASKET

214-11198-01-00

—
Out of stock

15

REED VALVE ASSEMBLY

363-13610-00-00

1
Out of stock

16

SCREW, PAN HEAD (J10)

98580-03008-00

—
Out of stock

17

WASHER, SPRING

92990-03100-00

—
Out of stock

18

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

19

. REED, VALVE

363-13613-00-00

1
Out of stock

20

GASKET,VALVE SEAT

363-13621-01-00

1
Out of stock

21

BOLT(JF7)

97080-06030-00

—
Out of stock

22

WASHER, SPRING

92995-06100-00

1
Out of stock

23

CLAMP 363154850100

90462-05005-00

—
Out of stock

24

ABSORBER 1

427-11161-00-00

1
Out of stock

24

ABSORBER 1

427-11161-00-00

1
Out of stock

25

ABSORBER

363-11161-00-00

—
Out of stock

25

ABSORBER

363-11161-00-00

—
Out of stock

25

GASKET KIT MX250A

(364-00000-21-00)

1
Out of stock

25

GASKET KIT MX360A

(365-00000-21-00)

1
Out of stock
