1973 Yamaha MX360 (MX360) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

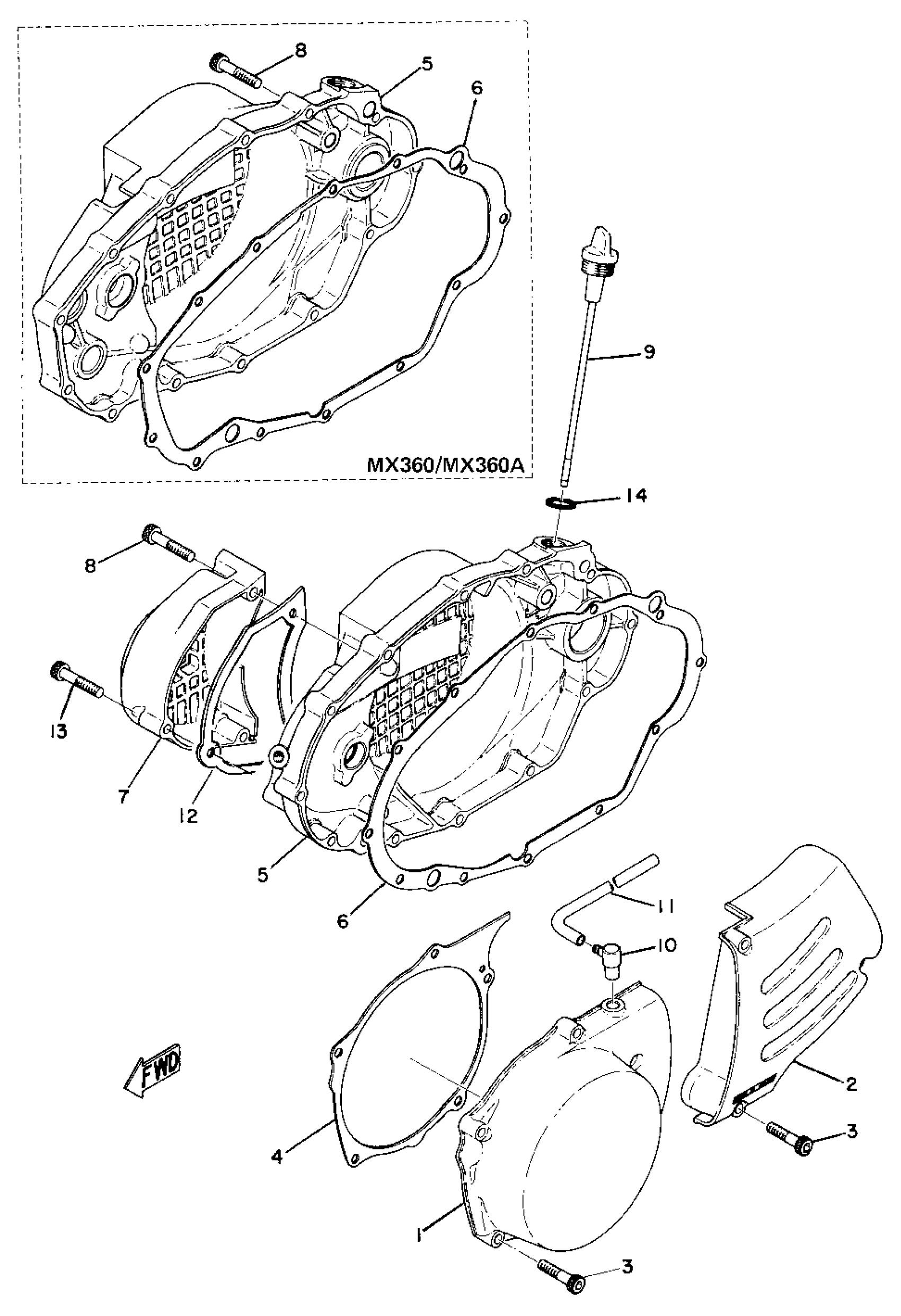

1973 Yamaha MX360 (MX360) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(363-15411-00-00)

1
Out of stock

2

COVER, CRANKCASE R

(363-15421-01-00)

1
Out of stock

3

1

$3.82

In stock

4

GASKET, CRANKCASE COVER

363-15451-09-00

1

$21.88

In stock

5

COVER, CRANKCASE 3

(363-15431-02-00)

1
Out of stock

6

GASKET,CRCS CVR 2

363-15461-09-00

1
Out of stock

6

GASKET, CRANKCASE COVER

364-15461-09-00

1

$28.24

In stock

7

COVER, OIL PUMP

(363-15416-01-00)

1
Out of stock

8

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

8

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

8

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

9

PLUG, OIL

322-15363-00-00

1
Out of stock

9

PLUG, OIL

498-15363-00-00

1
Out of stock

10

BREATHER

583-15371-00-00

1
Out of stock

11

HOSE (395-14197-00)

90446-07094-00

1
Out of stock

12

GASKET,O/PMP CVR 1

363-15456-09-00

1
Out of stock

13

BOLT,SOCKET

91317-06045-00

—
Out of stock

14

GASKET KIT MX250A

(364-00000-21-00)

1
Out of stock

14

GASKET KIT MX360A

(365-00000-21-00)

1
Out of stock

14

O-RING (646)

93210-19123-00

—

$6.91

In stock
