1983 Kawasaki LTD Shaft Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

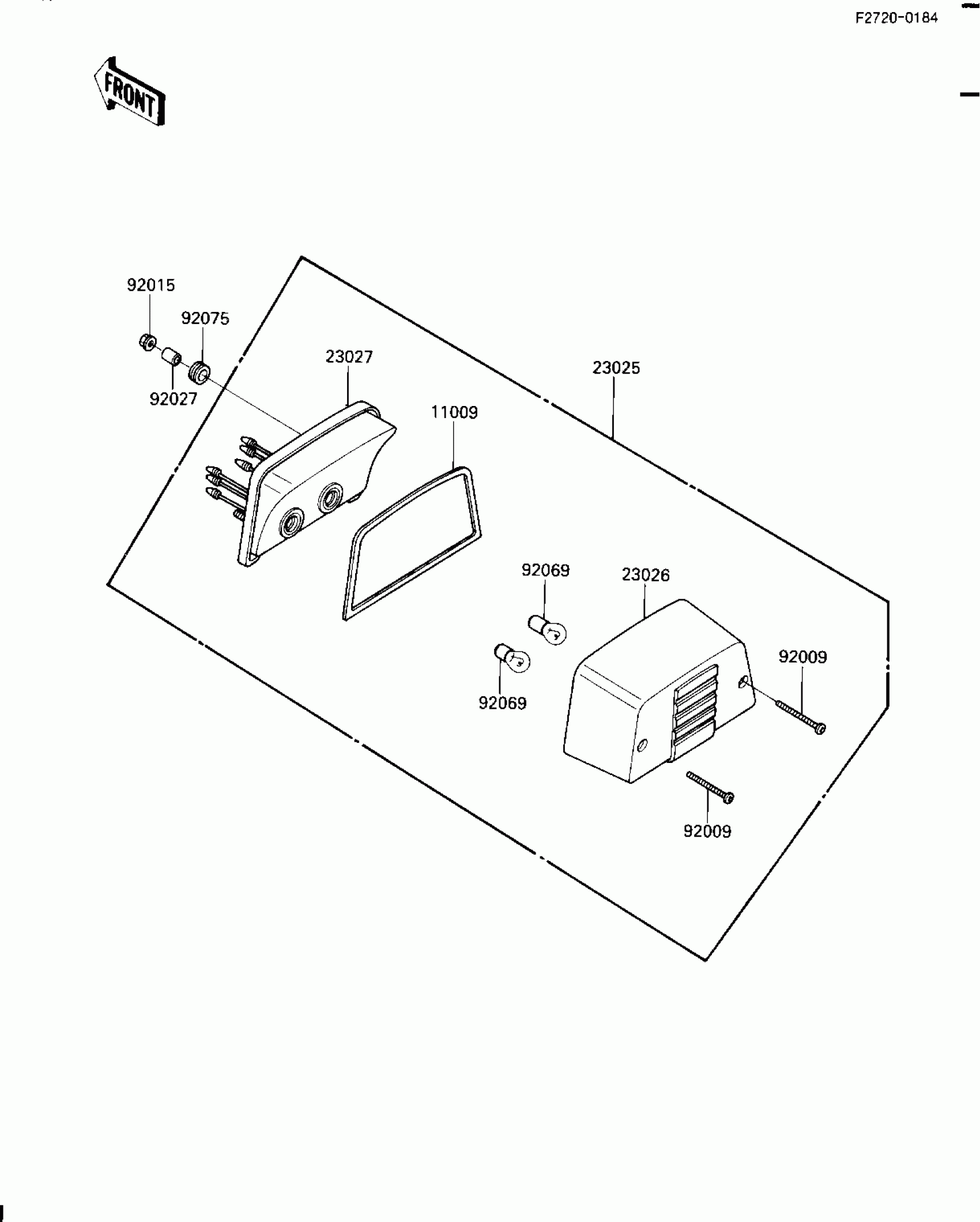

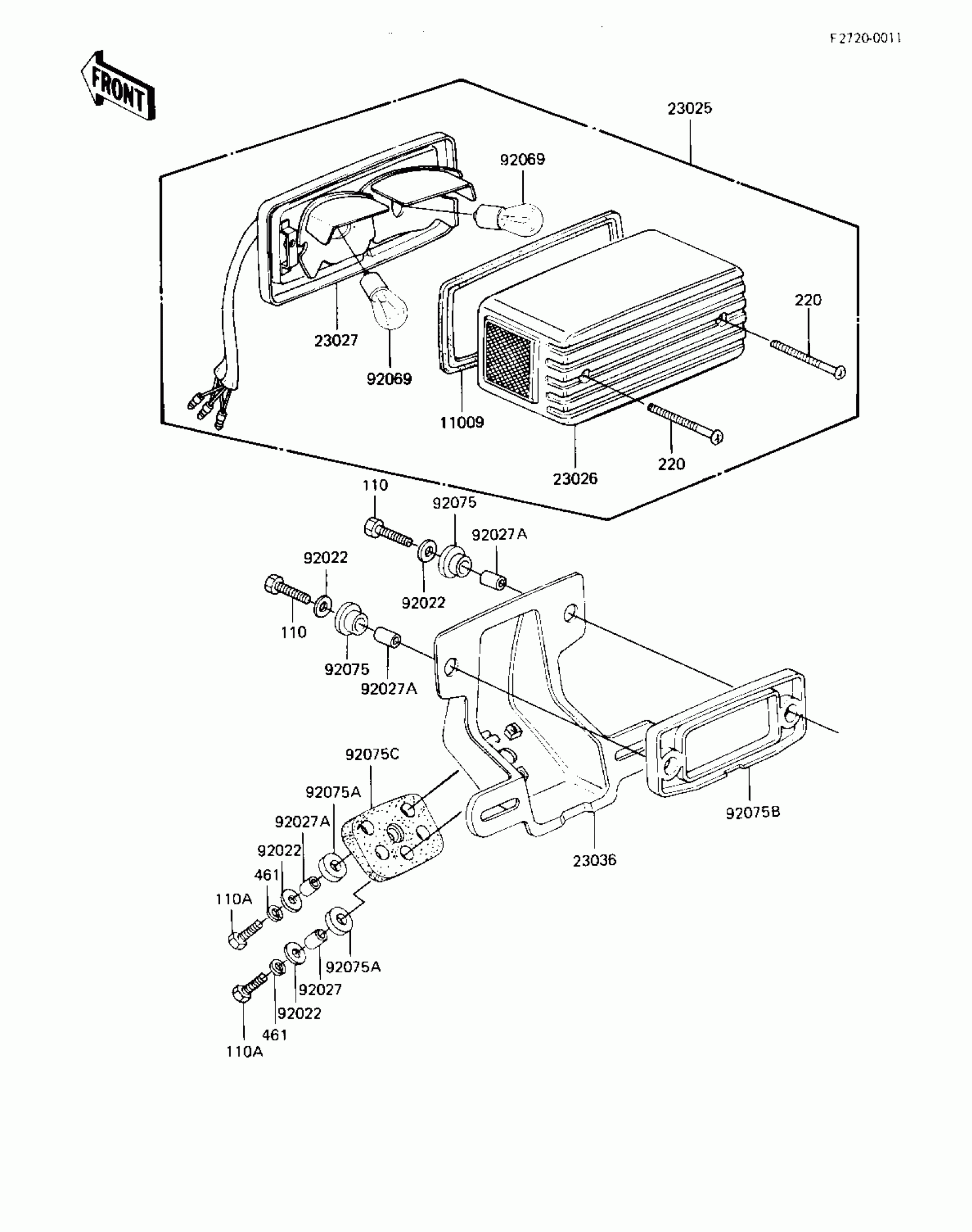

1983 Kawasaki LTD Shaft Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1221

1

$14.05

In stock

23025

LAMP-TAIL

23025-1025

1
Out of stock

23026

LENS,TAIL LAMP

23026-1021

1

$141.52

In stock

23027

BODY-COMP-TAIL LAMP

23027-1013

1

$152.05

In stock

23036

BRACKET-TAIL LAMP

23036-1033

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X14.5

92027-156

1

$3.97

In stock

92027A

COLLAR

92027-169

1

$4.87

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92075

DAMPER RUBBER

92075-1092

1
Out of stock

92075A

DAMPER,FENDER

92075-121

1

$3.63

In stock

92075B

DAMPER

92075-1282

1
Out of stock

92075C

DAMPER

92075-1283

1

$9.24

In stock

110

BOLT 6X22

112B0622

1
Out of stock

110A

BOLT-UPSET

112G0625

1
Out of stock

220

SCREW-PAN-CROS

220C0465

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
