1983 Kawasaki LTD Shaft Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

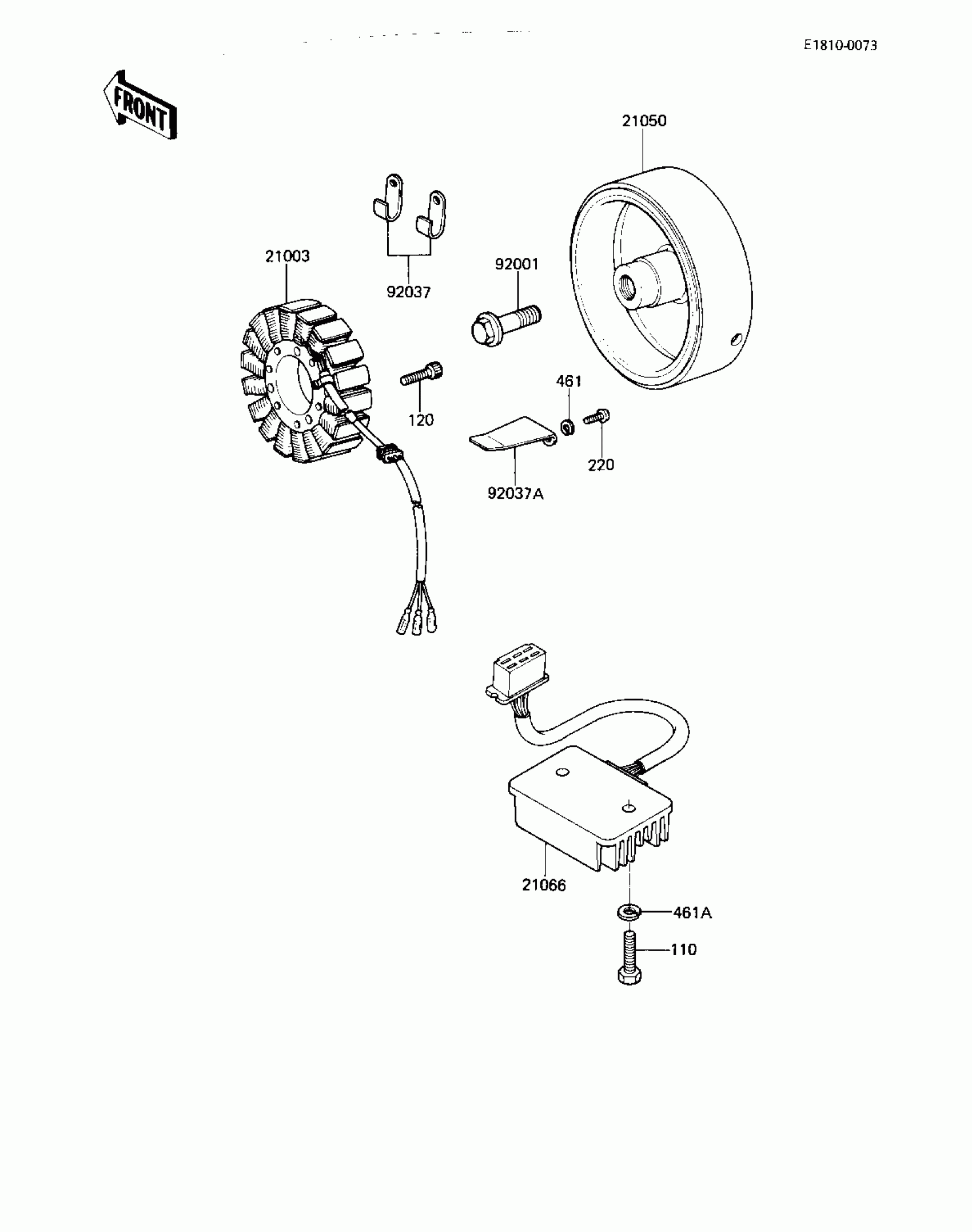

1983 Kawasaki LTD Shaft Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR,GENERATOR

21003-1038

1
Out of stock

21050

FLYWHEEL,GENERATOR

21050-1019

1

$692.90

In stock

21066

REGULATOR-VOLTAGE

21066-1030

1

$268.64

In stock

92001

BOLT,10X40

92001-1201

1

$8.44

In stock

92037

1

$3.75

In stock

92037A

1

$4.25

In stock

110

BOLT-UPSET

112G0625

1
Out of stock

120

BOLT-SOCKET,6X28

120P0628

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
