1983 Kawasaki LTD Shaft Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

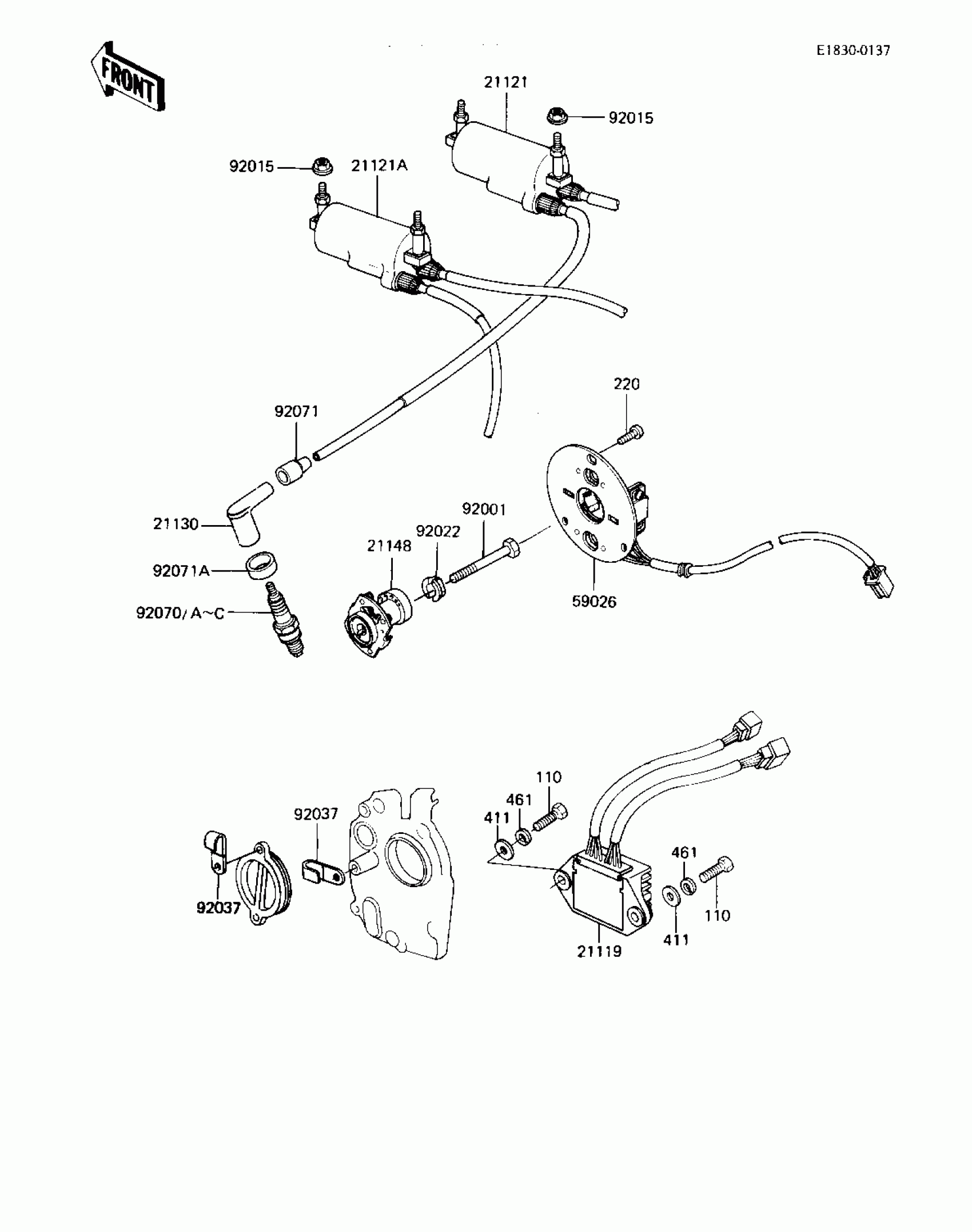

1983 Kawasaki LTD Shaft Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1040

1

$1,116.27

In stock

21121

COIL,IGNITION #1/4

21121-1035

1

$151.55

In stock

21121A

COIL,IGNITION,#2/3

21121-1036

1
Out of stock

21130

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

21148

ADVANCER,

21148-1016

1
Out of stock

59026

COIL,PULSING

59026-1009

1
Out of stock

92001

BOLT,8X63

92001-1397

1

$4.27

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

92037

1

$3.75

In stock

92070A

SPARK PLUG D8EA

D8EA

1
Out of stock

92070B

1

$9.24

In stock

92071

1

$3.39

In stock

92071A

1

$3.81

In stock

110

BOLT-UPSET

112G0618

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
