1983 Kawasaki LTD Shaft Headlight Diagram

← All diagrams

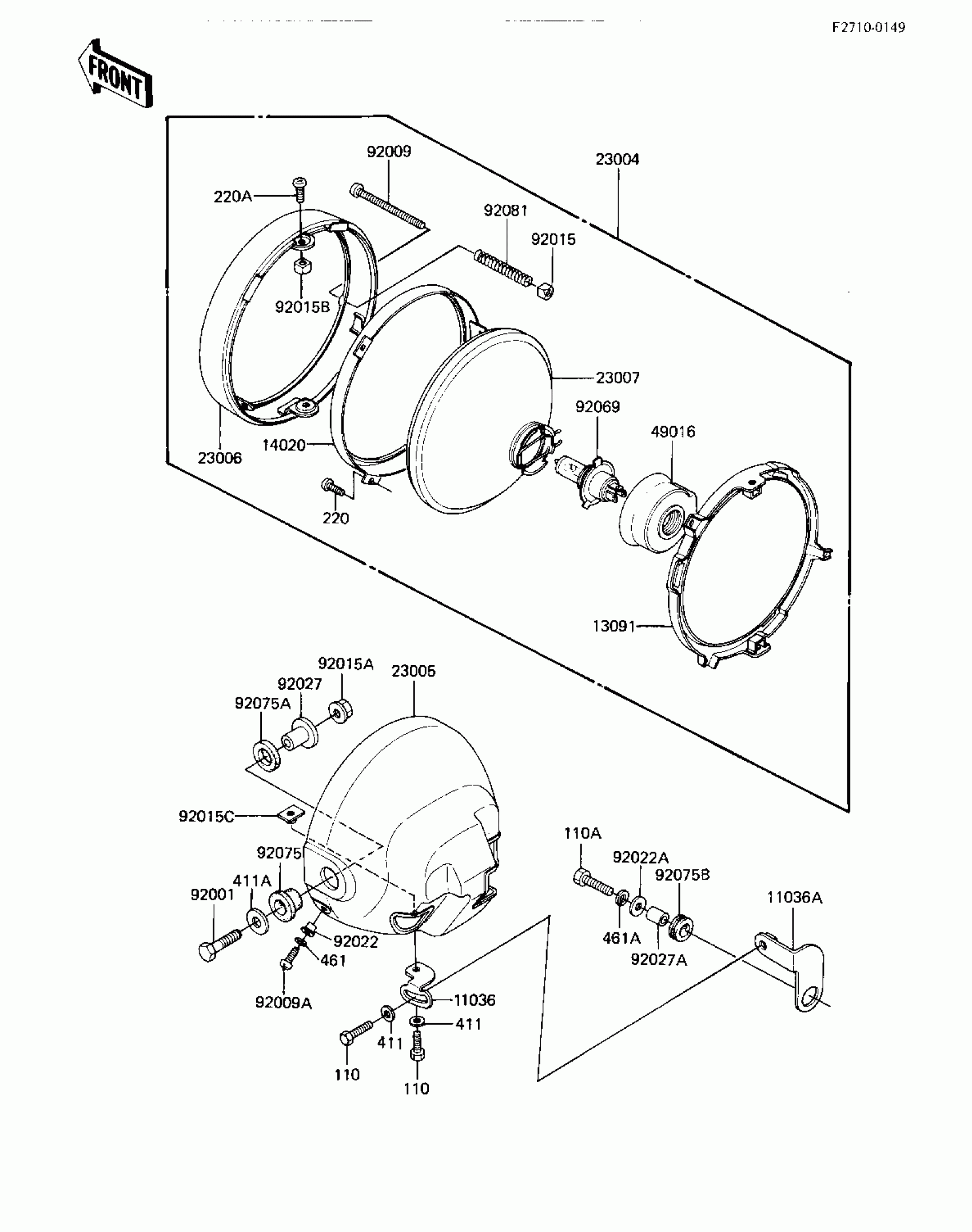

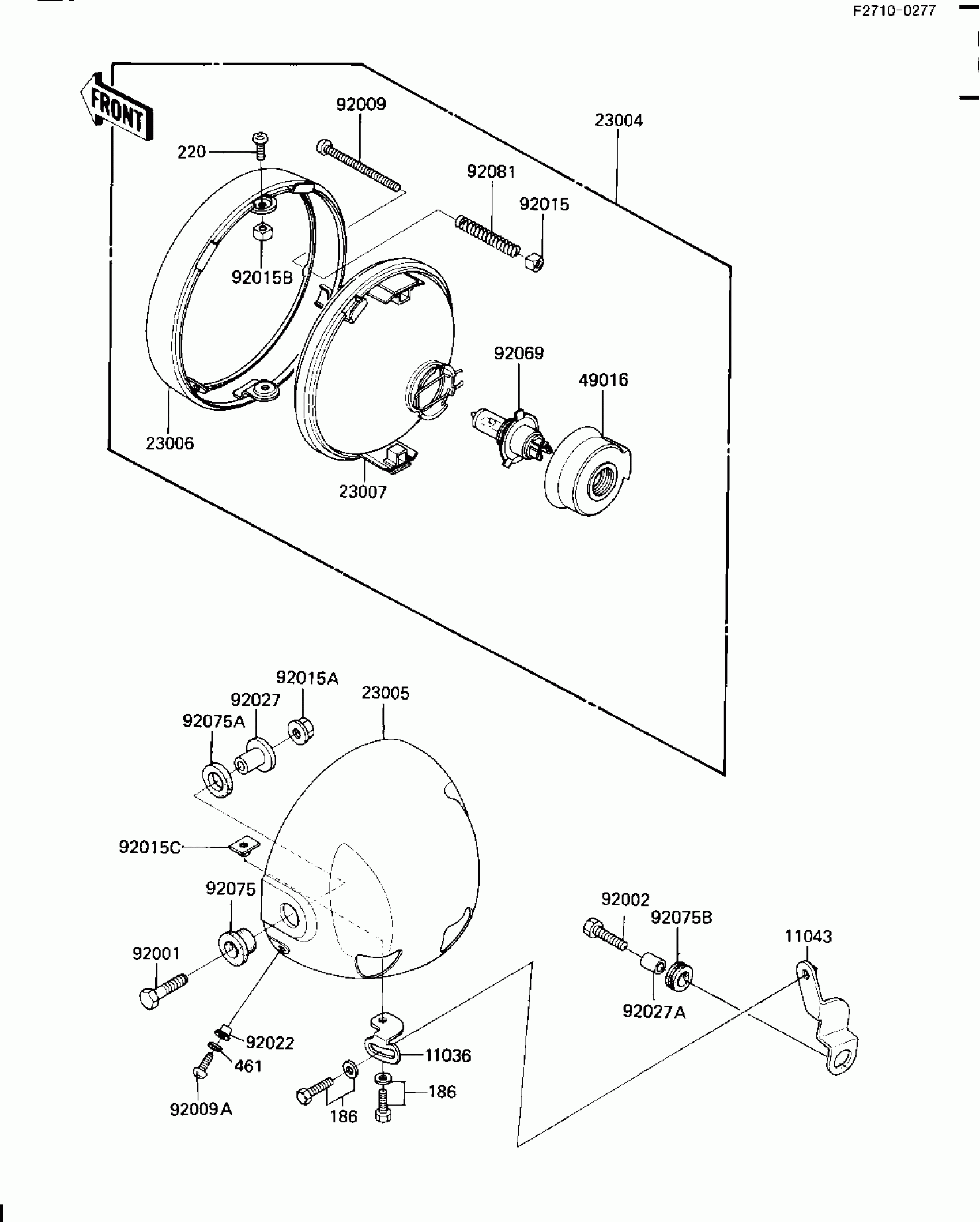

Find the part on the Headlight diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,HEAD LAMP

11036-1649

1
Out of stock

11036A

BRACKET-A

11036-1650

1
Out of stock

13091

HOLDER,HEAD LAMP

13091-1160

1
Out of stock

14020

RETAINER,HEAD LAMP

14020-1018

1
Out of stock

23004

LAMP-HEAD

23004-1087

1

$361.04

In stock

23005

1

$115.56

In stock

23006

RIM-LAMP,CR PLATED

23006-1020

1

$65.92

In stock

23007

1

$163.61

In stock

49016

COVER-SEAL

49016-1016

1
Out of stock

92001

BOLT 8X38

92001-1405

1

$13.05

In stock

92009

SCREW,4X52

92009-1033

1
Out of stock

92009A

SCREW,5MM

92011-024

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015B

NUT,5MM

92015-1157

1
Out of stock

92015C

NUT,6MM,HEAD LAMP

92015-1231

1
Out of stock

92022

WASHER

23021-010

1

$3.43

In stock

92022A

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92075B

1

$3.72

In stock

92081

1

$3.19

In stock

110

BOLT-UPSET 6X14

112B0614

1
Out of stock

110A

BOLT-UPSET

112G0625

1
Out of stock

220

1

$0.63

In stock

220A

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

411A

WASHER-PLAIN,8MM

411D0800

1

$2.49

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
