1983 Kawasaki LTD Shaft Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

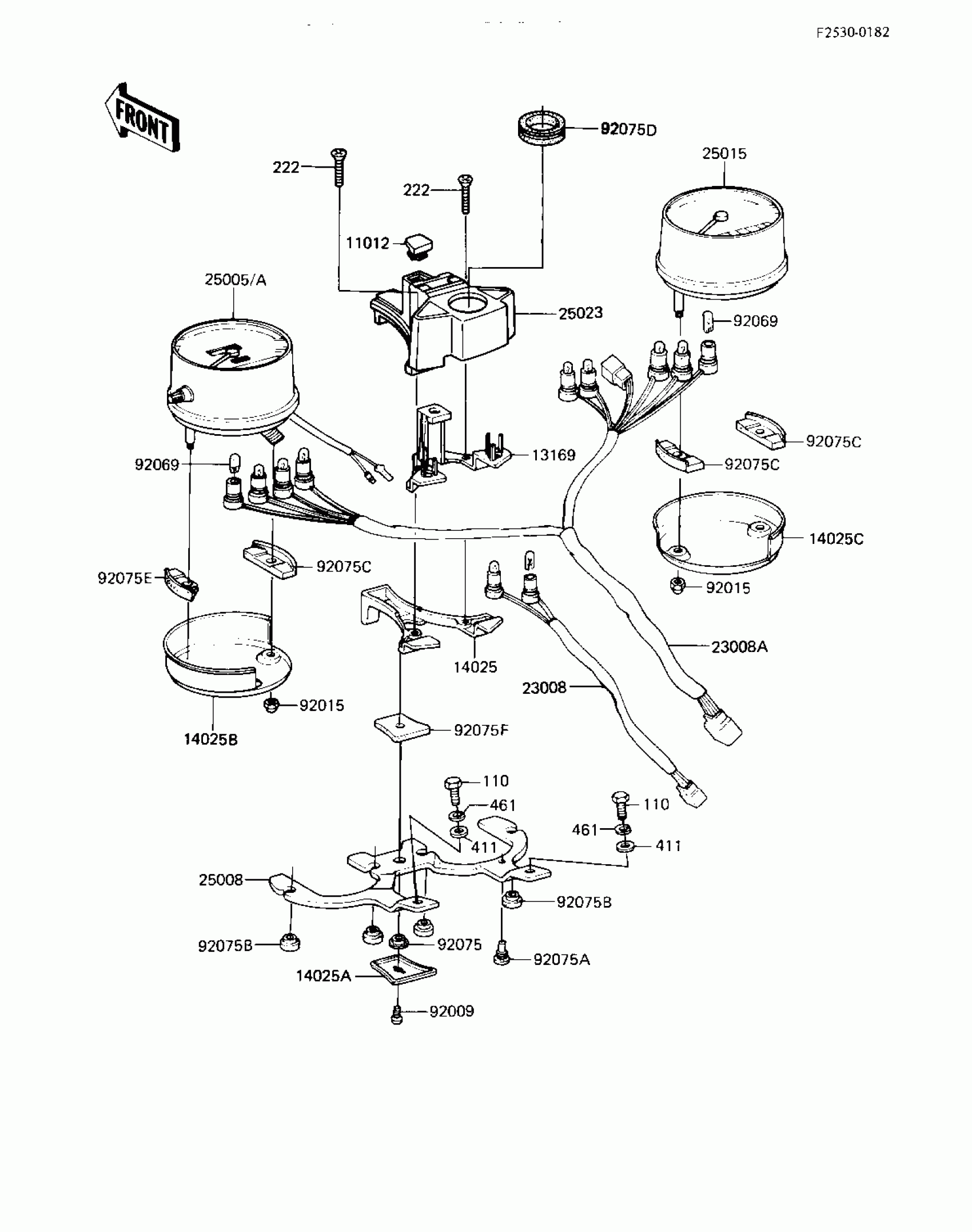

1983 Kawasaki LTD Shaft Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,METER

11012-1279

1
Out of stock

13169

PLATE,SOCKET

13169-1512

1
Out of stock

14025

COVER,PILOT BOX,LWR

14025-1474

1
Out of stock

14025A

COVER,METER BRACKET

14025-1477

1
Out of stock

14025B

COVER,SPEEDOMETER

14025-1562

1
Out of stock

14025C

COVER,TACHOMETER

14025-1563

1
Out of stock

23008

1

$60.88

In stock

23008A

SOCKET-ASSY,METER

23008-1168

1

$140.38

In stock

25005

SPEEDOMETER,MPH

25005-1198

1

$634.91

In stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1200

1
Out of stock

25008

BRACKET-METER

25008-1049

1

$68.00

In stock

25015

TACHOMETER,X1000RPM

25015-1132

1

$436.96

In stock

25023

COVER-METER CASE

25023-1037

1

$174.20

In stock

92009

SCREW,TAPPING,4X10

92009-1040

1
Out of stock

92015

NUT-CAP,5MM

322N0500

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

DAMPER,METER

25019-023

1

$3.42

In stock

92075A

DAMPER,METER

92075-1149

1
Out of stock

92075B

DAMPER,METER FITTING

92075-1150

1
Out of stock

92075C

DAMPER,METER

92075-1192

1
Out of stock

92075D

DAMPER RUBBER

92075-1256

1
Out of stock

92075E

DAMPER RUBBER,METER

92075-1265

1

$13.54

In stock

92075F

DAMPER,PILOT BOX

92075-1386

1

$7.03

In stock

110

BOLT, 6X14, BLACK

112C0614

1
Out of stock

222

SCREW-CSK-RD-CROS

222C0425

1
Out of stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

461

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock
