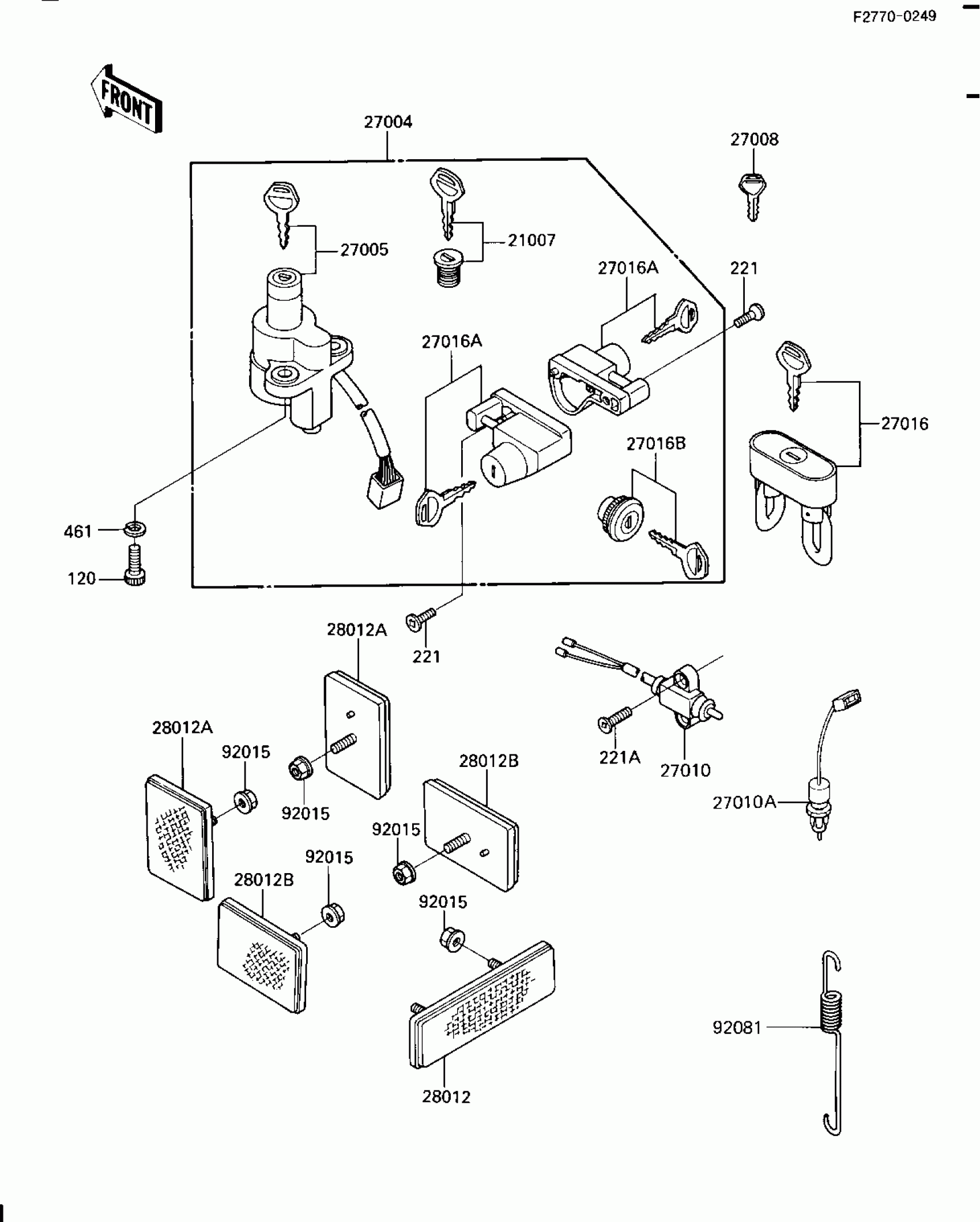

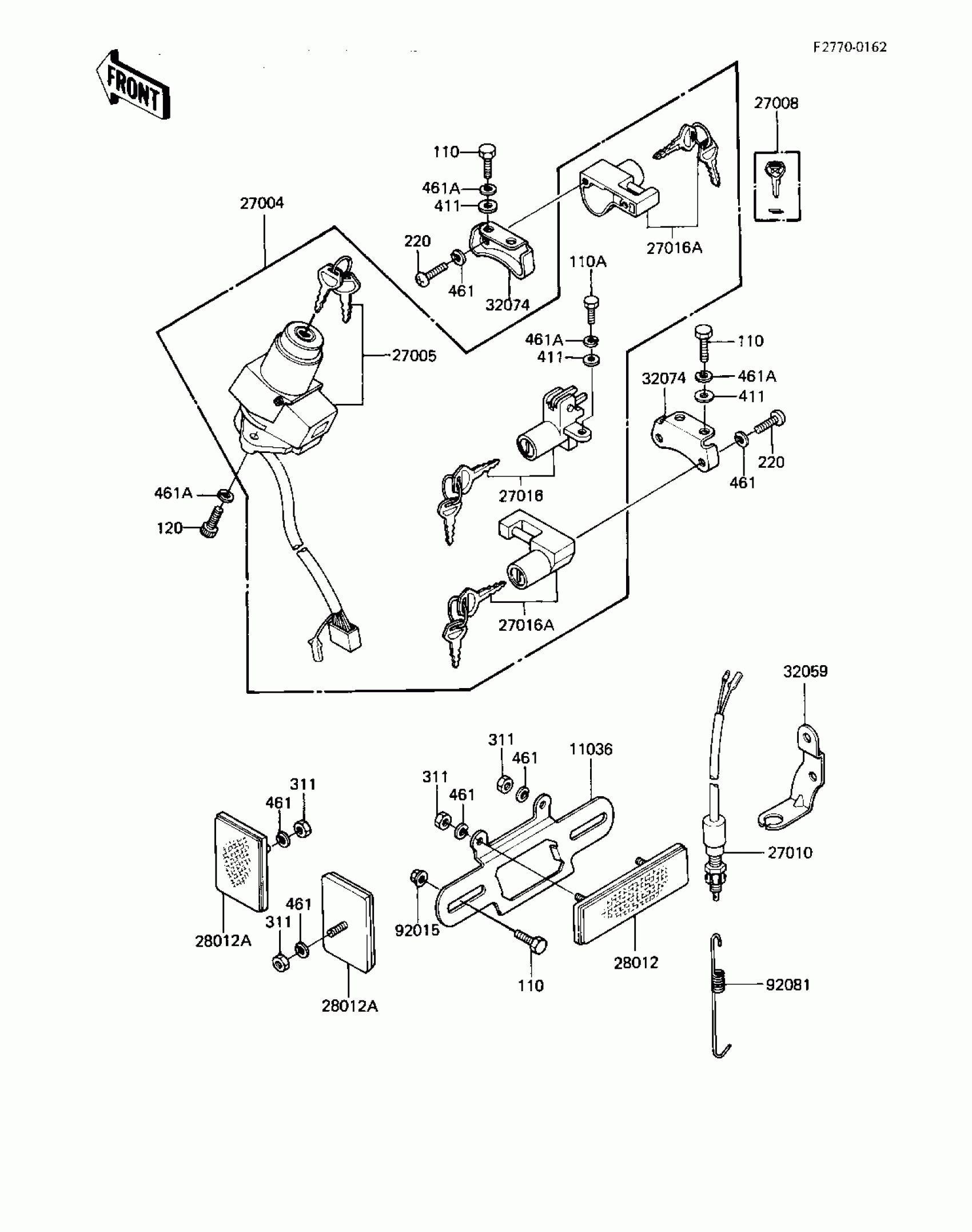

Find the part on the Ignition Switch/locks/reflectors diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET,REFLECTOR,RR

11036-1150

1
Out of stock

27004

SWITCH-ASSY

27004-5150

1

$586.30

In stock

27005

1

$196.81

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,REAR BRAKE

27010-1019

1

$37.98

In stock

27016

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

27016A

LOCK ASSY,HELMET

27016-5038

1
Out of stock

28012A

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

32059

BRACKET-SWITCH

32059-1024

1

$8.66

In stock

32074

BRACKET-LOCK

32074-1041

1

$5.34

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92081

1

$2.92

In stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT-UPSET 6X14

112B0614

1
Out of stock

120

BOLT-SOCKET,6X16

120Q0616

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
