1981 Kawasaki KZ1300-A3 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

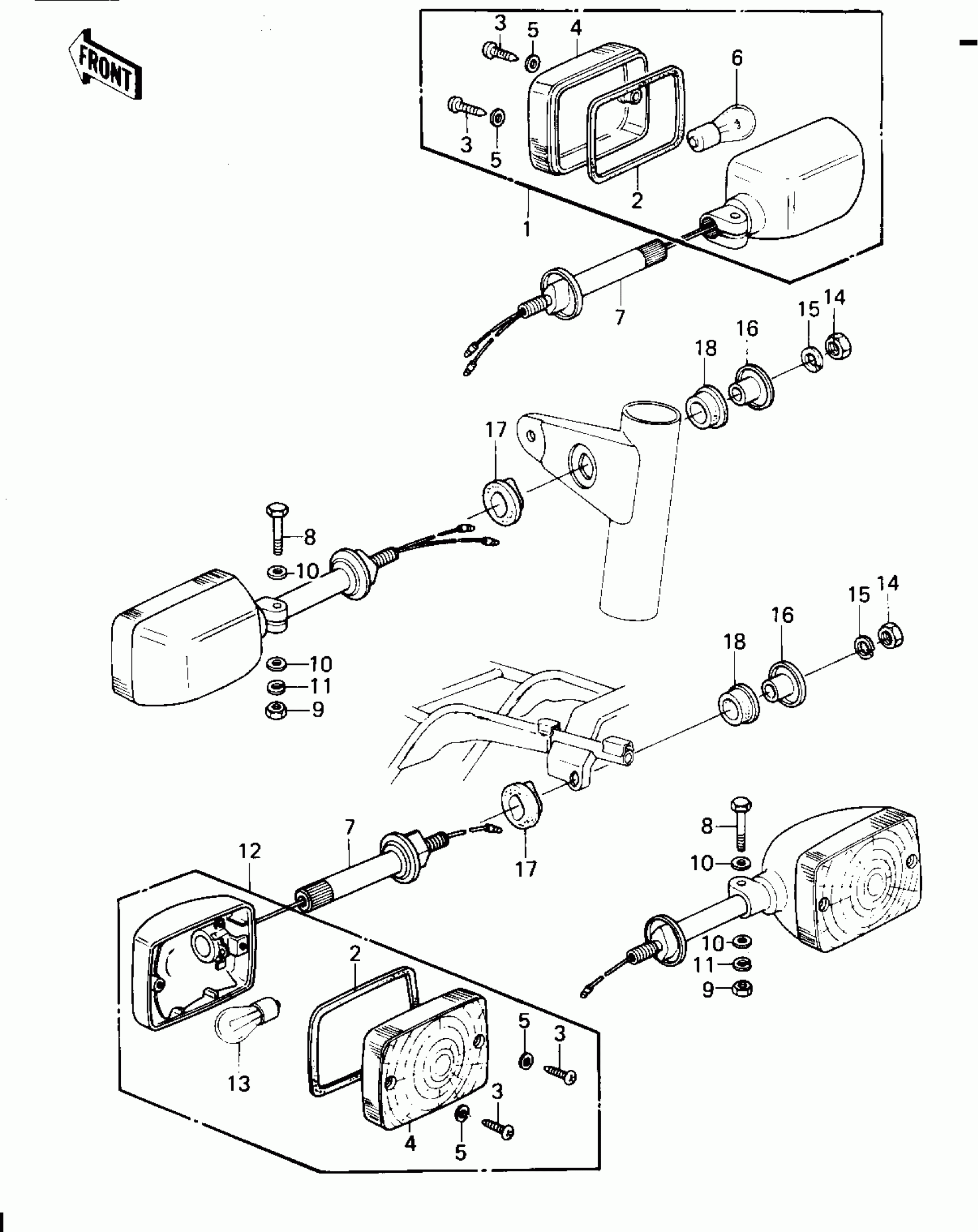

1981 Kawasaki KZ1300-A3 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,TURN SIGNAL

23040-1021

1
Out of stock

2

GASKET,TURN SIGNAL

11009-1102

1
Out of stock

3

SCREW,PAN HEAD,4X16

220E0416A

1
Out of stock

4

LENS SIGNAL LAMP FR

23048-1020

1
Out of stock

5

WASHER,PLAIN,4MM

23058-002

1
Out of stock

6

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

7

BRACKET,TURN SIGNAL

23051-1023

1
Out of stock

8

BOLT-UPSET

112G0630

1
Out of stock

9

NUT 6MM

311B0600

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

LAMP,ASSY,TURN SIGNAL

23040-1022

1
Out of stock

13

BULB,12V 32CP(23W)

92069-055

1
Out of stock

15

WASHER SPRING 10MM

461F1000

1
Out of stock

16

COLLAR

92027-147

1
Out of stock

17

DAMPER,LAMP

92075-128

1
Out of stock

18

DAMPER RUBBER,SIG LM

92075-158

1
Out of stock
