1981 Kawasaki KZ1300-A3 Battery Case/electro Bracket Diagram

← All diagrams

Find the part on the Battery Case/electro Bracket diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

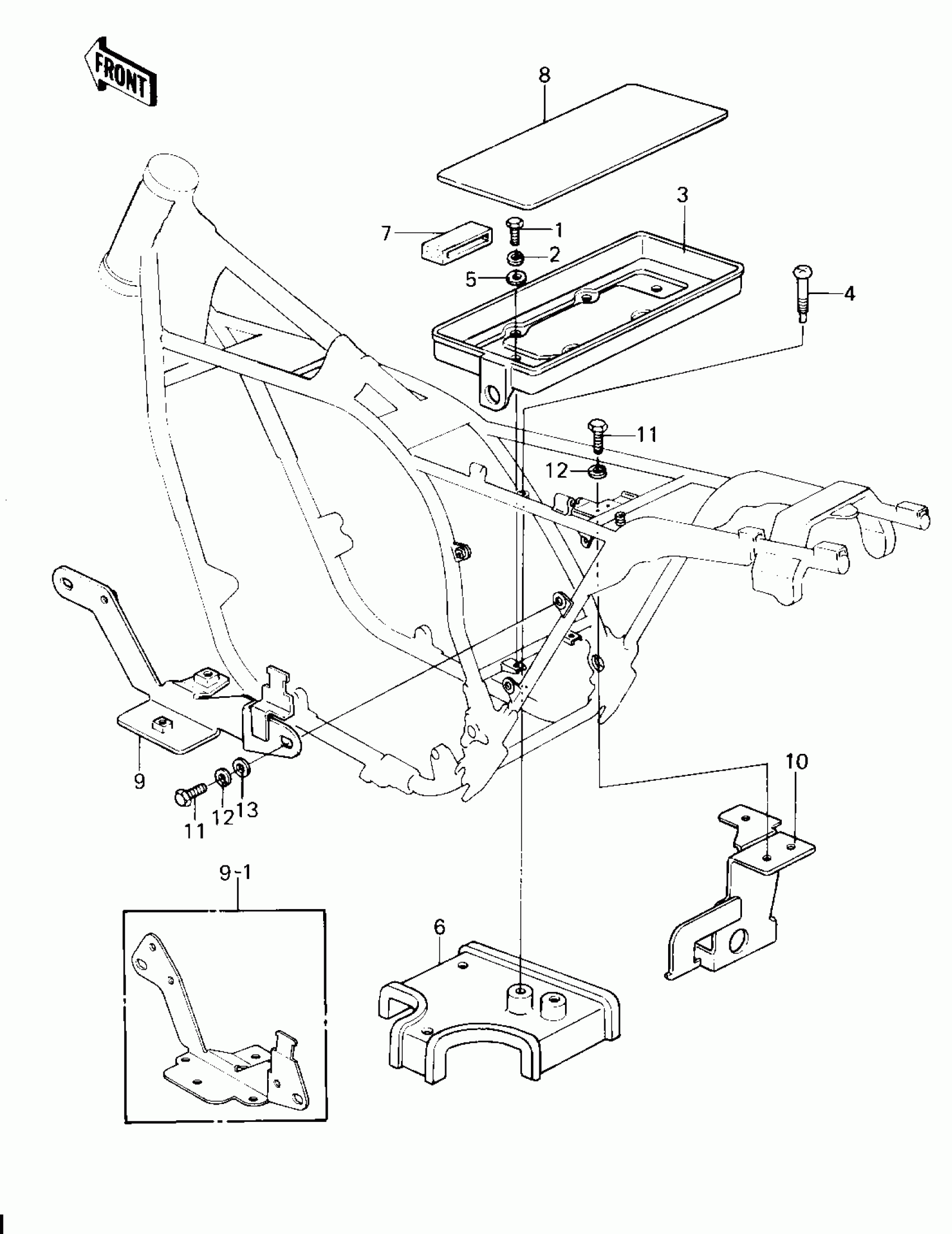

1981 Kawasaki KZ1300-A3 Battery Case/electro Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET,6X16

112G0616

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

CASE,BATTERY

32097-1015

1
Out of stock

4

SCREW,6X38

92009-1042

1
Out of stock

5

WASHER,6.5X20X1.6

92022-125

1
Out of stock

6

BAND,BATTERY

92072-1021

1
Out of stock

7

DAMPER,BATTERY

92075-1099

1
Out of stock

8

DAMPER,BATTERY

92075-1105

1
Out of stock

9

BRACKET,BASE

11034-1262

1
Out of stock

9

BRACKET,ELECTRO BASE

11034-1843

1
Out of stock

9-1

BRACKET,ELECTRO BASE

11034-1843

1
Out of stock

10

BRACKET,BASE

11034-1316

1
Out of stock

11

BOLT-UPSET,6X12

112G0612

1
Out of stock

12

WASHER SPRING 6MM

461F0600

1
Out of stock

13

WASHER PLAIN 6MM

411B0600

1
Out of stock
