1981 Kawasaki KZ1300-A3 Generator/regulator Diagram

← All diagrams

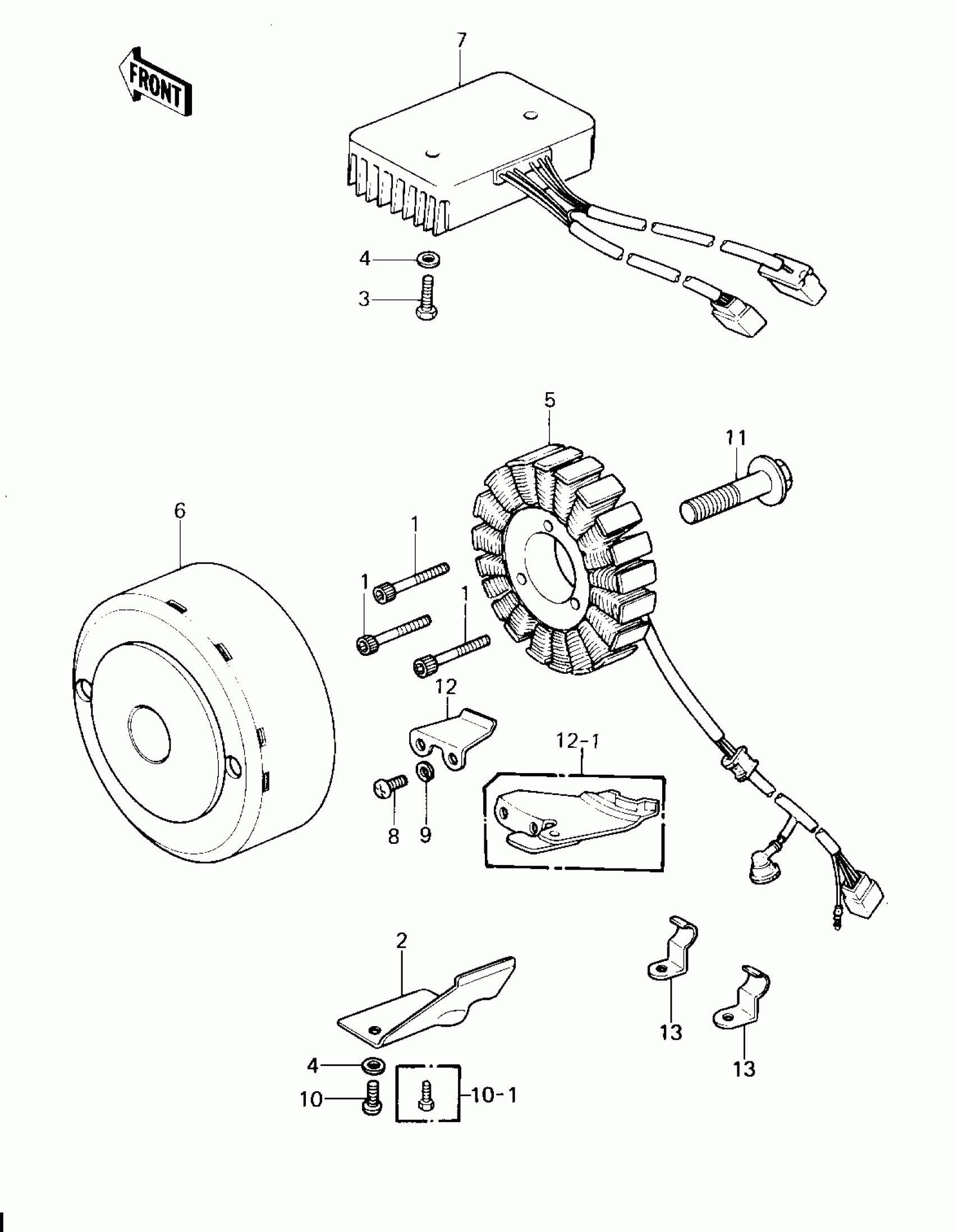

Find the part on the Generator/regulator diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,SOCKET,5X30

120Q0530A

1
Out of stock

1

BOLT,SOCKET,5X35

120Q0535A

1
Out of stock

2

COVER,GENERATOR LEAD

14025-1153

1
Out of stock

3

BOLT-UPSET

112G0625

1
Out of stock

3

BOLT-UPSET 6X14

112B0614

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

STATOR ASSY

21003-1020

1
Out of stock

5

STATOR ASSY

21003-1035

1
Out of stock

6

ROTOR

21007-1015

1
Out of stock

6

ROTOR

21007-1029

1
Out of stock

7

REGULATOR,VOLTAGE

21066-1007

1
Out of stock

7

REGULATOR,VOLTAGE

21066-1015

1
Out of stock

8

SCREW-PAN-CROS

220B0512

1
Out of stock

9

WASHER SPRING 5MM

461F0500

1
Out of stock

10

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

10-1

BOLT,6X10

112G0610

1
Out of stock

11

BOLT,10X40

92001-1201

1
Out of stock

12

CLAMP,GENERATOR LEAD

92037-1098

1
Out of stock

12

CLAMP,GENERATOR LEAD

92037-1098

1
Out of stock

12-1

CLAMP,GENERATOR LEAD

92037-1207

1
Out of stock

13

CLAMP,LEAD WIRE

92037-1345

1
Out of stock
