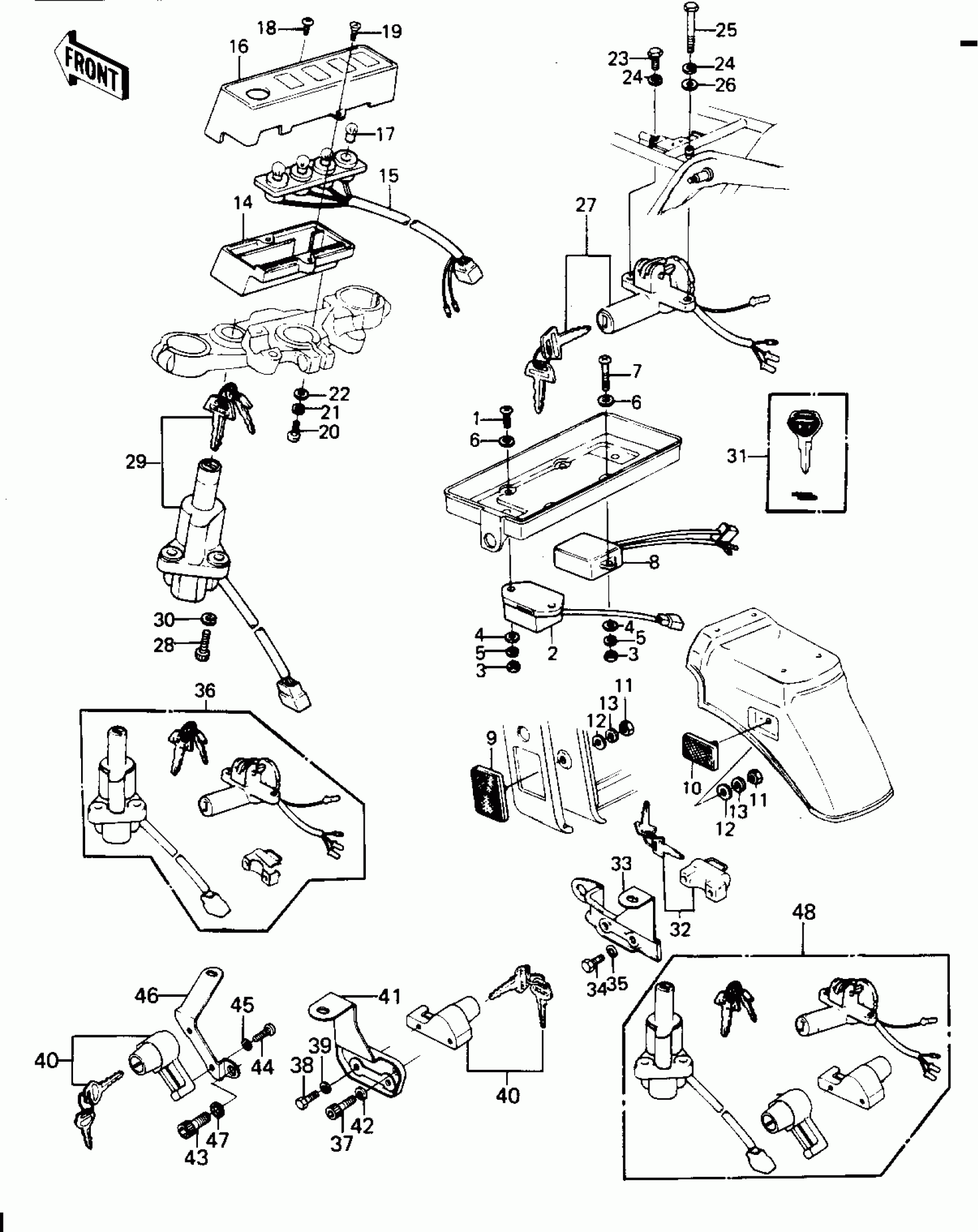

Find the part on the Ignition Switch/locks/reflectors diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

2

SWITCH,RESERVE LIGHTI

27010-1024

1
Out of stock

3

NUT 6MM

311B0600

1
Out of stock

3

NUT,LOCK 6MM

92017-014

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

WASHER SPRING 6MM

461F0600

1
Out of stock

6

WASHER PLAIN

92022-024

1
Out of stock

7

SCREW PAN HEAD 6X35

220B0635

1
Out of stock

8

SWITCH,TURN SIGNAL OP

27010-1016

1
Out of stock

9

REFLECTOR-REFLEX

28012-1003

1
Out of stock

10

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

11

NUT-HEX

311B0500

1
Out of stock

12

WASHER-PLAIN,5MM

411B0500

1
Out of stock

13

WASHER SPRING 5MM

461F0500

1
Out of stock

14~19

LAMP ASSY,PILOT

23016-1014

1
Out of stock

14

COVER,PILOT LAMP,LOWE

14025-1117

1
Out of stock

15

SOCKET ASSY,PILOT LAM

23008-1041

1
Out of stock

16

COVER,PILOT LAMP,UPPE

25023-1014

1
Out of stock

17

BULB 12V 3W

92069-018

1
Out of stock

18

SCREW,TAPPING,3.5X10

92009-1073

1
Out of stock

19

SCREW,CNTSNK HED,4X10

92009-1074

1
Out of stock

20

SCREW PAN HEAD 5X16

220B0516A

1
Out of stock

21

WASHER SPRING 5MM

461F0500

1
Out of stock

22

WASHER-PLAIN,5MM

411B0500

1
Out of stock

23

BOLT-UPSET,6X12

112G0612

1
Out of stock

24

WASHER SPRING 6MM

461F0600

1
Out of stock

25

BOLT-UPSET

112G0645

1
Out of stock

26

WASHER PLAIN 6MM

411B0600

1
Out of stock

27

LOCK ASSY,SEAT

27016-5027

1
Out of stock

28

BOLT,SOCKET,8X22

120P0822

1
Out of stock

29

IGNITION&STEERING ASY

27016-5026

1
Out of stock

30

WASHER SPRING 8MM

461F0800

1
Out of stock

31

KEY-LOCK,BLANK

27008-1103

—
Out of stock

32

LOCK ASSY,HELMET

27016-5030

1
Out of stock

33

BRACKET,HELMET LOCK

32074-1009

1
Out of stock

34

BOLT SMALL

114G0812

1
Out of stock

35

WASHER SPRING 5MM

461F0500

1
Out of stock

36

SWITCH-ASSY

27004-5371

1
Out of stock

37

BOLT-SOCKET,6X10

120S0610

1
Out of stock

38

BOLT HEX HEAD 5X10

110B0510

1
Out of stock

39

WASHER SPRING 5MM

461F0500

1
Out of stock

40

LOCK ASSY,HELMET

27016-5036

1
Out of stock

41

BRACKET-LOCK,HLMT,RH

32074-1021

1
Out of stock

42

WASHER SPRING 6MM

461F0600

1
Out of stock

42

WASHER SPRING 6MM

461F0600

1
Out of stock

43

BOLT-SOCKET

120S0814

1
Out of stock

44

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

45

WASHER SPRING 5MM

461F0500

1
Out of stock

46

BRACKET-LOCK,HLMT,LH

32074-1020

1
Out of stock

47

WASHER SPRING 8MM

461F0800

1
Out of stock

48

SWITCH-ASSY

27004-5371

1
Out of stock
