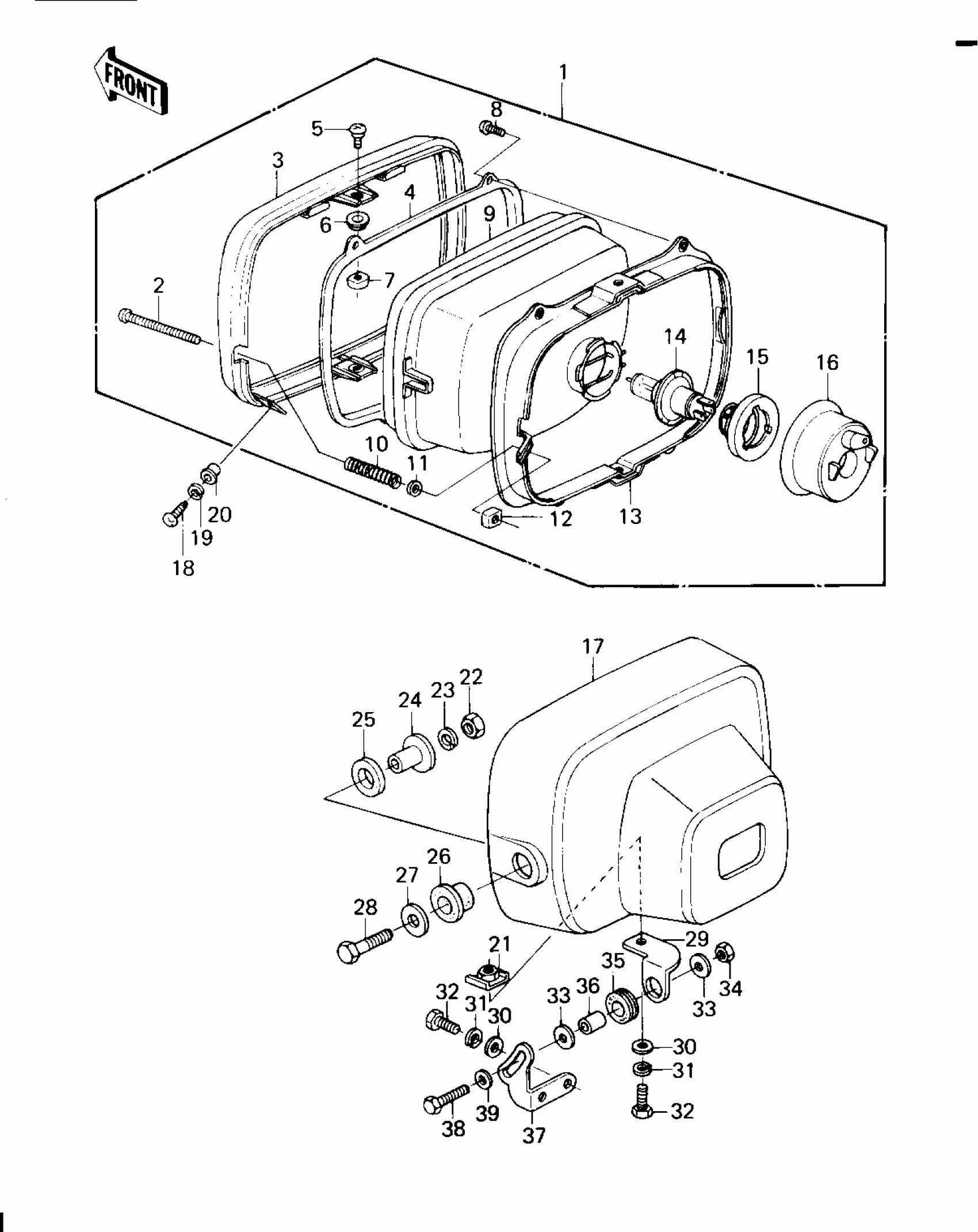

Find the part on the Headlight diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP-HEAD

23004-1075

1
Out of stock

2

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

3

RIM,HEAD LAMP

23006-1005

1
Out of stock

4

RETAINER,HEAD LAMP

14020-1005

1
Out of stock

5

SCREW,PAN HEAD,5X12

23019-023

1
Out of stock

6

WASHER,PLAIN,5MM

23021-012

1
Out of stock

7

NUT,5MM

23020-023

1
Out of stock

8

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

9

LENS UNIT,HEAD LAMP

23007-1013

1
Out of stock

10

SPRING,HEAD LAMP LENS

92081-1103

1
Out of stock

11

WASHER,4.1X8X0.8

23021-004

1
Out of stock

12

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

13

HOLDER,HEAD LAMP MOUN

13091-1035

1
Out of stock

14

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

15

HOLDER,HEAD LAMP SOCK

13091-1036

1
Out of stock

16

COVER,HEAD LAMP SOCKE

49016-1023

1
Out of stock

17

BODY-COMP-HEAD LAMP,

23005-1024-21

1
Out of stock

18

SCREW,5MM

92011-024

1
Out of stock

19

WASHER SPRING 5MM

461F0500

1
Out of stock

20

WASHER

23021-010

1
Out of stock

21

NUT,HEAD LAMP BODY FT

92015-1050

1
Out of stock

22

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

23

WASHER SPRING 8MM

461F0800

1
Out of stock

24

COLLAR,L=20

92027-1131

1
Out of stock

25

DAMPER,HEAD LAMP FITTING

92075-1110

1
Out of stock

26

DAMPER,HEAD LAMP FITTING

92075-1109

1
Out of stock

27

WASHER-PLAIN,8MM

411D0800

1
Out of stock

28

BOLT 8X38

92001-1405

1
Out of stock

28

BOLT 8X38

92001-1405

1
Out of stock

29

BRACKET,HEAD LAMP BDY

11034-1289

1
Out of stock

30

WASHER PLAIN 6MM

411B0600

1
Out of stock

31

WASHER SPRING 6MM

461F0600

1
Out of stock

32

BOLT-UPSET,6X16

112G0616

1
Out of stock

33

WASHER,6.5X20X1.6

92022-125

1
Out of stock

34

NUT,LOCK 6MM

92017-014

1
Out of stock

35

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

36

COLLAR

92027-241

1
Out of stock

37

BRACKET,HEAD LAMP BDY

11034-1290

1
Out of stock

37

BRACKET,HEAD LAMP

11036-1042

1
Out of stock

38

BOLT-UPSET

112G0630

1
Out of stock

39

WASHER PLAIN 6MM

411B0600

1
Out of stock
