1981 Kawasaki KZ1300-A3 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

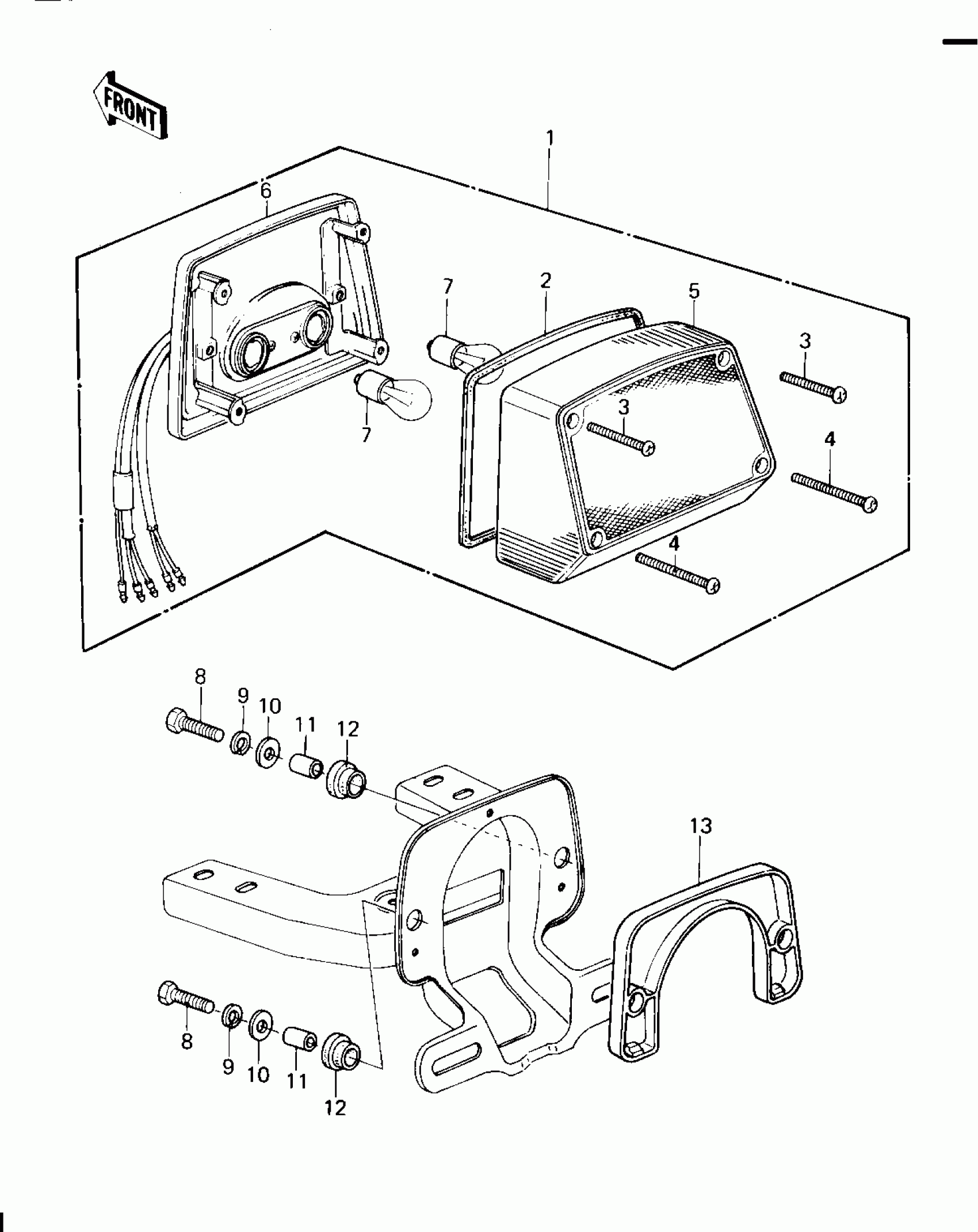

1981 Kawasaki KZ1300-A3 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,TAIL

23025-1007

1
Out of stock

2

GASKET,TAIL LAMP LENS

11009-1098

1
Out of stock

2

GASKET,TAIL LAMP LENS

11009-1098

1
Out of stock

3

SCREW,PAN HEAD,4X45

220E0445A

1
Out of stock

4

SCREW-PAN-CROS

220R0460

1
Out of stock

5

LENS,TAIL LAMP

23026-1004

1
Out of stock

6

BODY,TAIL LAMP

23027-1003

1
Out of stock

7

BULB,12V 27/8W

92069-059

1
Out of stock

8

BOLT-UPSET

112G0625

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

WASHER,6.5X20X1.6

92022-125

1
Out of stock

11

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

12

DAMPER RUBBER

92075-1092

1
Out of stock

13

DAMPER,TAIL LAMP

92075-1111

1
Out of stock
