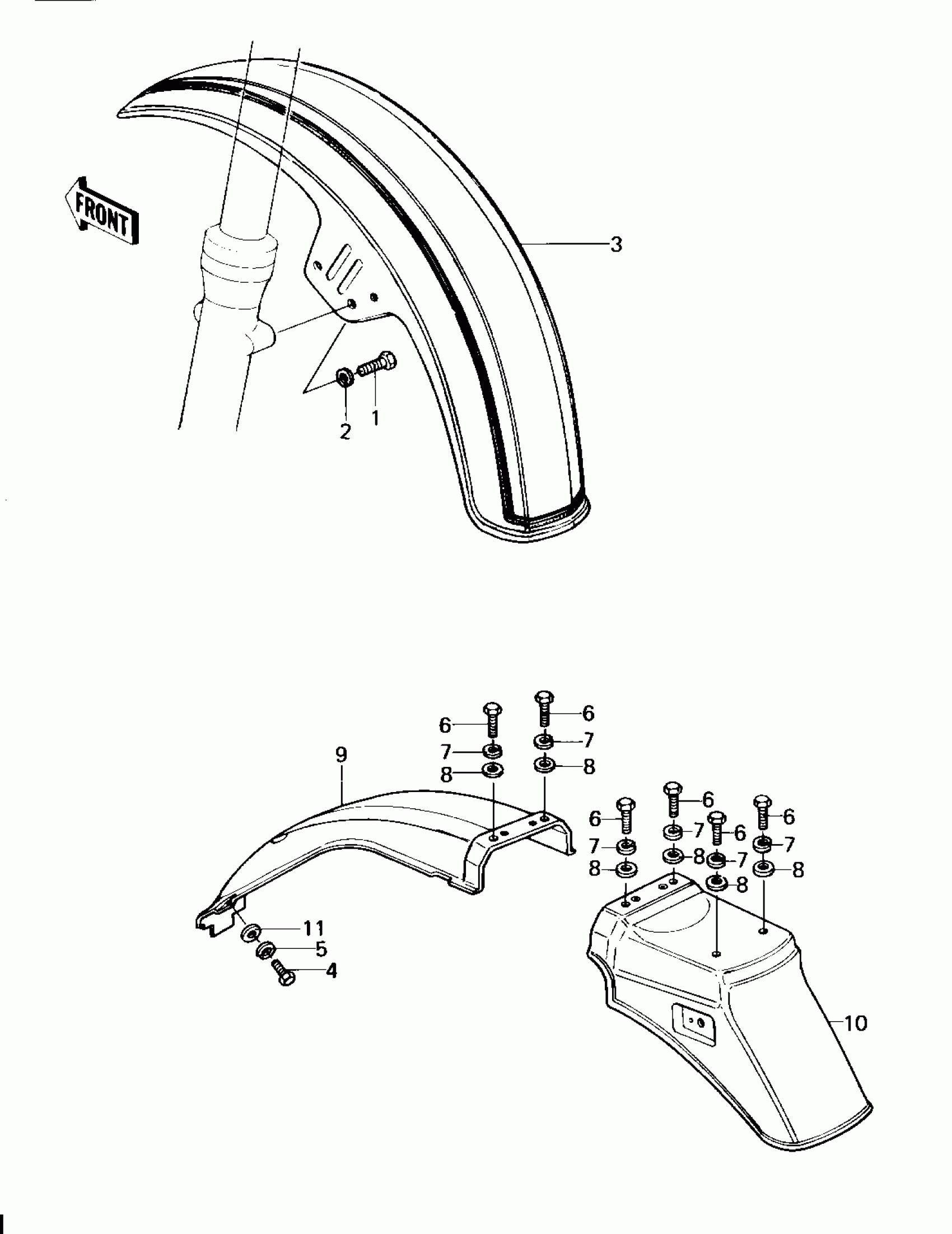

Kawasaki KZ1300-A3 FENDERS Diagram

#

Description

Price

1

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

FENDER-FR,L.S.BLUE

35004-1027-C1

$243.19

3

FENDER-FR,EBONY

35004-1027-8G

$141.01

4

BOLT-UPSET 6X14

112B0614

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

BOLT-UPSET

112G0618

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

FENDER-RR

35022-1019

$108.85

10

FENDER-RR,BLACK

35022-1020-6Z

Unavailable

11

WASHER,6.5X20X1.6

92022-125

$1.08
