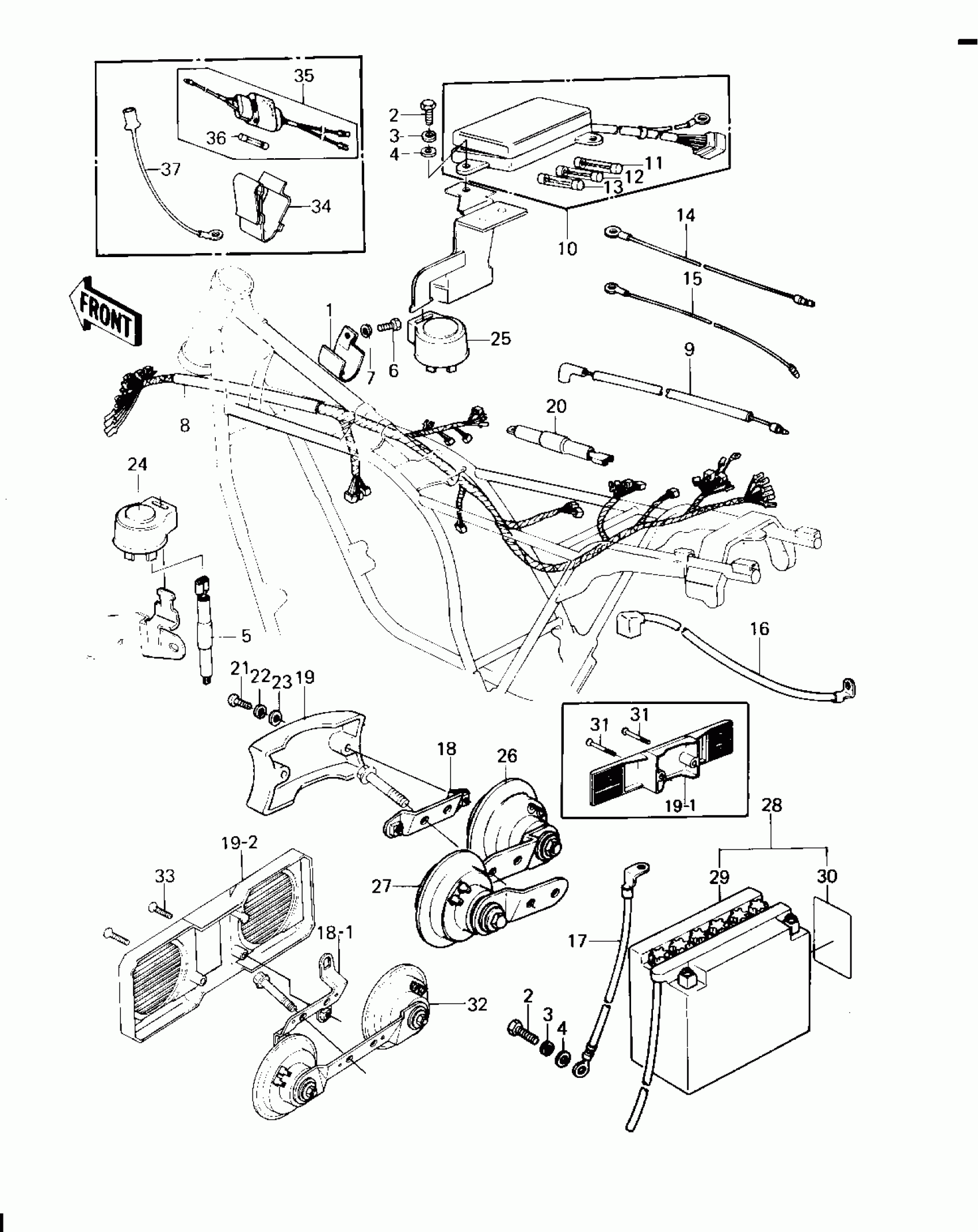

Find the part on the Chassis Electrical Equipment diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE,MAIN HARNESS

13070-1022

1
Out of stock

2

BOLT-UPSET,6X12

112G0612

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

WASHER PLAIN 6MM

411B0600

1
Out of stock

5

REGULATOR

21066-026

1
Out of stock

6

BOLT,6X10

112G0610

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

WIRING HARNESS,MAIN

26001-1063

1
Out of stock

8

WIRING HARNESS,MAIN

26001-1105

1
Out of stock

8

WIRING HARNESS,MAIN

26001-1171

1
Out of stock

8

WIRING HARNESS,MAIN

26001-1171

1
Out of stock

8

HARNESS,MAIN

26001-1195

1
Out of stock

9

WIRING HARNESS,SUB

26001-1064

1
Out of stock

10

FUSE ASSY

26004-1009

1
Out of stock

11

FUSE,2A,L=25M/M

26006-1004

1
Out of stock

12

FUSE,10A,L=25

26006-003

1
Out of stock

13

FUSE,30A,L=25

26006-1005

1
Out of stock

14

LEAD WIRE,SIGNAL LAMP

26011-063

1
Out of stock

14

WIRE-LEAD,L=285

26011-095

1
Out of stock

15

WIRE-LEAD,L=285

26011-095

1
Out of stock

16

WIRE,STARTER LEAD

26011-1037

1
Out of stock

17

WIRE,BATTERY GROUND

26011-1038

1
Out of stock

18

BRACKET,HARN FITTING

11034-1504

1
Out of stock

18-1

BRACKET,HORN COVER

11036-1028

1
Out of stock

19

COVER

14025-1156

1
Out of stock

19-1

COVER,HORN

14025-1200

1
Out of stock

19-2

COVER,HORN

14025-1310

1
Out of stock

20

REGULATOR

21066-026

1
Out of stock

21

SCREW-PAN-CRSOSS,4X1

220B0412

1
Out of stock

22

WASHER SPRING 4MM

461F0400

1
Out of stock

23

WASHER PLAIN 4MM

410B0400

1
Out of stock

24

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

25

RELAY,TURN SIGNAL

27002-016

1
Out of stock

26

HORN

27003-1009

1
Out of stock

27

HORN

27003-1012

1
Out of stock

28

YUA BAT Y50-N18L-A2

26012-1012

1
Out of stock

29

26012-1012 (Canada)

26012-1019

1
Out of stock

30

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

31

SCREW,CNTSNK 4X35

92009-1089

1
Out of stock

32

HORN

27003-1037

1
Out of stock

33

SCREW-CSK

221C0430

1
Out of stock

34

HOLDER,ACCESSORY FUSE

13091-1102

1
Out of stock

35

FUSE-ASSY,ACCESSORY

26004-1014

1
Out of stock

36

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

1
Out of stock

37

WIRE-LEAD,ACCESSORY GROUND

26011-1100

1
Out of stock
