2004 Kawasaki KX250F Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

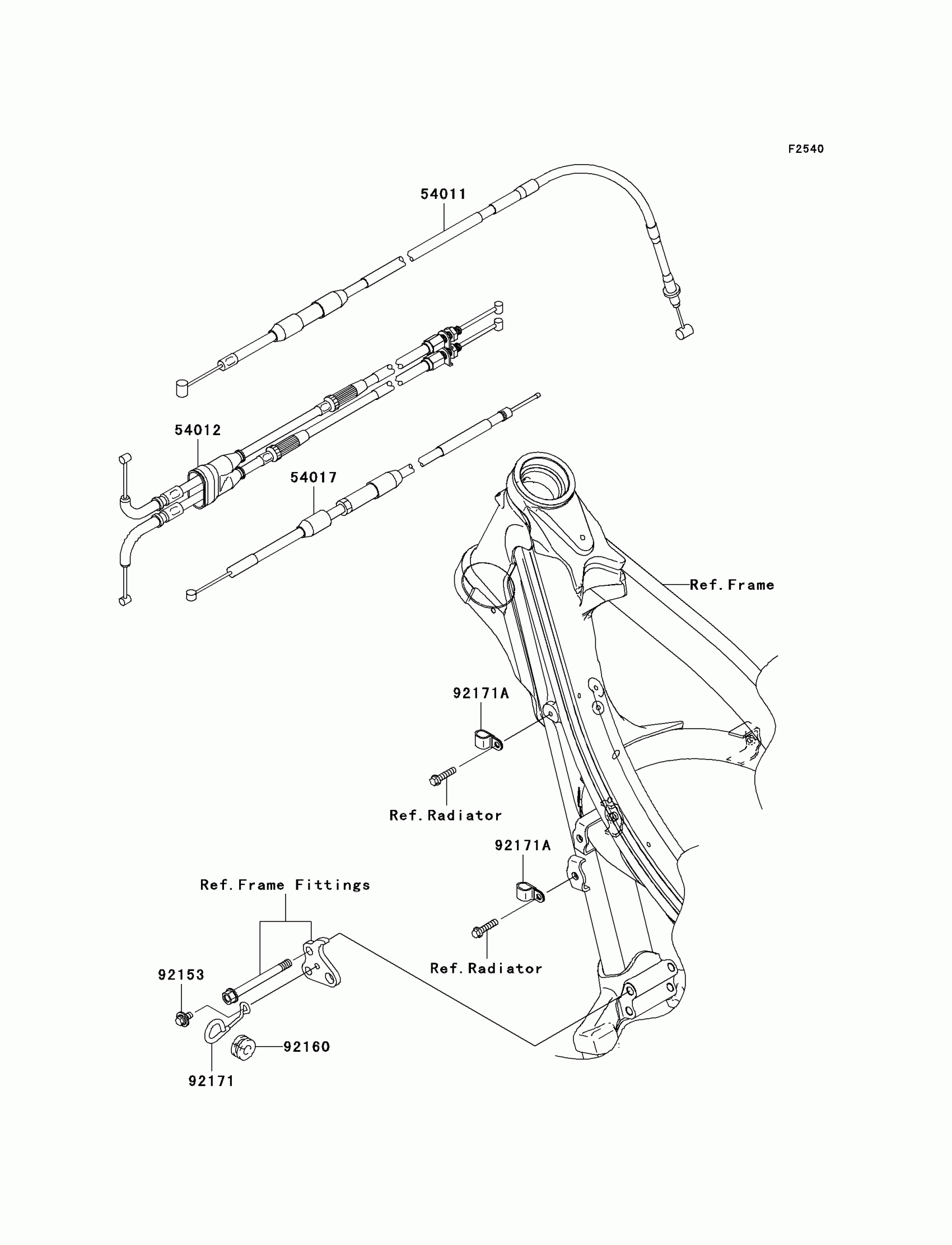

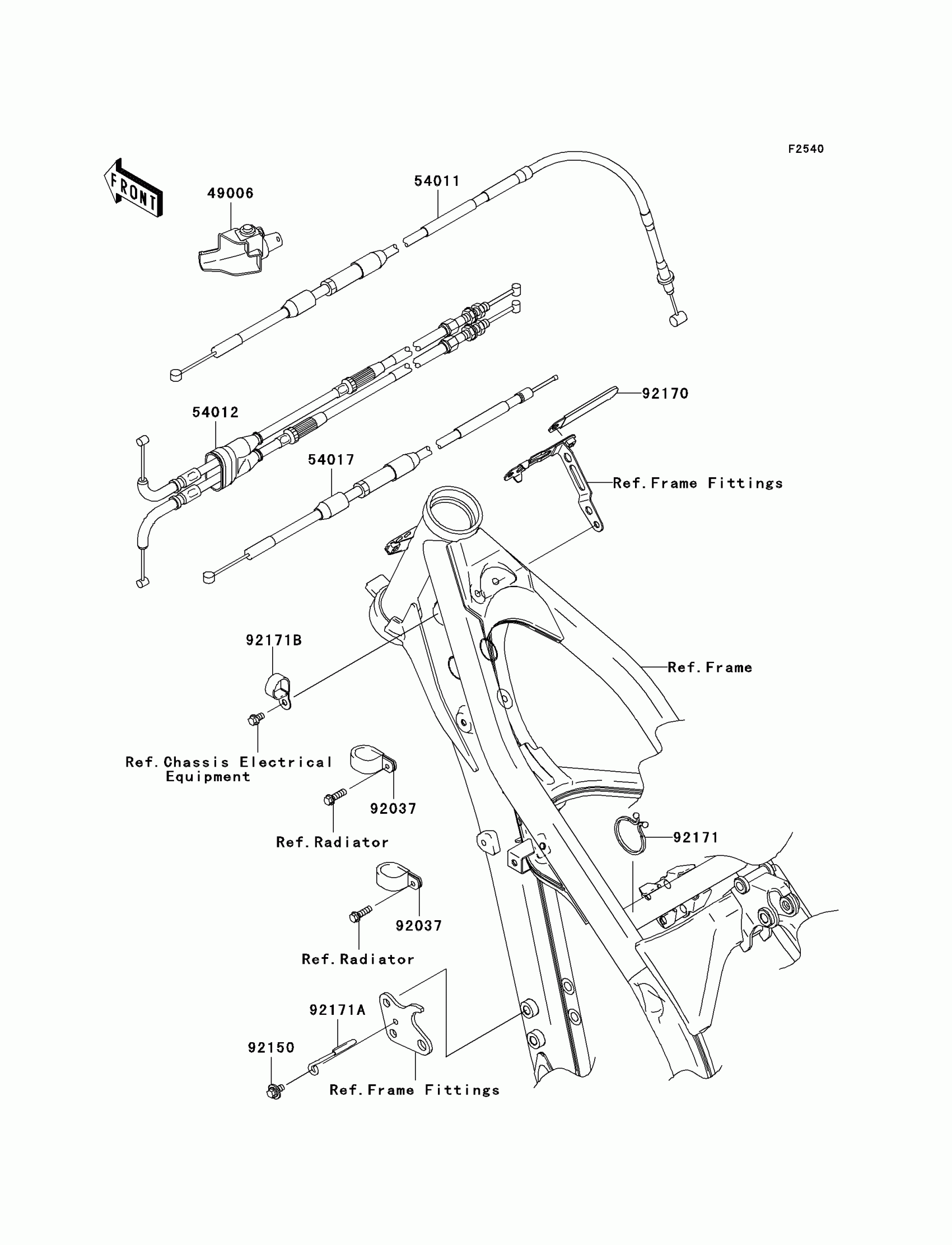

2004 Kawasaki KX250F Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49006

BOOT,CLUTCH LEVER

49006-0014

1

$14.68

In stock

54011

CABLE-CLUTCH

54011-0019

1
Out of stock

54012

CABLE-THROTTLE

54012-0119

1

$57.53

In stock

54017

CABLE-STARTER

54017-0011

1

$38.90

In stock

92037

CLAMP

92037-1608

1

$6.44

In stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP,CABLE

92171-0226

1

$7.88

In stock

92171A

CLAMP,CABLE

92171-0253

1

$4.22

In stock

92171B

CLAMP

92171-1279

1

$8.93

In stock
