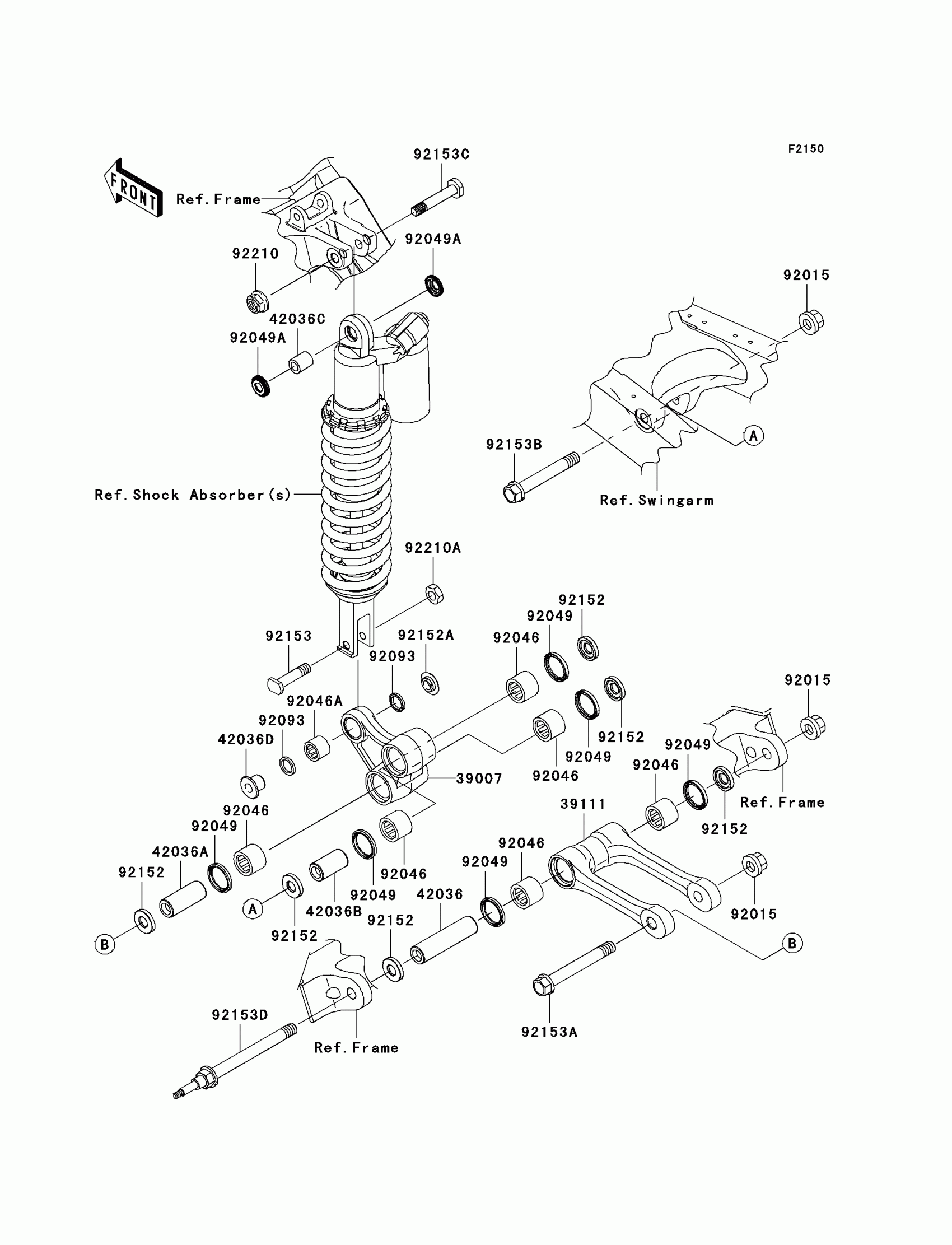

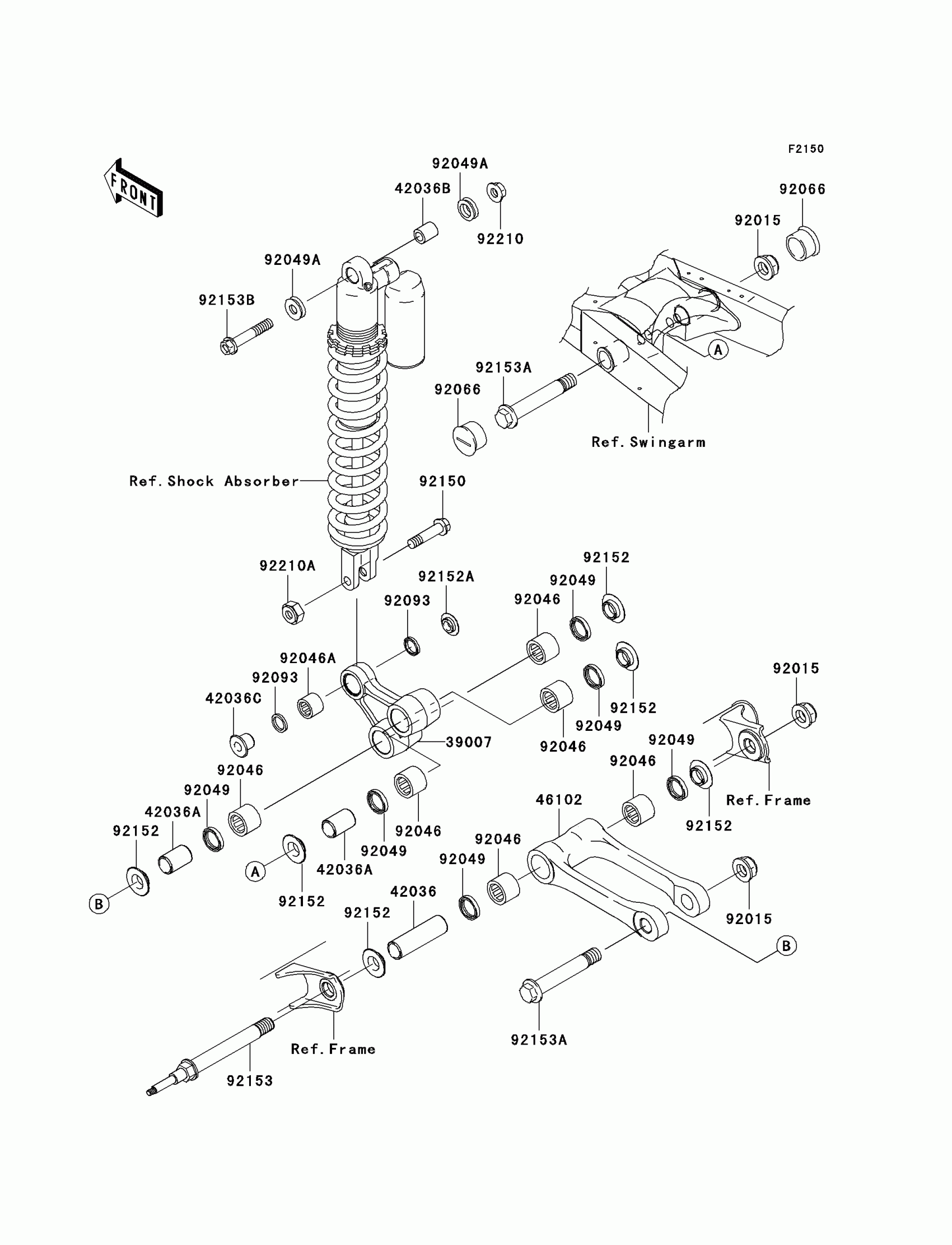

Find the part on the Rear Suspension diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0001

1

$283.58

In stock

42036

SLEEVE,15X20X80

42036-0014

1

$17.47

In stock

42036A

SLEEVE,15X20X41.8

42036-0015

1

$19.19

In stock

42036B

SLEEVE,10X16X19

42036-1248

1

$7.86

In stock

42036C

SLEEVE

42036-1351

1

$8.94

In stock

46102

ROD,SUSPENSION

46102-0008

1

$91.65

In stock

92015

NUT,FLANGED,14MM

92015-1401

1

$9.03

In stock

92046

BEARING-NEEDLE,F-2016

92046-1151

1
Out of stock

92046A

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL,HF020N3-A

92049-0027

1
Out of stock

92049A

SEAL-OIL

92049-1330

1
Out of stock

92066

PLUG,SWING ARM,F.BLACK

92066-0026-6Z

1

$5.42

In stock

92093

SEAL

92093-1436

1

$5.77

In stock

92150

BOLT,FLANGED,10X42

92150-1571

1

$9.12

In stock

92152

COLLAR

92152-0108

1

$7.87

In stock

92152A

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,14MM,L=116

92153-0367

1
Out of stock

92153A

BOLT,14MM,L=92

92153-0429

1
Out of stock

92153B

BOLT,FLANGED,10X56

92153-0581

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
