2004 Kawasaki KX250F Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

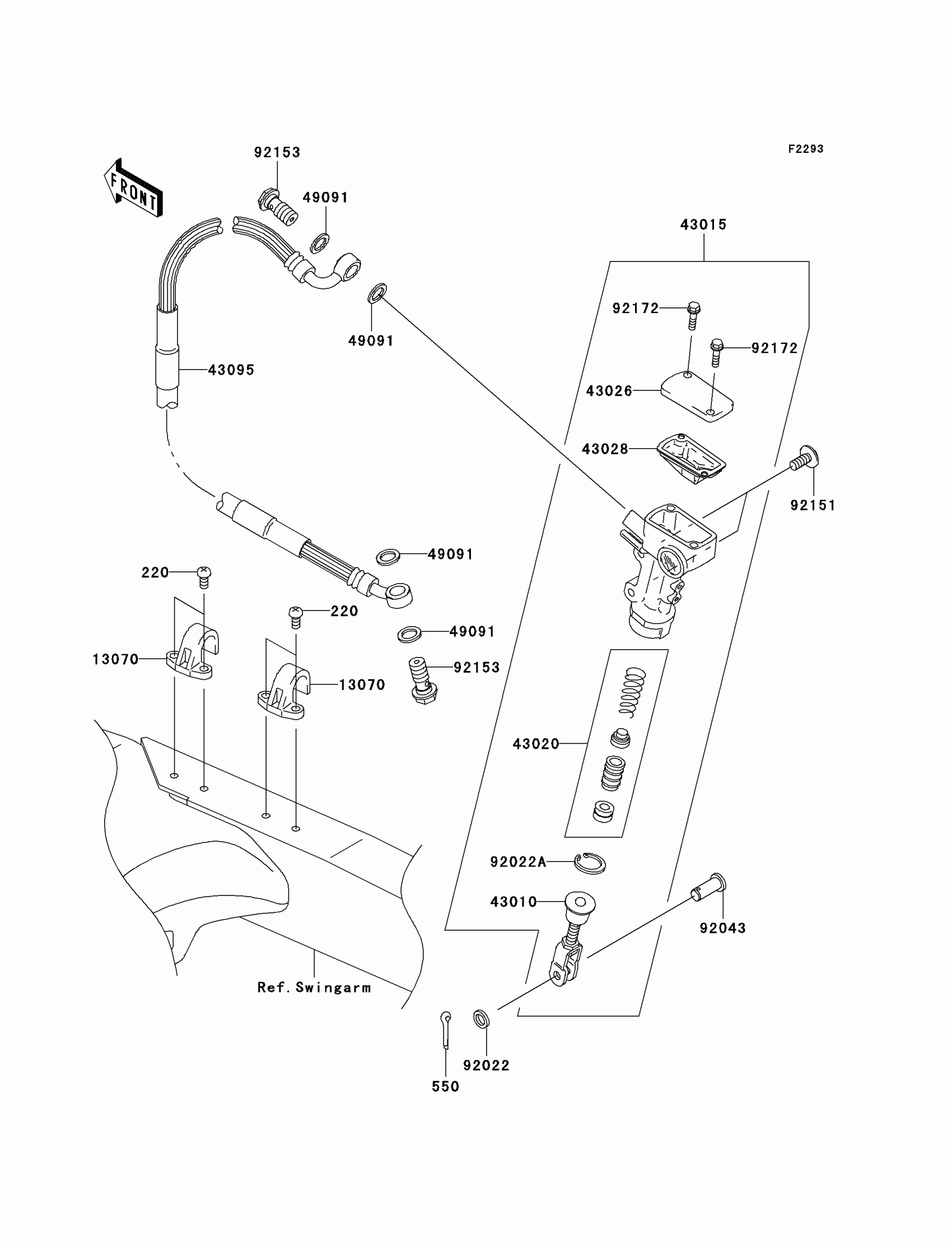

2004 Kawasaki KX250F Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0614

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

13070

GUIDE,BRAKE HOSE

13070-1388

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1087

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0004

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1086

1
Out of stock

43028

DIAPHRAGM

43028-1092

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

43095

HOSE-BRAKE,RR

43095-0024

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92172

SCREW

92172-1064

1
Out of stock
