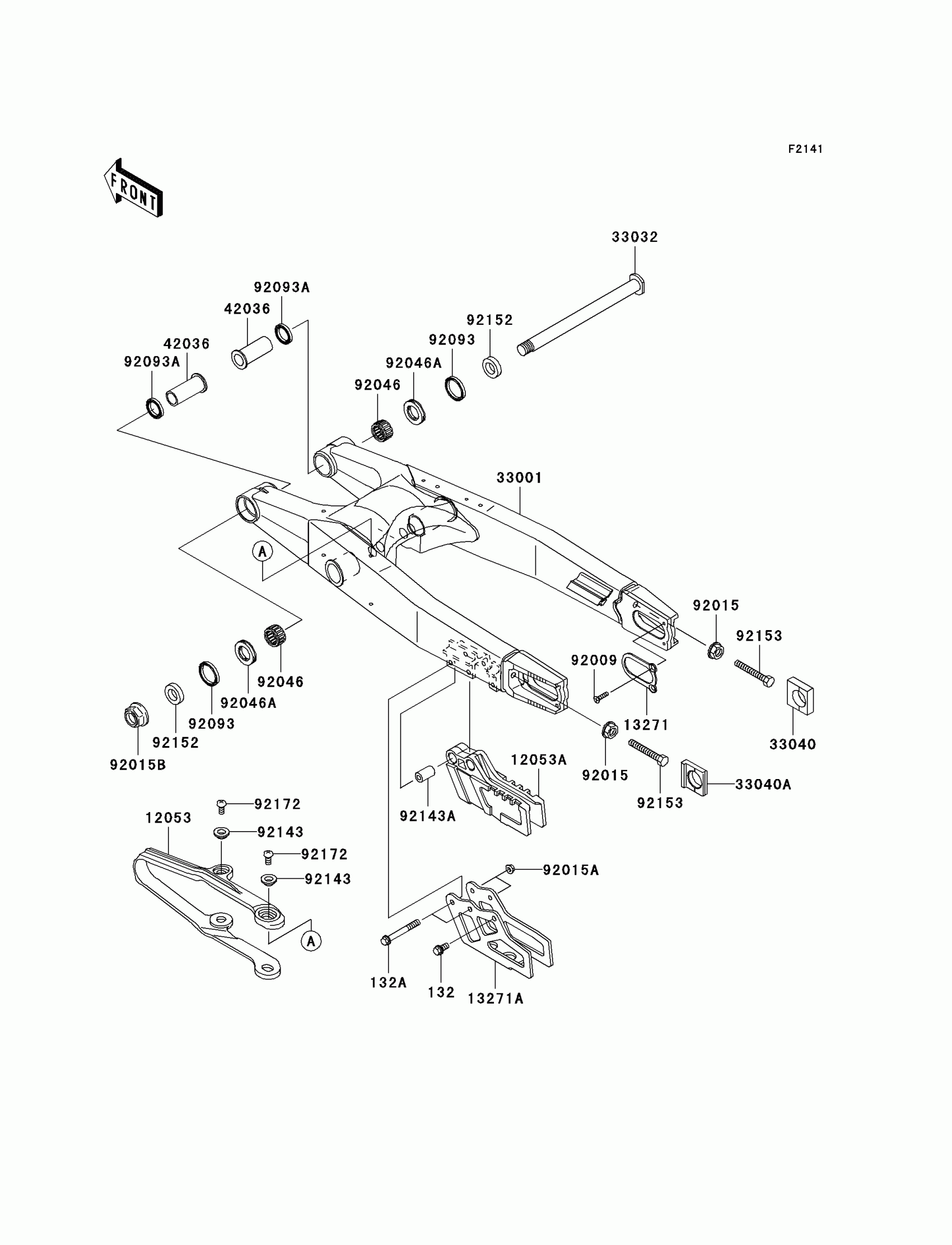

Kawasaki KX250F Swingarm Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL

132G0650

Unavailable

12053

GUIDE-CHAIN,DRIVE,FR

12053-0019

Unavailable

12053A

GUIDE-CHAIN

12053-1468

$73.67

13271

PLATE,AXLE

13271-1833

$16.19

13271A

PLATE,CHAIN GUIDE

13271-1834

$54.06

33001

ARM-COMP-SWING,P.SILVER

33001-0002-458

$1,020.34

33032

SHAFT-SWING ARM

33032-1189

$52.04

33040

ADJUSTER-CHAIN,RH

33040-0013

$13.86

33040A

ADJUSTER-CHAIN,LH

33040-1189

Unavailable

42036

SLEEVE,SWING ARM,L=46

42036-0003

Unavailable

92009

SCREW,5X10

92009-1828

$1.76

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015B

NUT,FLANGED,16MM

92015-1316

$19.50

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$32.96

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

$14.42

92093

SEAL,SDO29X35X4.5

92093-1434

$6.94

92093A

SEAL,SDO22X29X5

92093-1435

$6.70

92143

COLLAR

92143-1676

$4.67

92143A

COLLAR,6.5X14X24

92143-1867

Unavailable

92152

COLLAR,17.1X29X7.5

92152-1137

$6.46

92153

BOLT,8X56

92153-0620

$2.84

92172

SCREW,5X8

92172-0119

$1.54
