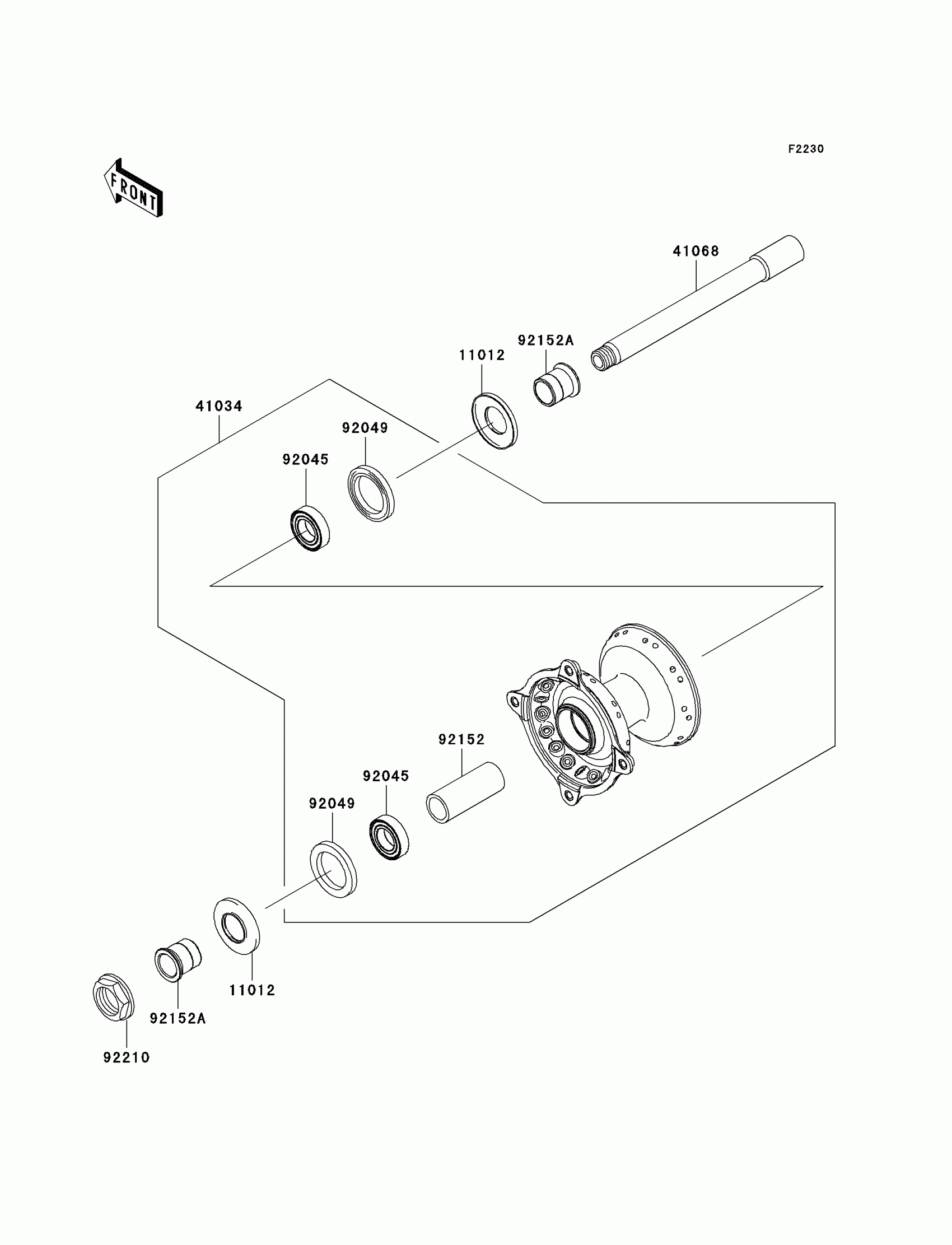

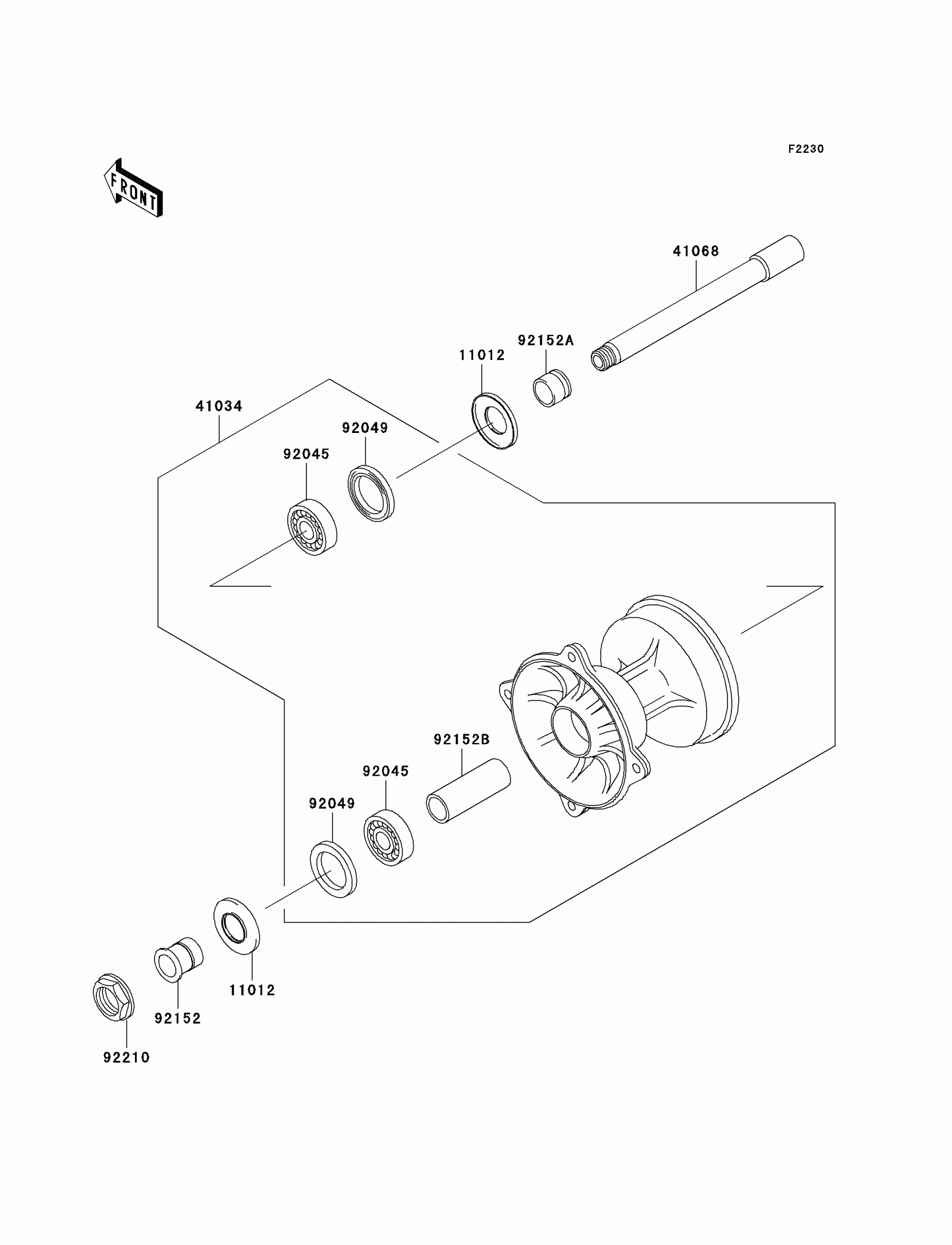

Kawasaki KX250F Front Hub Diagram

#

Description
Price

11012

CAP,AXLE

11012-1581

$4.88

41034

DRUM-ASSY,FRONT BRAKE

41034-0018

$311.87

41068

AXLE,FR

41068-0004

$68.46

92045

BEARING-BALL,69042RS

92045-1284

$26.04

92049

SEAL-OIL,BJNC-2 25X37X5

92049-1403

$15.97

92152

COLLAR,FR AXLE,LH,L=29

92152-0110

$14.24

92152A

COLLAR,FR AXLE,RH,L=19

92152-0111

$14.24

92152B

COLLAR,FRONT BRAKE DRUM,L=72

92152-1472

$24.44

92210

NUT,18MM

92210-0065

$7.73
