2004 Kawasaki KX250F Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

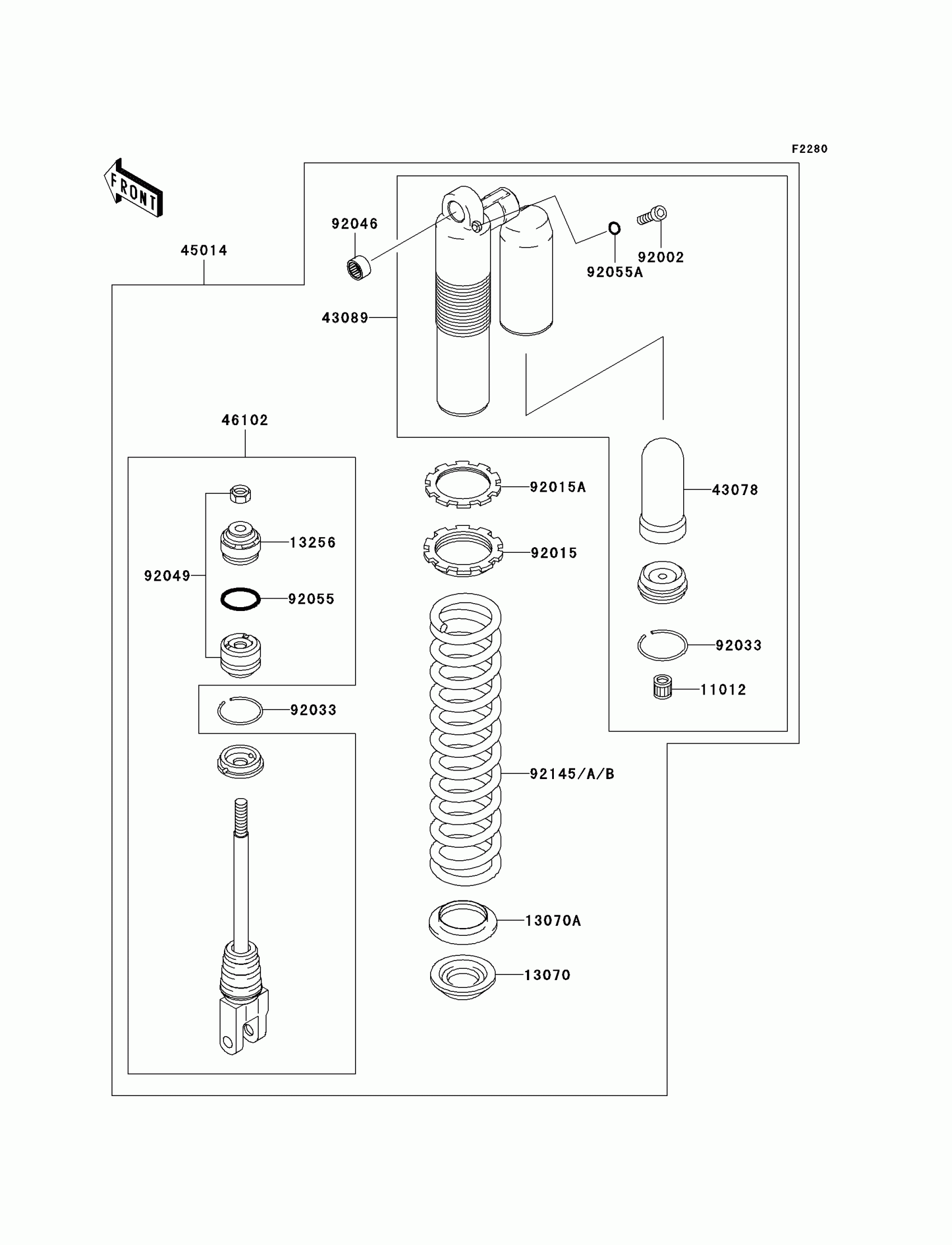

2004 Kawasaki KX250F Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AIR VALVE

11012-1552

1

$5.37

In stock

13070

GUIDE,SPRING

13070-0029

1

$21.03

In stock

13070A

GUIDE,SPRING

13070-1362

1

$34.31

In stock

13256

PISTON,SHOCKABSORBER

13256-0002

1
Out of stock

43078

1

$125.95

In stock

43089

1

$679.87

In stock

45014

SHOCKABSORBER,P.WHITE

45014-0023-EH

1

$1,446.31

In stock

46102

ROD,SHOCKABSORBER

46102-0028

1

$1,142.85

In stock

92002

BOLT,DRAIN

92002-1955

1
Out of stock

92015

NUT,SPRING ADJUST

92015-1703

1

$41.28

In stock

92015A

1

$38.81

In stock

92033

RING-SNAP

92033-1209

1

$7.31

In stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL

92049-0039

1
Out of stock

92055

RING-O,ROD

92055-1346

1

$9.92

In stock

92055A

RING-O

92055-1383

1

$3.27

In stock

92145

1

$263.68

In stock

92145A

SPRING,SHOCKABSORBER,K=5.1,WHT

92145-0015-EH

1
Out of stock

92145B

1

$263.68

In stock
