1980 Kawasaki KLX250 Rocker Arms/valves Diagram

← All diagrams

Find the part on the Rocker Arms/valves diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

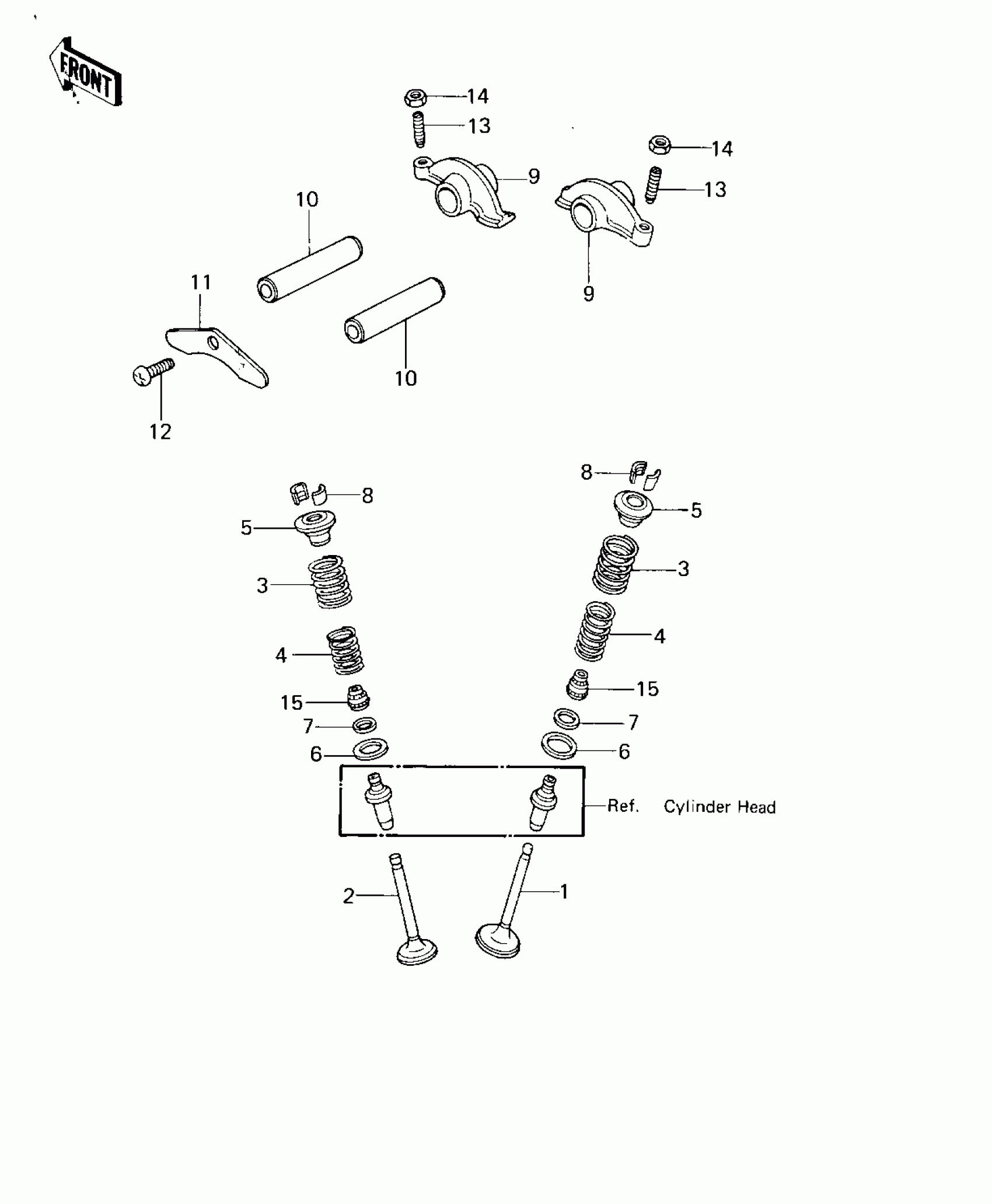

1980 Kawasaki KLX250 Rocker Arms/valves Diagram

#

Description
Price
Status
Order Qty

1

VALVE,INLET

12004-1006

Out of stock

2

VALVE,EXHAUST

12005-1005

$72.00

In stock

3

SPRING,OUTER VALVE

12007-013

$15.61

In stock

4

SPRING,INNER VALVE

12007-014

$15.61

In stock

5

$11.03

In stock

6

$7.95

In stock

7

SEAT,VLV INNER SPRING

12010-006

Out of stock

8

COLLET,RETAINER

12011-004

$4.34

In stock

9

ARM,ROCKER

12016-012

Out of stock

10

SHAFT,ROCKER ARM

12020-004

$13.78

In stock

11

PLATE,POSITIONING

14014-034

Out of stock

12

$1.32

In stock

13

SCREW,6MM

92013-009

Out of stock

14

NUT,6MM

92016-061

$3.72

In stock

15

SEAL-OIL,RV37129.5

92049-016

Out of stock
