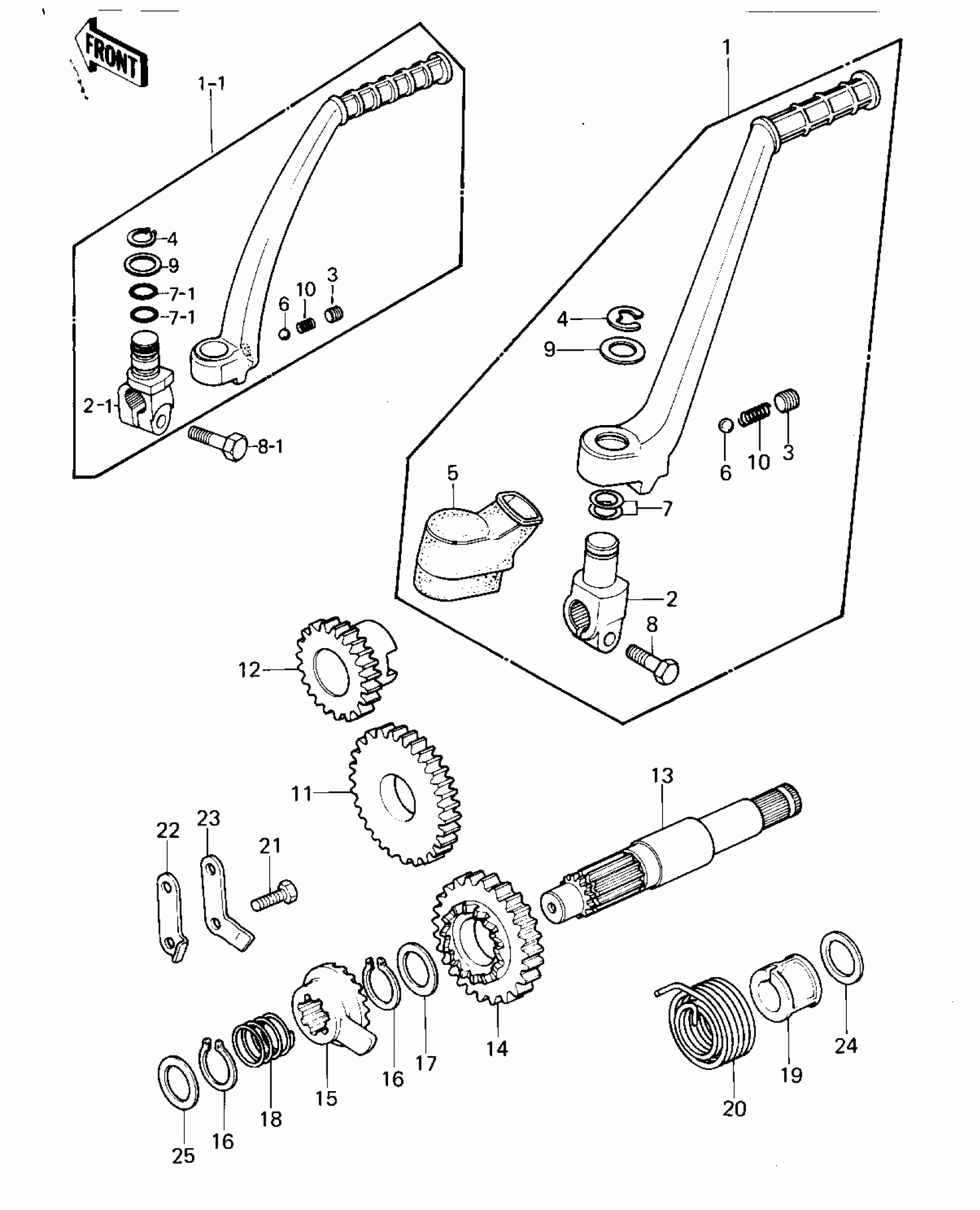

Find the part on the Kickstarter Mechanism diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,KICK

13064-1004

Out of stock

1-1

PEDAL ASSY,KICK

13064-1027

Out of stock

2

BOSS,KICKSTARTER

13061-1007

Out of stock

2-1

BOSS,KICK PEDAL

13061-5001

Out of stock

3

SCREW-SET-SOCKET,8X8

290Q0808

Out of stock

4

CIR CLIP

482K0100

Out of stock

5

BOOT,KICKSTARTER

49006-1006

Out of stock

6

BALL-STEEL,1/4

600A0800

Out of stock

7

O RING,15MM

670B2015

Out of stock

7-1

O RING,12MM

670B2012

Out of stock

8

BOLT,8X28

92001-1042

Out of stock

8-1

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock

9

WASHER,15.2X20X1

92022-1019

Out of stock

10

SPRING,KICK PEDAL

92081-020

Out of stock

11

IDLE GEAR,KICKSTARTER

13073-013

Out of stock

12

PINION,KICKSTARTER

13075-012

Out of stock

13

SHAFT,KICKSTARTER

13066-044

Out of stock

14

GEAR-COMP,KICKSTARTER

13216-1099

Out of stock

15

RATCHET

13078-1052

Out of stock

16

CIRCLIP-TYPE-C,16MM

480J1600

Out of stock

17

WASHER,16.8X22X0.5

92022-315

Out of stock

18

SPRING,RATCHET

92081-122

Out of stock

19

GUIDE,KICK SPRING

13070-011

Out of stock

20

SPRING,KICKSTARTER

92082-003

Out of stock

21

BOLT-UPSET

112G0618

Out of stock

22

STOPPER,KICKSTARTER

13072-017

Out of stock

23

GUIDE,KICK RATCHET

13206-1004

Out of stock

24

WASHER,18.5X23X1.2

92022-118

Out of stock

25

WASHER,12.3X20X0.5

92022-269

Out of stock
