1980 Kawasaki KLX250 Crankcase Diagram

← All diagrams

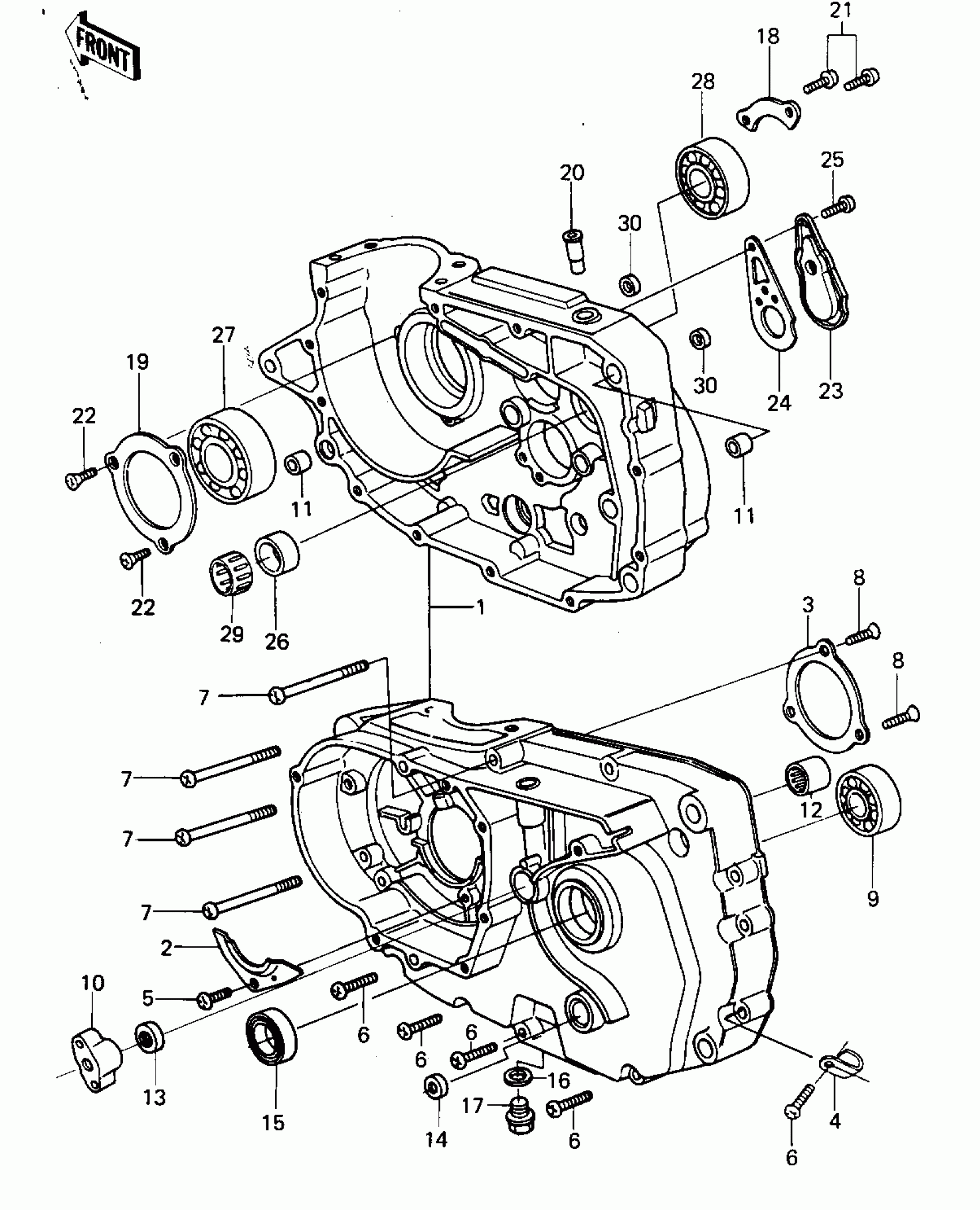

Find the part on the Crankcase diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

CRANKCASE SET,F.BLACK

14001-5034

Out of stock

2

PLATE,POSITIONING

14014-035

$4.61

In stock

3

$11.12

In stock

4

CLAMP,WIRING HARNESS

21126-008

Out of stock

5

SCREW-PAN-CROS,6X14

220B0614

Out of stock

6

SCREW PAN HEAD 6X30

220B0630

Out of stock

7

SCREW-PAN-CROS,6X75

220B0675

Out of stock

8

SCREW-CSK-CROS,6X16

221B0616

Out of stock

9

BEARING-BALL,#6205C3

601B6205

Out of stock

10

COLLAR,PUSH ROD

92027-1467

Out of stock

11

PIN,DOWEL,14X14

92042-032

Out of stock

12

BRG,NEEDLE,HMK1515B

92046-060

Out of stock

13

OIL SEAL,PUSH ROD

92050-077

Out of stock

14

SEAL-OIL

92050-082

Out of stock

15

SEAL-OIL,TC32457

92049-1159

Out of stock

16

GASKET,12X22X2

92065-097

Out of stock

17

PLUG,OIL DRAIN,12X15

92066-1174

Out of stock

18

PLATE-POSITION

14014-037

$4.08

In stock

19

$11.12

In stock

20

FITTING,BREATHER

14067-006

$19.78

In stock

21

SCREW-PAN-CROS,6X14

220B0614

Out of stock

22

SCREW-CSK-CROS,6X16

221B0616

Out of stock

23

CAP

16078-002

Out of stock

24

GASKET

16079-002

Out of stock

25

SCREW-PAN-CROS,6X14

220B0614

Out of stock

26

BUSHING,23X30X13

92028-132

Out of stock

27

BEARING-BALL,#6306

92045-037

Out of stock

28

BEARING,BALL#6006

92045-038

Out of stock

29

BEARING-NEEDLE

92046-1184

Out of stock

30

PLUG

92066-1282

Out of stock
