1980 Kawasaki KLX250 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

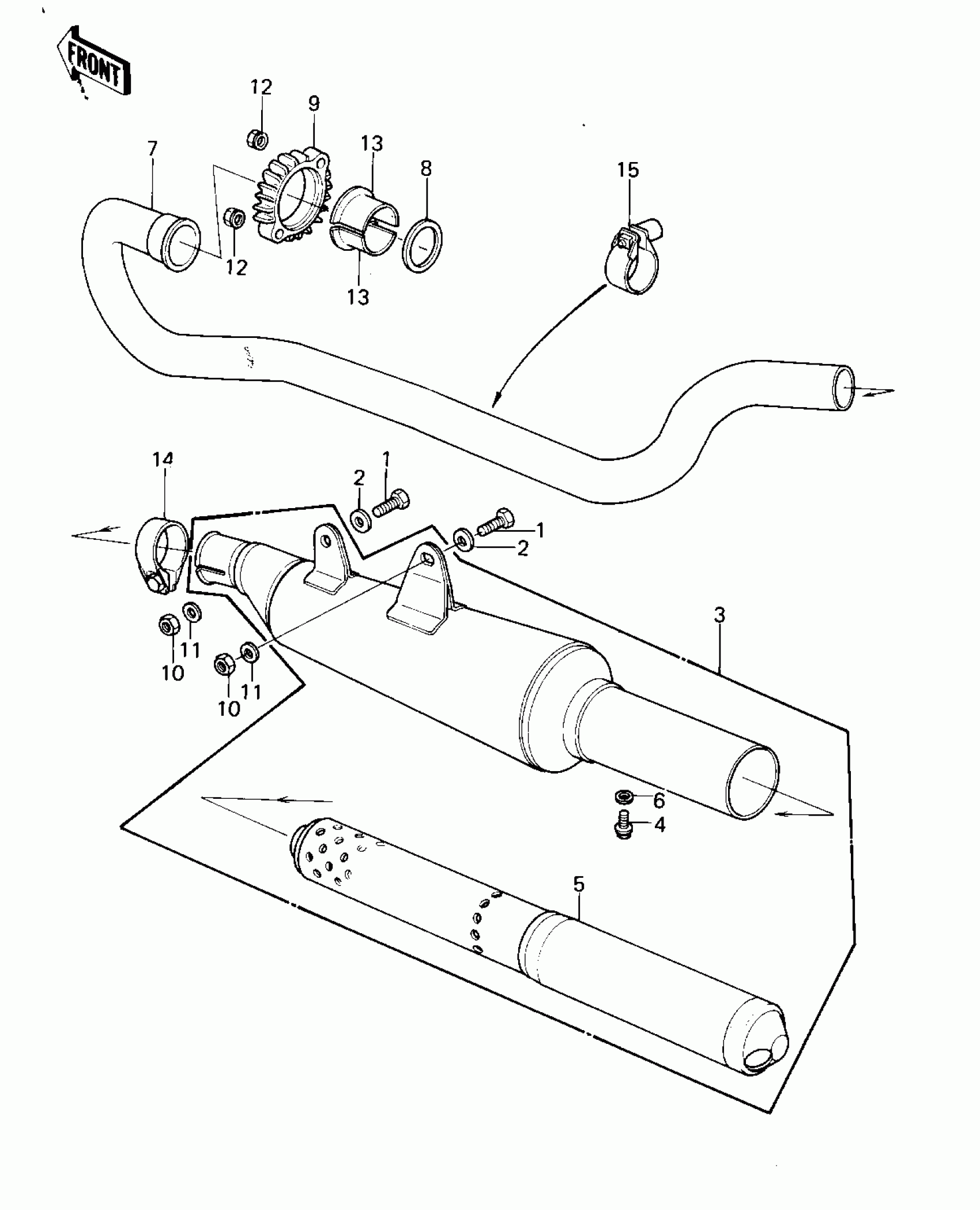

1980 Kawasaki KLX250 Muffler Diagram

#

Description
Price
Status
Order Qty

1

BOLT,8X20

115G0820

Out of stock

2

WASHER PLAIN 8MM

410B0800

Out of stock

3

MUFFLER,BLACK

18001-1326

Out of stock

4

BOLT-FLANGED,6X8

130B0608

Out of stock

5

BAFFLE PIPE,MUFFLER

49099-1021

Out of stock

6

WASHER OIL PUMP BANJO

92022-077

Out of stock

7

PIPE-EXHAUST,MUFFLER

18049-1096

Out of stock

8

GASKET,EXHAUST PIPE H

11009-1866

Out of stock

9

HOLDER,EXHAUST PIPE

18069-1006

Out of stock

1

NUT,8MM

311B0800

Out of stock

11

WASHER PLAIN 8MM

410B0800

Out of stock

12

NUT,FLANGED,6MM

92015-1078

Out of stock

13

INSERT,EXHAUST PIPE

92027-278

Out of stock

14

CLAMP,PIPE,35MM

92037-1223

Out of stock

15

CLAMP,EXHAUST PIPE

92037-1144

Out of stock

16

WASHER SPRING 8MM

461F0800

Out of stock

17

BOLT-SMALL-UPSET

115G0845

Out of stock
