1980 Kawasaki KLX250 Crankshaft/piston Diagram

← All diagrams

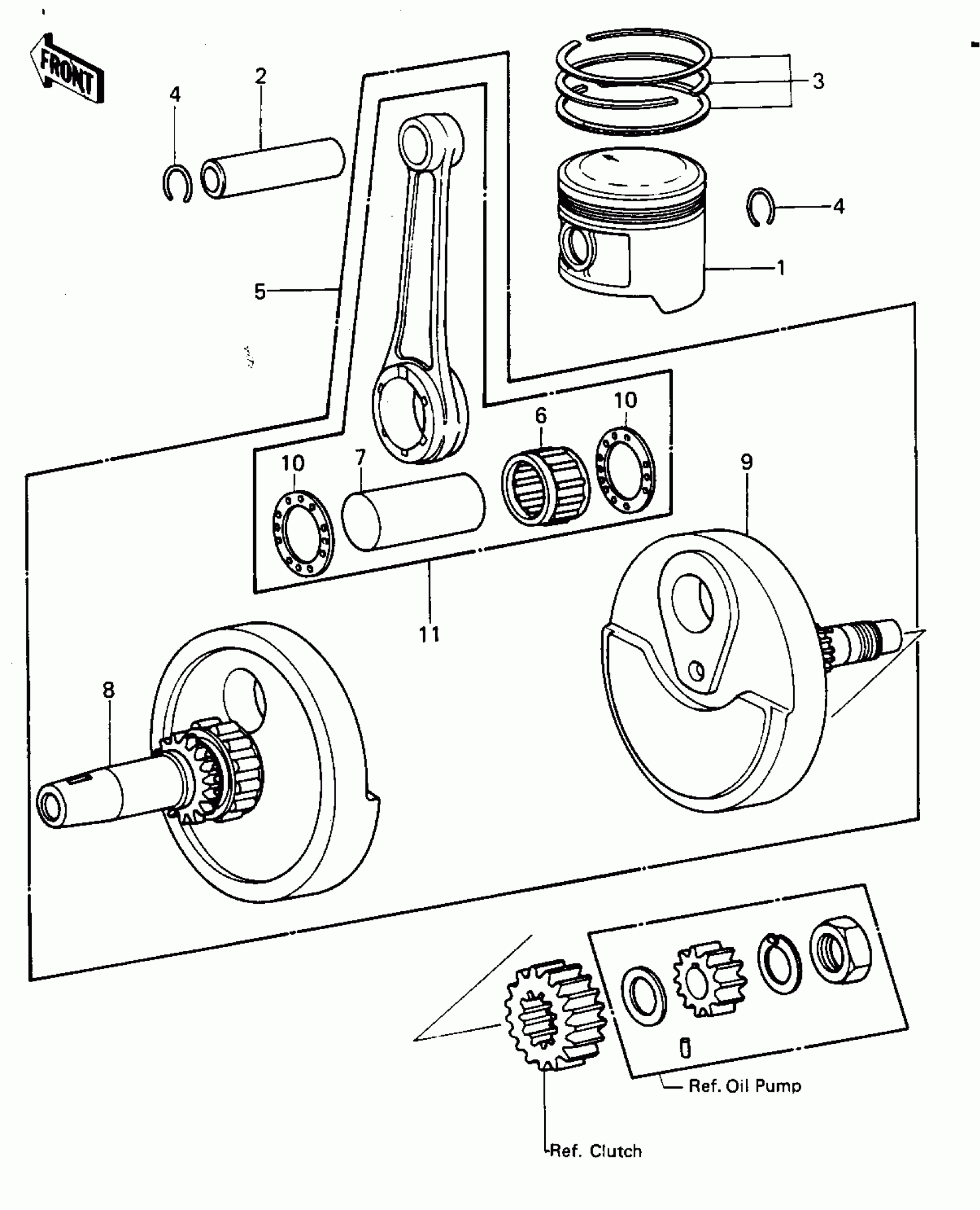

Find the part on the Crankshaft/piston diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Crankshaft/piston Diagram

#

Description
Price
Status
Order Qty

1

PISTON,S.T.D

13001-1005

Out of stock

1

PISTON,0.020 O/S

13029-1003

Out of stock

1

PISTON,0.040 O/S

13027-1005

Out of stock

2

PIN-PISTON

13002-022

Out of stock

3

RING SET,STD

13008-5012

Out of stock

3

RING SET,0.020"O/S

13025-5007

Out of stock

3

RING SET,0.040"O/S

13024-5008

Out of stock

4

CIRCLIP,PISTON PIN

92036-021

Out of stock

5

CRANK-CONROD ASSY

13031-1001

Out of stock

6

BRG,NEEDLE PK293921.4

13034-031

Out of stock

7

PIN,CRANK

13035-035

Out of stock

8

CRANKSHAFT,L.H.

13037-5002

Out of stock

9

CRANKSHAFT,R.H.

13037-1003

Out of stock

10

SPACER,29.1X47.5X1.2

92026-087

Out of stock

11

CONNECTING ROD SET

13044-5005

Out of stock
