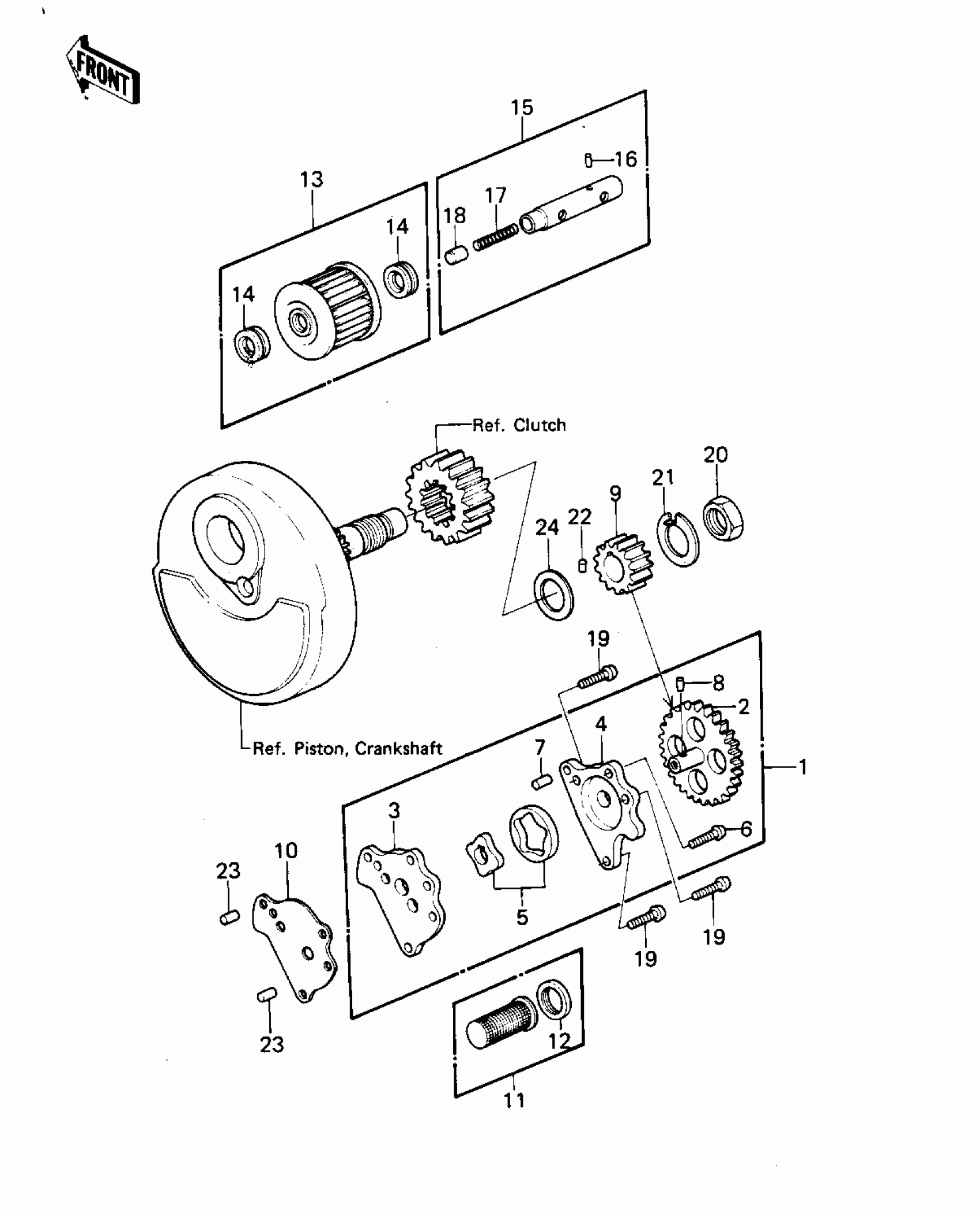

Find the part on the Oil Pump/oil Filter diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Oil Pump/oil Filter Diagram

#

Description
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-066

Out of stock

2

GEAR,OIL PUMP

16085-026

Out of stock

3

BODY,OIL PUMP

16141-006

Out of stock

4

COVER,OIL PUMP

16142-006

Out of stock

5

ROTOR,OIL PUMP

16154-5001

Out of stock

6

SCREW-PAN-CROS,6X14

220B0614

Out of stock

7

PIN-DOWEL,6X8

551A0608

Out of stock

8

PIN,DOWEL,4X12.8

92042-041

Out of stock

9

GEAR,OIL PUMP

16084-018

Out of stock

10

GASKET,OIL PUMP

11060-1115

Out of stock

11

FILTER-ASSY-OIL

16097-1001

Out of stock

12

GROMMET,OIL STRAINER

92071-100

Out of stock

13

ELEMENT-OIL FILTER

16099-004

Out of stock

14

GROMMET,OIL FILTER

92071-101

Out of stock

15

PISTON-ASSY,VALVE,BY-PASS

16156-002

Out of stock

16

PIN,SPRING,2.2X13.5

92043-123

Out of stock

17

SPRING,PISTON

92081-043

Out of stock

18

VALVE

92136-002

Out of stock

19

SCREW PAN HEAD 6X25

220B0625

Out of stock

20

NUT-HEX-FINE,16MM

315B1600

Out of stock

21

WASHER-CLAW,16MM

420B1611

Out of stock

22

PIN DOWEL 3X12

551A0312

Out of stock

23

PIN-DOWEL,6X8

551A0608

Out of stock

24

WASHER,THRUST,16.5X28X1

92022-170

Out of stock
