1980 Kawasaki KLX250 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

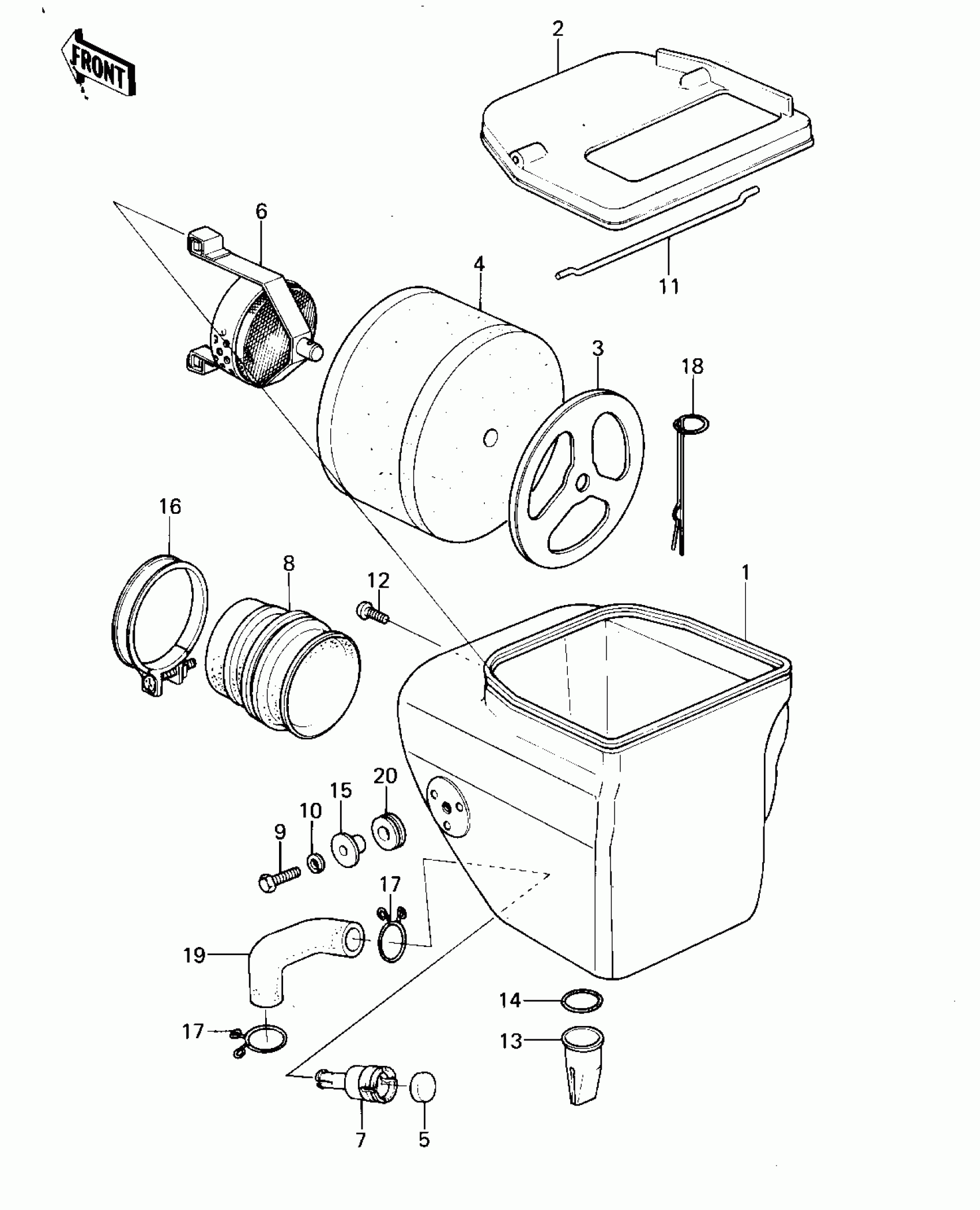

1980 Kawasaki KLX250 AIR Cleaner Diagram

#

Description
Price
Status
Order Qty

1

CASE-AIR FILTER

11011-5003

Out of stock

2

CAP,AIR CLEANER

11012-1090

Out of stock

3

CAP,CLEANER ELEMENT

11012-1093

Out of stock

4

ELEMENT,AIR CLNR

11013-1022

Out of stock

5

ELEMENT,AIR CLNR

11013-1026

Out of stock

6

BRACKET,CLEANER ELMNT

11034-1562

Out of stock

7

HOLDER,BREATHER ELMNT

13091-1060

Out of stock

8

DUCT,AIR CLEANER

14073-1028

Out of stock

9

BOLT-UPSET,6X20

112G0620

Out of stock

10

WASHER SPRING 6MM

461F0600

Out of stock

11

BAR,AIR CLEANER CAP

16149-1007

Out of stock

12

SCREW PAN HEAD 6X12

220B0612

Out of stock

13

BOOT

49006-1012

Out of stock

14

O RING,20MM

670B2020

Out of stock

15

COLLAR

92027-194

Out of stock

16

CLAMP,AIR FILTER

92037-171

Out of stock

17

CLAMP,TUBE

92037-213

Out of stock

18

COTTER,AIR CLEANER

92041-1001

Out of stock

19

TUBE,BREATHER

92059-1004

Out of stock

20

DAMPER RUBBER

92075-076

Out of stock
