1980 Kawasaki KLX250 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

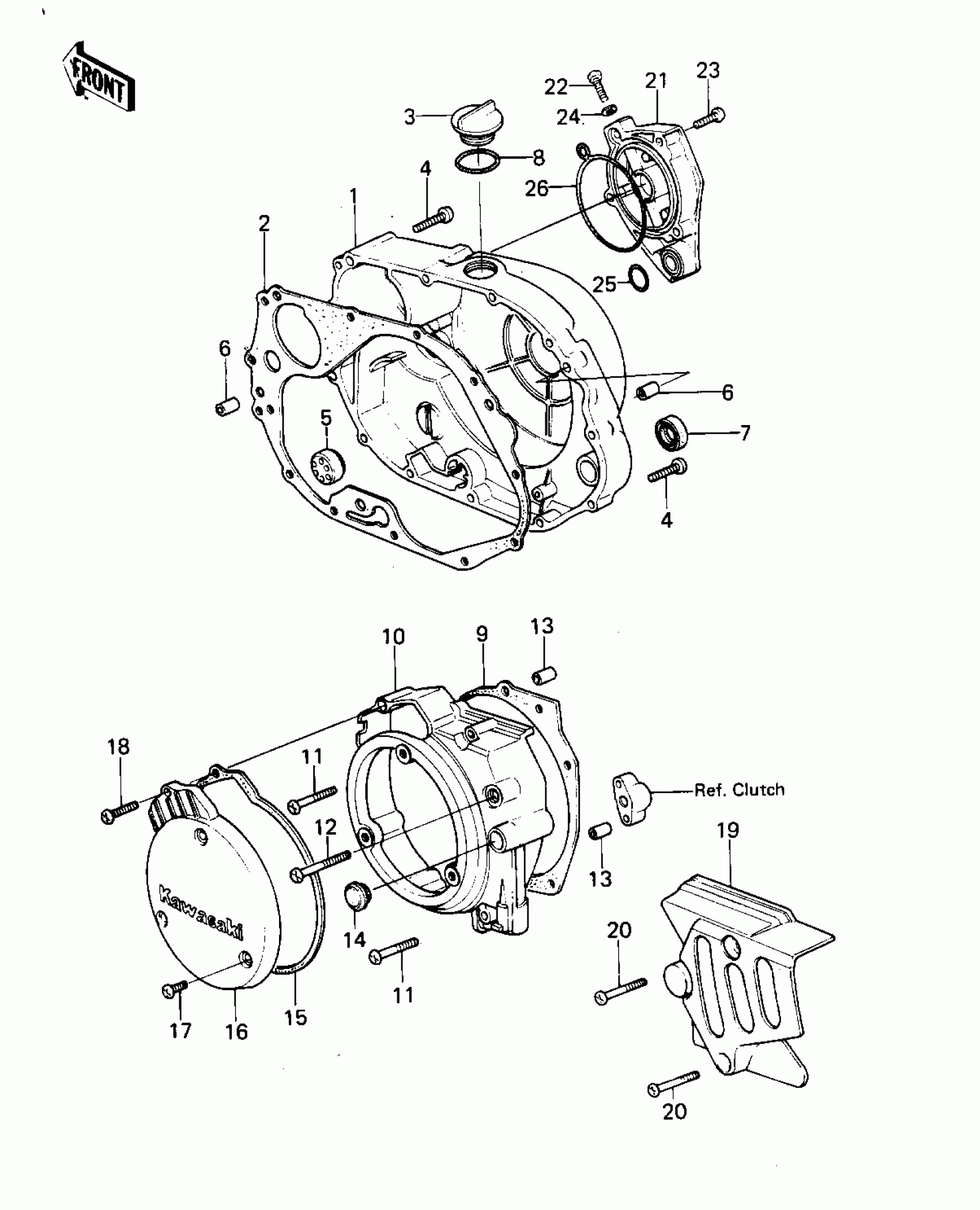

1980 Kawasaki KLX250 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

COVER,R.H.ENG,F.BLACK

14032-1036

Out of stock

2

GASKET,ENGINE COV,RH

11009-1235

Out of stock

3

CAP-OIL FILLER

16115-013

Out of stock

4

SCREW PAN HEAD 6X30

220B0630

Out of stock

5

GAUGE,OIL LEVEL

52015-004

Out of stock

6

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

7

SEAL-OIL

92050-078

Out of stock

8

RING-O,31.5X2.6

92055-049

Out of stock

9

GASKET,L.H,ENGINE COV

11009-1009

Out of stock

10

COVER,GENERATOR,F.BLK

14031-1033

Out of stock

11

SCREW PAN HEAD 6X40

220B0640

Out of stock

12

SCREW PAN HEAD 6X50

220B0650

Out of stock

13

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

14

PLUG

92066-065

Out of stock

15

GASKET,GENERATOR COV

11009-1121

Out of stock

16

COVER,GENERATOR,F.BLK

14025-1104

Out of stock

17

SCREW-PAN-CROS,6X14

220B0614

Out of stock

18

SCREW PAN HEAD 6X25

220B0625

Out of stock

19

COVER,CHAIN,BLACK

14026-1022

Out of stock

20

SCREW PAN HEAD 6X50

220B0650

Out of stock

21

COVER,FILTER,F.BLACK

14025-1102

Out of stock

22

BOLT HEX HEAD 6X8

110B0608

Out of stock

23

SCREW PAN HEAD 6X25

220B0625

Out of stock

24

WASHER,6.2X11X1

92022-304

Out of stock

25

RING-O

92055-098

Out of stock

26

"0" RING,FILTER COVER

92055-1048

Out of stock
