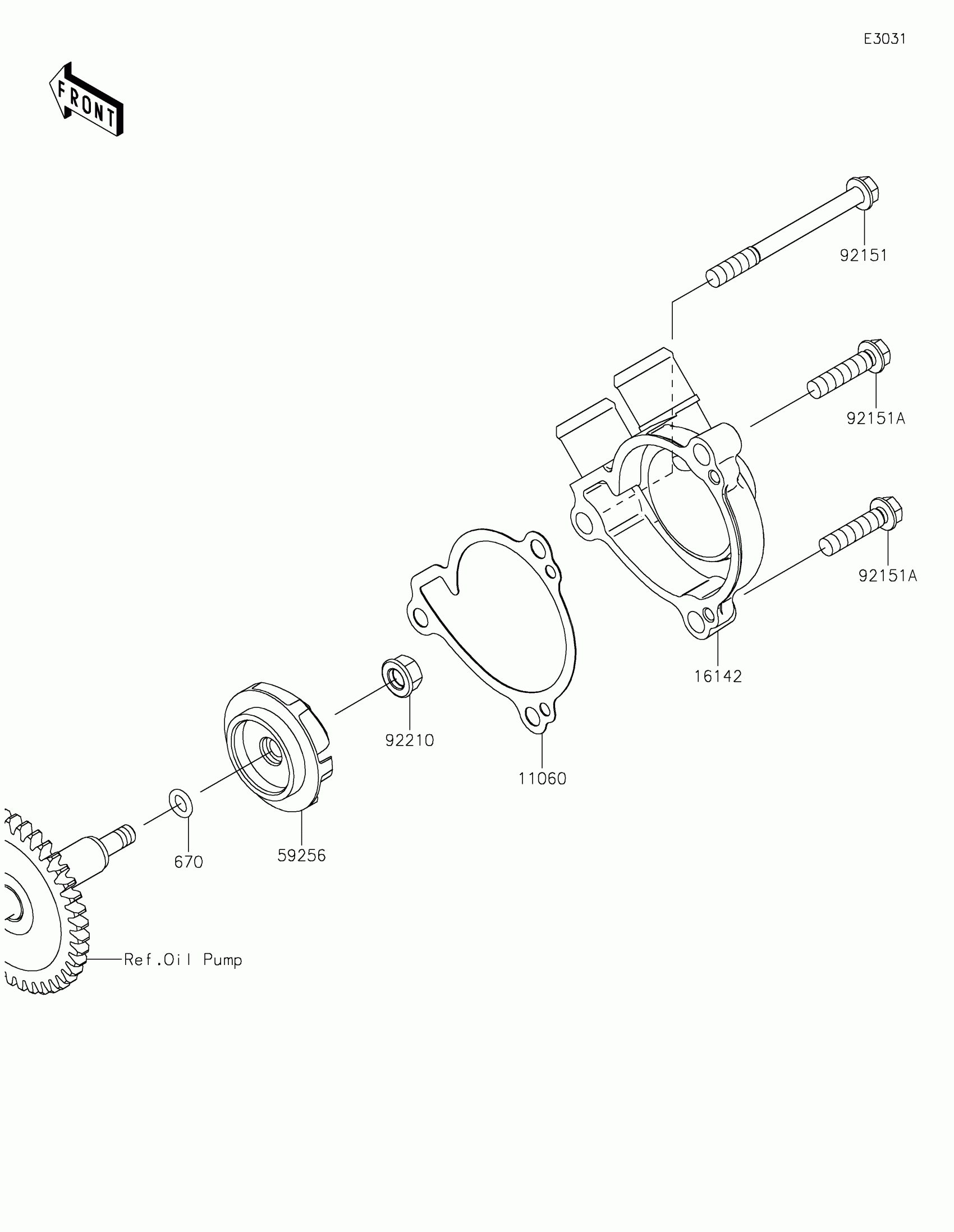

Find the part on the Water Pump diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,PUMP COVER

11060-1328

1

$3.94

In stock

16142

COVER-PUMP

16142-0758

1

$77.09

In stock

59256

IMPELLER

59256-1063

1

$33.92

In stock

670

O RING,6MM

670B1506

1

$1.14

In stock

92151

BOLT,6X65

92151-1199

1

$4.32

In stock

92151A

1

$2.06

In stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock
