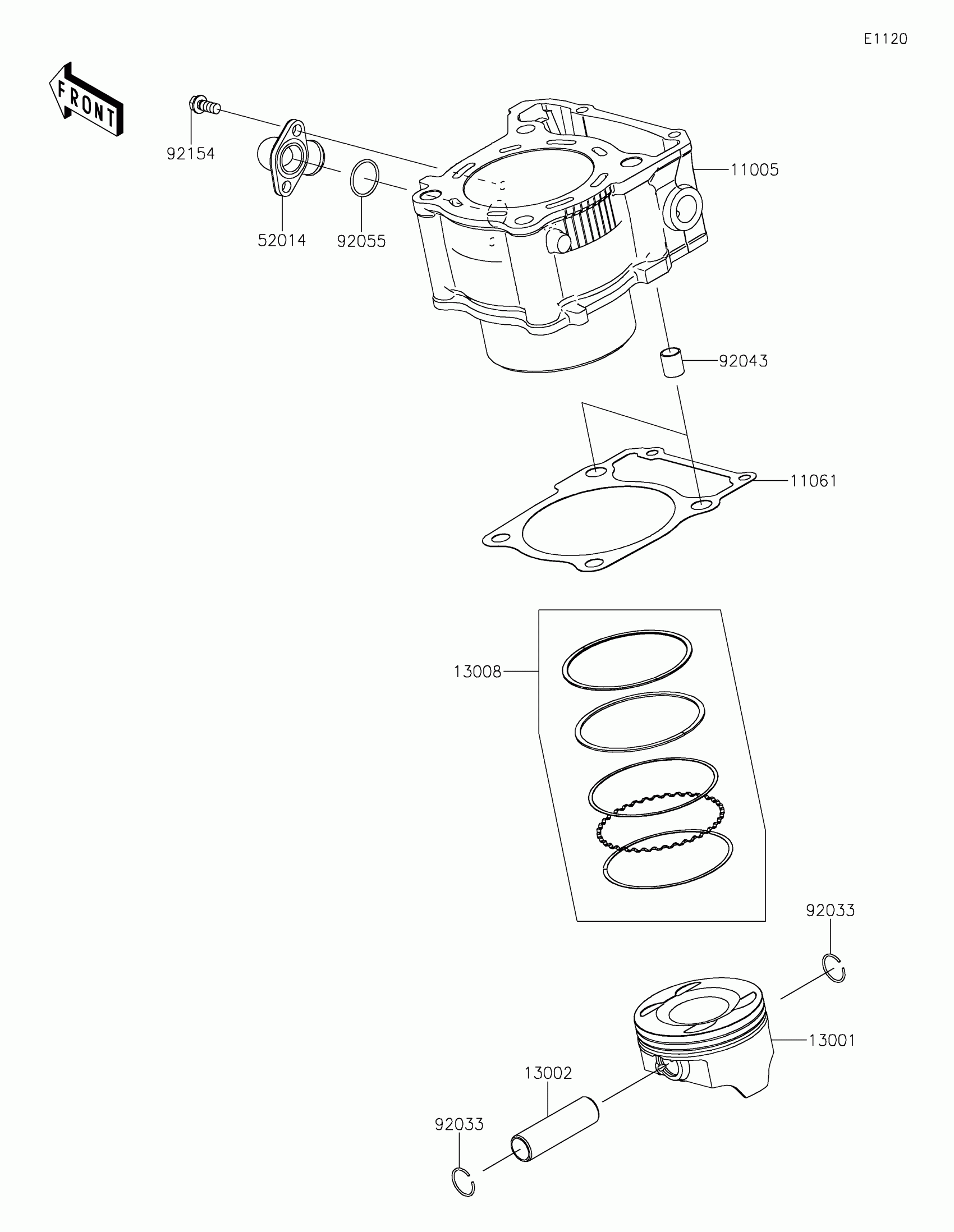

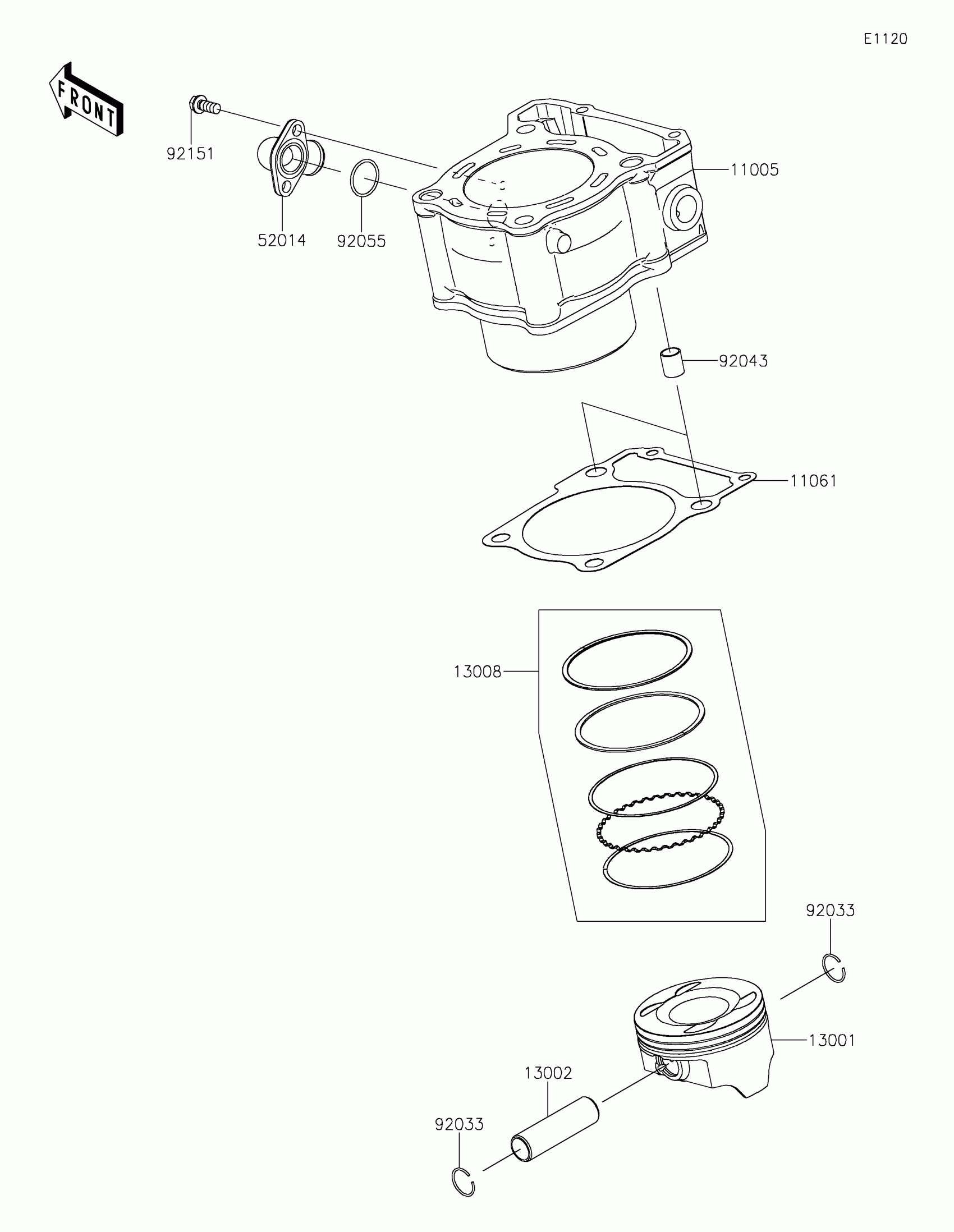

Kawasaki KLX®300R Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-0709

$708.31

11061

GASKET,CYLINDER BASE

11061-1307

$9.03

13001

PISTON-ENGINE

13001-0811

$104.26

13002

PIN-PISTON

13002-1109

$21.17

13008

RING-SET-PISTON,STD

13008-1071

$77.27

52014

ELBOW

52014-0026

$32.75

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,19.5X1.5

92055-055

$3.29

92151

BOLT,6X14

92151-1423

$0.76
