2020 Kawasaki KLX®300R Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

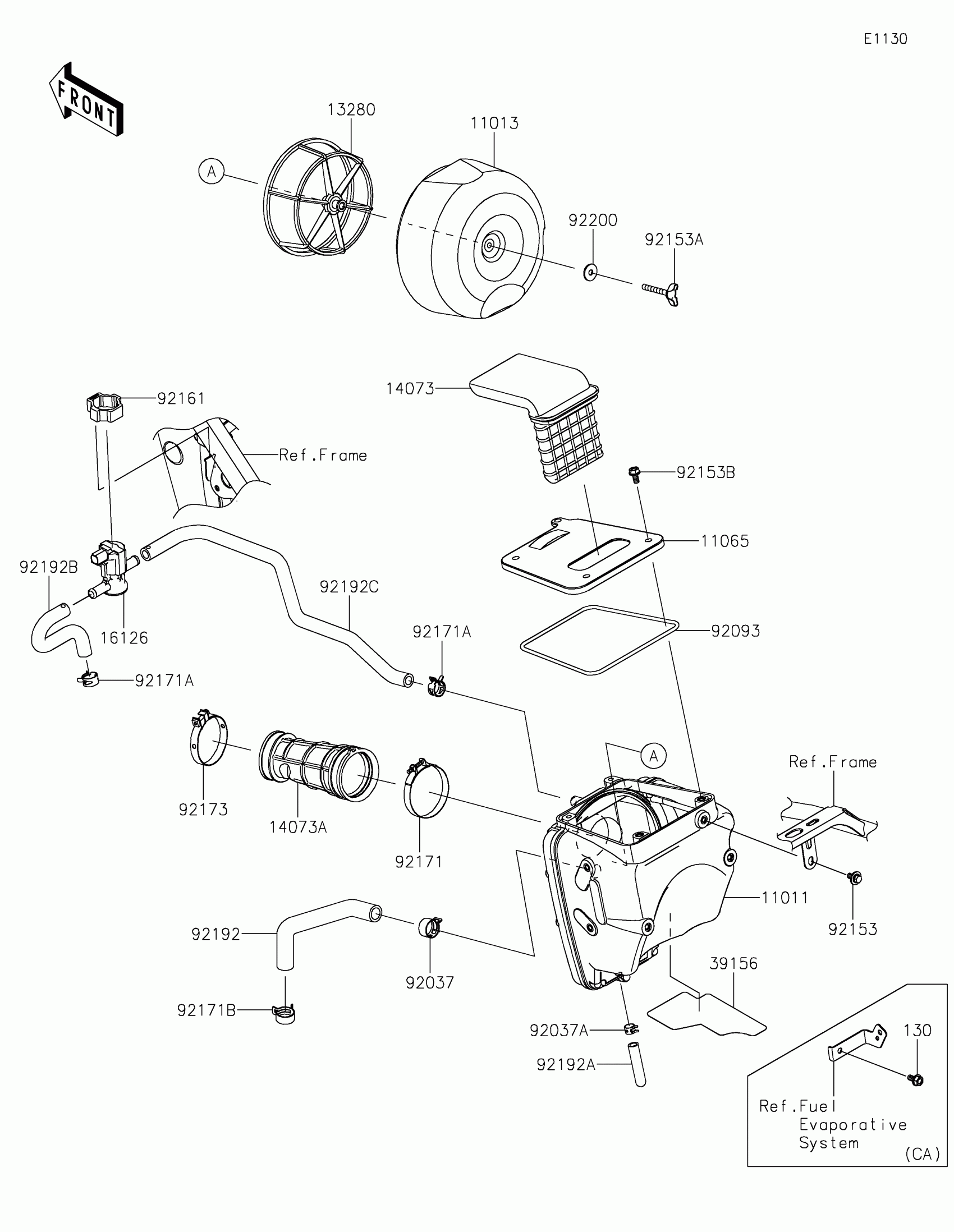

2020 Kawasaki KLX®300R Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-0907

1

$145.57

In stock

11013

ELEMENT-AIR FILTER

11013-0030

1

$45.32

In stock

11065

CAP,AIR FILTER

11065-0232

1

$30.79

In stock

130

BOLT-FLANGED,6X12

130BC0612

1

$0.86

In stock

13280

HOLDER

13280-0263

1

$55.87

In stock

14073

DUCT,INTAKE

14073-0185

1

$54.09

In stock

14073A

DUCT,A/C-THROBO

14073-0927

1

$30.70

In stock

16126

VALVE,AIR SWITCHING

16126-0033

1

$86.26

In stock

39156

PAD,A/F CASE

39156-2429

1

$37.40

In stock

92037

CLAMP

92037-1860

1
Out of stock

92037A

CLAMP

92037-2113

1

$0.97

In stock

92093

SEAL,4X535

92093-0102

1

$12.44

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,WING,6X45

92153-1921

1

$7.76

In stock

92153B

BOLT,FLANGED,6X12

92153-1922

1

$2.10

In stock

92161

DAMPER,ASWV

92161-0499

1

$7.15

In stock

92171

CLAMP,62MM

92171-1687

1

$8.25

In stock

92171A

CLAMP

92171-1888

1

$2.58

In stock

92171B

CLAMP

92171-1890

1

$9.10

In stock

92173

CLAMP,58MM

92173-0927

1

$13.63

In stock

92192

TUBE,BREATHER

92192-0594

1
Out of stock

92192A

TUBE,A/C-DRAIN

92192-0921

1
Out of stock

92192B

TUBE,CAP-ASWV

92192-2266

1

$9.10

In stock

92192C

TUBE,ASWV-A/F CASE

92192-2273

1

$18.29

In stock

92200

WASHER,6.5X20X1.6

92200-0411

1
Out of stock
